Grundfos CRN 1S-9 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 92900135 (1 x 220-230V)
📢 For orders over $100, FREE Shipping Australia-wide

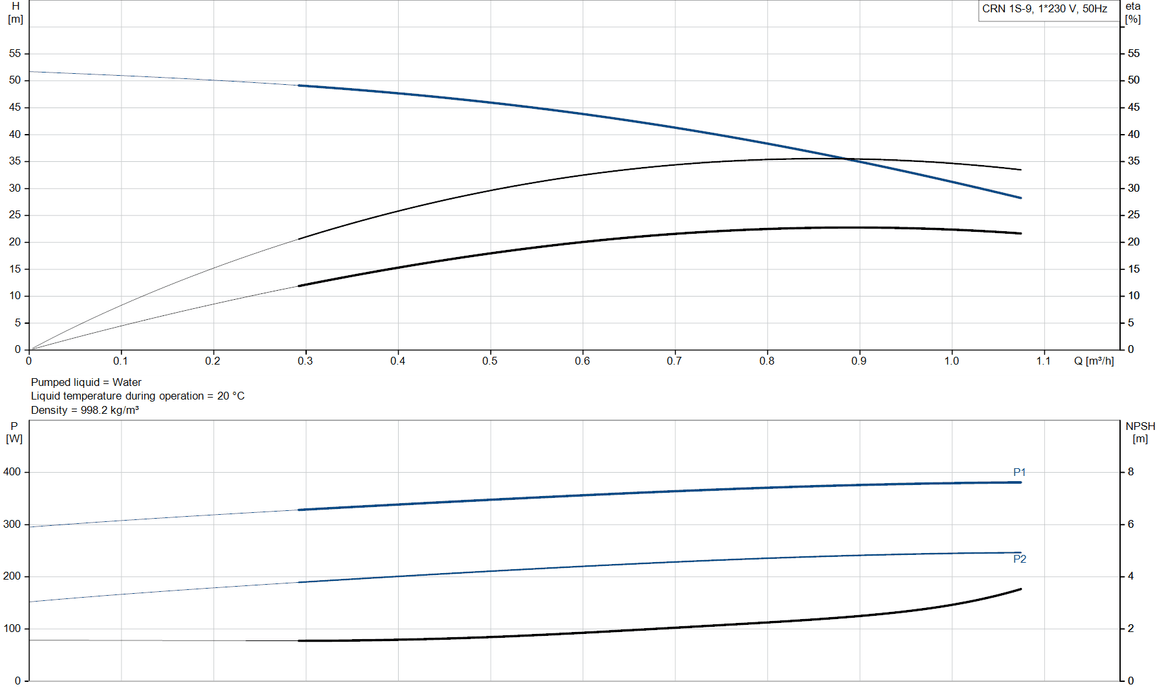

The Grundfos CRN 1S-9 A-FGJ-A-V-HQQV is a vertical multistage centrifugal inline pump engineered for pressure boosting, water supply, and industrial liquid transfer applications. All wetted pump components are constructed from high-grade stainless steel (EN 1.4401 / AISI 316) to provide superior corrosion resistance and durability in demanding environments. The pump delivers a rated flow of 0.9 m³/h with a rated head of 39.3 m and a maximum head of 52.5 m. It is equipped with a robust HQQV single mechanical shaft seal and combined DIN / ANSI / JIS flange connections rated PN25 (300 lb). The unit is driven by a reliable 0.37 kW single-phase IEC asynchronous motor with IP55 enclosure protection and IE2 efficiency class.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating and cooling
- Industrial water supply
- Industrial wastewater treatment
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation systems
- Solar water solutions
- Community water supply
- Rotor and spray irrigation
- Groundwater transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Solar water treatment, fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 1S-9 A-FGJ-A-V-HQQV |
| Product Number | 92900135 |
| EAN | 5715121264075 |
| Pump Type | Vertical Multistage Centrifugal |
| Rated Flow | 0.9 m³/h |
| Rated Head | 39.3 m |
| Maximum Head | 52.5 m |
| Pump Speed | 2757 rpm |
| Stages / Impellers | 9 / 9 |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32 (1 1/4") DIN / ANSI / JIS Flanges, PN25, 300 lb |
| Base Material | Stainless Steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless Steel EN 1.4401 / AISI 316 |
| Bearing | SIC |

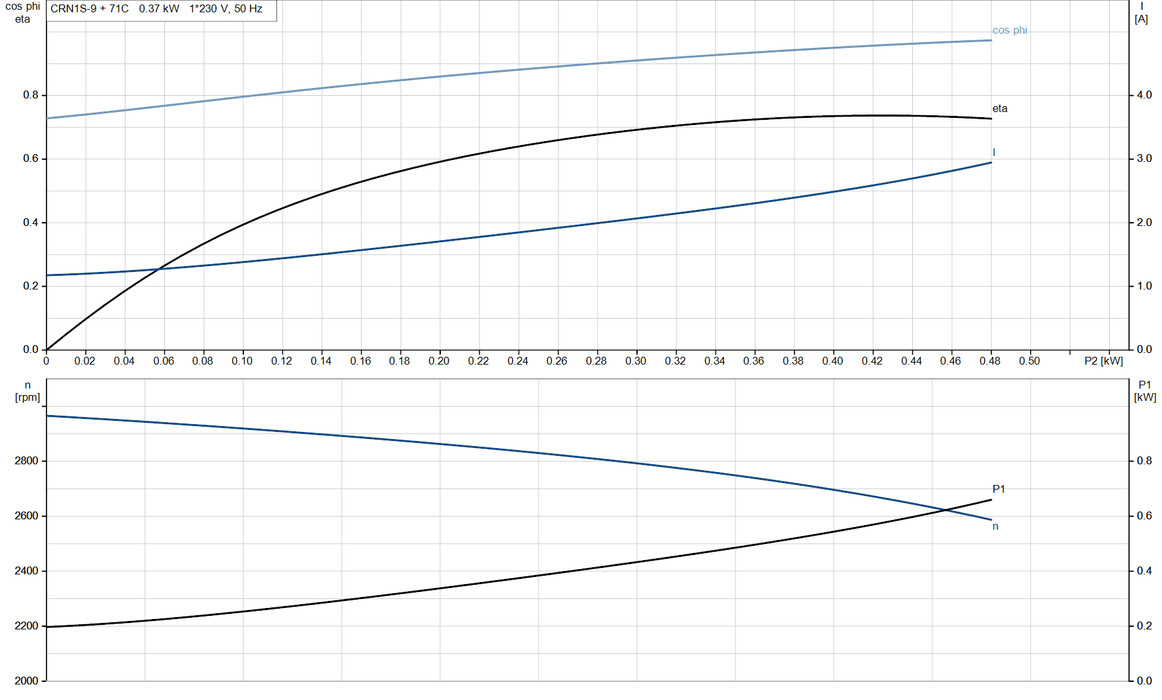

| Motor Power (P2) | 0.37 kW |
| Voltage | 1 x 220–230 V |
| Frequency | 50 Hz |
| Rated Current | 2.60–2.50 A |
| Motor Efficiency Class | IE2 |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.54 |
| Net Weight | 26 kg |
| Gross Weight | 28.6 kg |
| Shipping Volume | 0.094 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Grundfos CRN 1S-9 Product Datasheet | Download PDF |
