Grundfos CRN 15-17 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96502060 (3 x 380-415D/660-690YD)
by Grundfos
SKU 96502060
Original price
$13,087.25
-
Original price
$13,087.25
Original price
$13,087.25
$13,087.25
-
$13,087.25
Current price
$13,087.25
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRN 15-17 A-FGJ-A-V-HQQV is a vertical, non-self-priming, multistage in-line centrifugal pump, ideal for demanding commercial, industrial, and water treatment applications. Its high-grade AISI 316 stainless steel wetted parts provide excellent corrosion resistance and reliable performance for pressure boosting, irrigation, HVAC systems, and process water handling.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis / water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 15-17 A-FGJ-A-V-HQQV |
| Product Number | 96502060 |
| EAN | 5700396234663 |
| Pump Type | Vertical multistage centrifugal pump |

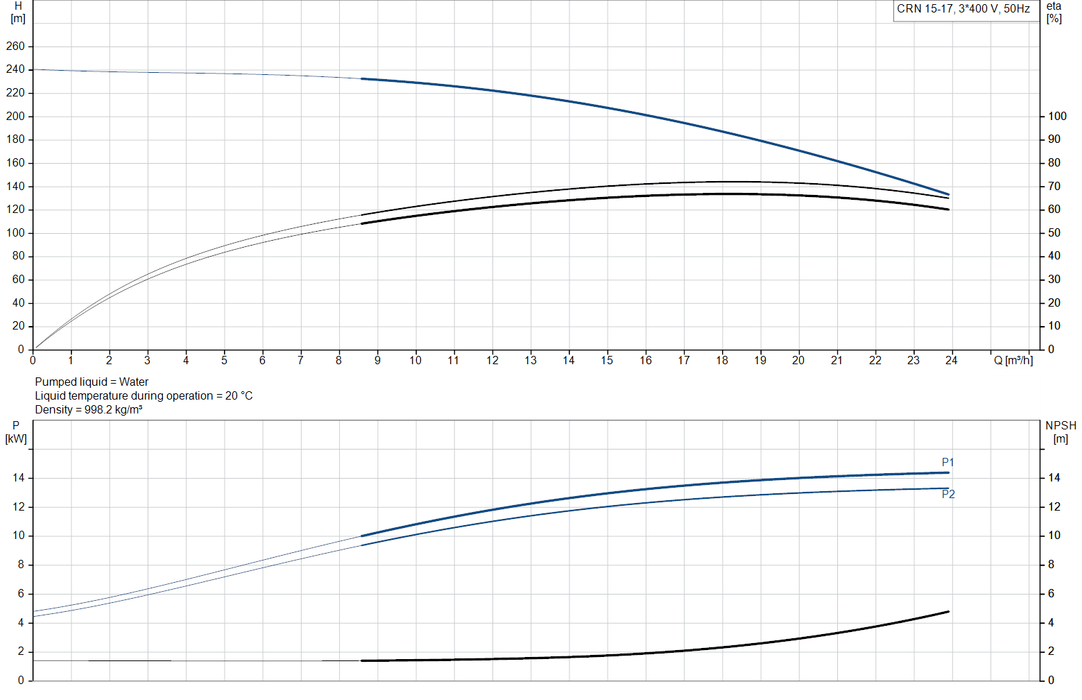

| Rated Flow | 17 m³/h |
| Rated Head | 191.9 m |
| Maximum Head | 239 m |
| Pump Speed | 2923 rpm |
| Stages | 17 |
| Impellers | 17 |
| Reduced-Diameter Impellers | 0 |
| Low NPSH | No |
| Pump Orientation | Vertical |
| Pump Version | A |
| Shaft Seal Arrangement | Single |
| Shaft Seal | HQQV |
| Curve Tolerance | ISO9906:2012 3B |
| Approvals | CE, EAC, UKCA, SEPRO |
| Drinking Water Approvals | WRAS, ACS |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 °C to 90 °C |
| Selected Liquid Temperature | 20 °C |
| Liquid Density | 998.2 kg/m³ |
| Maximum Operating Pressure | 25 bar |
| Max Pressure at Stated Temperature | 25 bar / 90 °C, 25 bar / -20 °C |
| Maximum Ambient Temperature | 60 °C |
| Connection Type | DIN / ANSI / JIS |
| Connection Code | FGJ |
| Inlet Connection | DN 50 (2 inch) |
| Outlet Connection | DN 50 (2 inch) |
| Pressure Rating | PN 25 |
| Flange Rating Inlet | 300 lb |
| Flange Size for Motor | FF300 |
| Base Material | Stainless steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless steel (EN 1.4401 / AISI 316) |
| Bearing | SIC |
| Rubber Components | FKM |

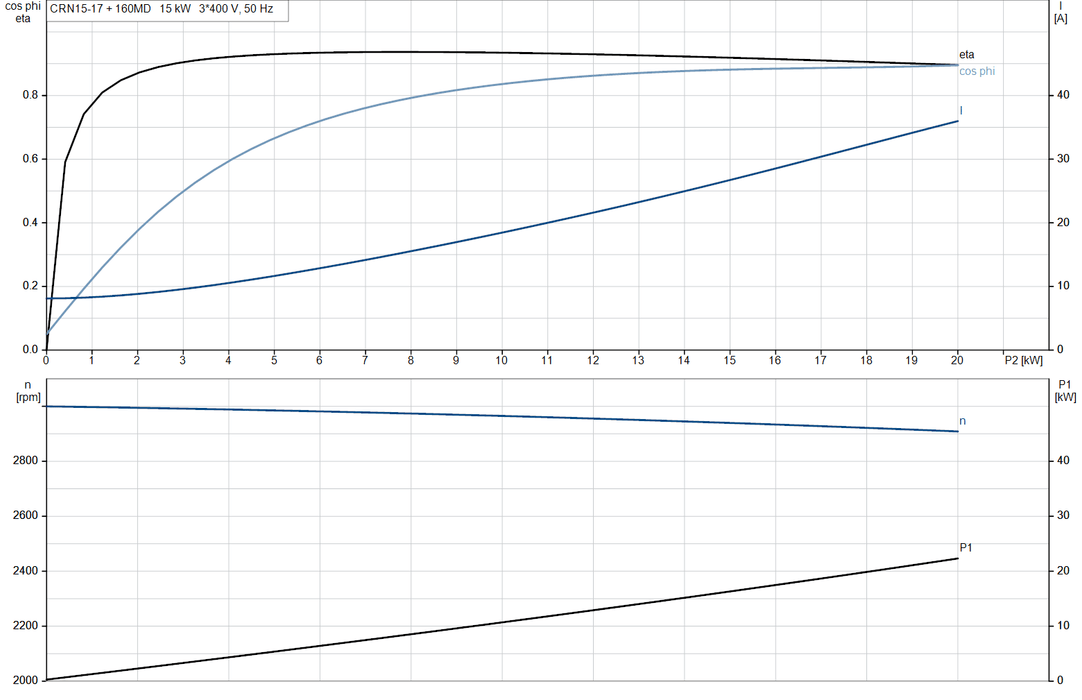

| Motor Standard | IEC |
| Motor Type | 160MD |
| Motor Power (P2) | 15 kW |
| Required Power (P2) | 15 kW |
| Voltage | 3 x 380-415D / 660-690Y V |
| Frequency | 50 Hz |
| Rated Current | 28.0-26.0 / 16.2-15.6 A |
| Starting Current | 660-780 % |
| Power Factor (Cos φ) | 0.89-0.87 |
| Rated Speed | 2930-2950 rpm |
| Poles | 2 |
| Motor Efficiency Class | IE3 |
| Motor Efficiency at Full Load | 91.9 % |
| Motor Efficiency at 3/4 Load | 92.4-92.7 % |
| Motor Efficiency at 1/2 Load | 92.4-92.3 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Built-in Motor Protection | PTC |
| Motor Number | 85U17526 |
| Terminal Box Position | 6 |
| Frequency Converter | None |
| Minimum Efficiency Index (MEI) | ≥ 0.70 |
| Net Weight | 170 kg |
| Gross Weight | 201 kg |
| Shipping Volume | 0.619 m³ |
| Country of Origin | TW |
| Custom Tariff No. | 84137090621436561 |
Documentation & Downloads
| Document | Link |
| Product Datasheet / Technical PDF | Download PDF |
