Grundfos CRN 15-14 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96502059 (3 x 380-415D/660-690YD)
by Grundfos
SKU 96502059
Original price
$10,281.56
-
Original price
$10,281.56
Original price
$10,281.56
$10,281.56
-
$10,281.56
Current price
$10,281.56
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRN 15-14 A-FGJ-A-V-HQQV is a vertical, non-self-priming, multistage in-line centrifugal pump designed for demanding commercial, industrial, and water treatment applications. Built with high-grade AISI 316 stainless steel wetted parts, this pump offers excellent corrosion resistance, reliable pressure boosting, and efficient operation for clean water transfer, HVAC systems, irrigation, and process liquid handling.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis / water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 15-14 A-FGJ-A-V-HQQV |
| Product Number | 96502059 |
| EAN | 5700396234649 |
| Pump Type | Vertical multistage centrifugal pump |

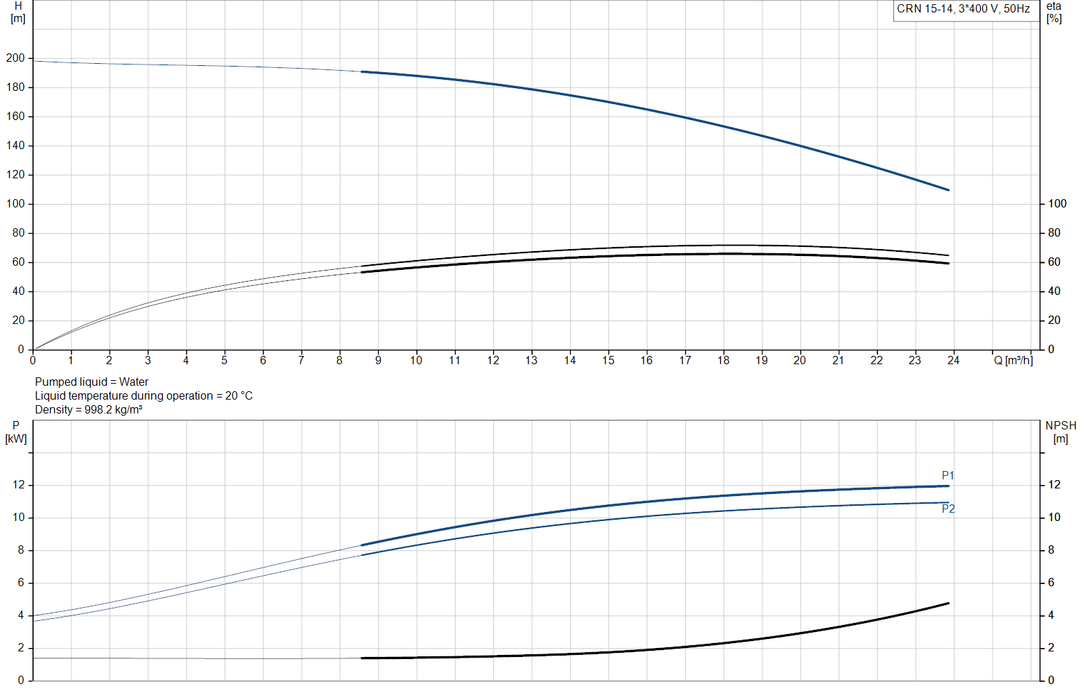

| Rated Flow | 17 m³/h |
| Rated Head | 156.9 m |
| Maximum Head | 197 m |
| Pump Speed | 2924 rpm |
| Stages | 14 |
| Impellers | 14 |
| Reduced-Diameter Impellers | 0 |
| Low NPSH | No |
| Pump Orientation | Vertical |
| Pump Version | A |
| Shaft Seal Arrangement | Single |
| Shaft Seal | HQQV |
| Curve Tolerance | ISO9906:2012 3B |
| Approvals | CE, EAC, UKCA, SEPRO |
| Drinking Water Approvals | WRAS, ACS |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 °C to 90 °C |
| Selected Liquid Temperature | 20 °C |
| Liquid Density | 998.2 kg/m³ |
| Maximum Operating Pressure | 25 bar |
| Max Pressure at Stated Temperature | 25 bar / 90 °C, 25 bar / -20 °C |
| Maximum Ambient Temperature | 60 °C |
| Connection Type | DIN / ANSI / JIS |
| Connection Code | FGJ |
| Inlet Connection | DN 50 (2 inch) |
| Outlet Connection | DN 50 (2 inch) |
| Pressure Rating | PN 25 |
| Flange Rating Inlet | 300 lb |
| Flange Size for Motor | FF300 |
| Base Material | Stainless steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless steel (EN 1.4401 / AISI 316) |
| Bearing | SIC |
| Rubber Components | FKM |

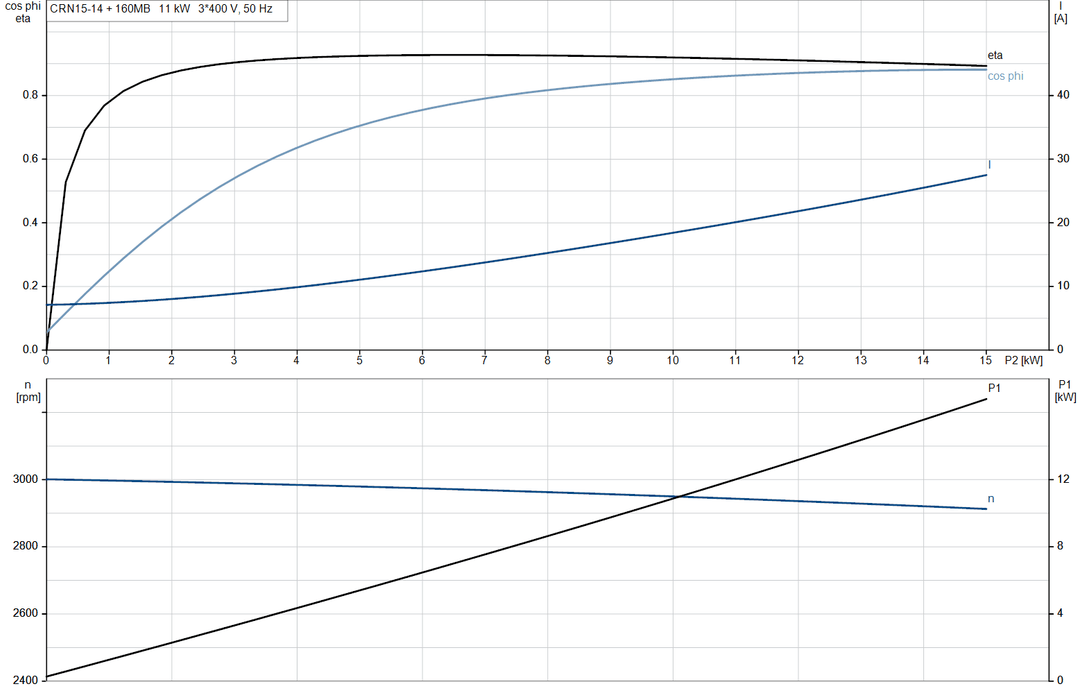

| Motor Standard | IEC |
| Motor Type | 160MB |
| Motor Power (P2) | 11 kW |
| Required Power (P2) | 11 kW |
| Voltage | 3 x 380-415D / 660-690Y V |
| Frequency | 50 Hz |
| Rated Current | 20.8-19.8 / 12.0-11.8 A |
| Starting Current | 660-780 % |
| Power Factor (Cos φ) | 0.88-0.84 |
| Rated Speed | 2940-2950 rpm |
| Poles | 2 |
| Motor Efficiency Class | IE3 |
| Motor Efficiency at Full Load | 91.2 % |
| Motor Efficiency at 3/4 Load | 91.8 % |
| Motor Efficiency at 1/2 Load | 91.3-91.2 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Built-in Motor Protection | PTC |
| Motor Number | 85U17524 |
| Terminal Box Position | 6 |
| Frequency Converter | None |
| Minimum Efficiency Index (MEI) | ≥ 0.70 |
| Net Weight | 153 kg |
| Gross Weight | 185 kg |
| Shipping Volume | 0.619 m³ |
| Country of Origin | TW |
| Custom Tariff No. | 84137090621436561 |
