Grundfos CRN 1-3 A-CA-A-V-HQQV Vertical Multistage Centrifugal Pump – 96520529 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96520529
Original price
$1,672.69
-
Original price
$1,672.69
Original price
$1,672.69
$1,672.69
-
$1,672.69
Current price
$1,672.69
📢 For orders over $100, FREE Shipping Australia-wide

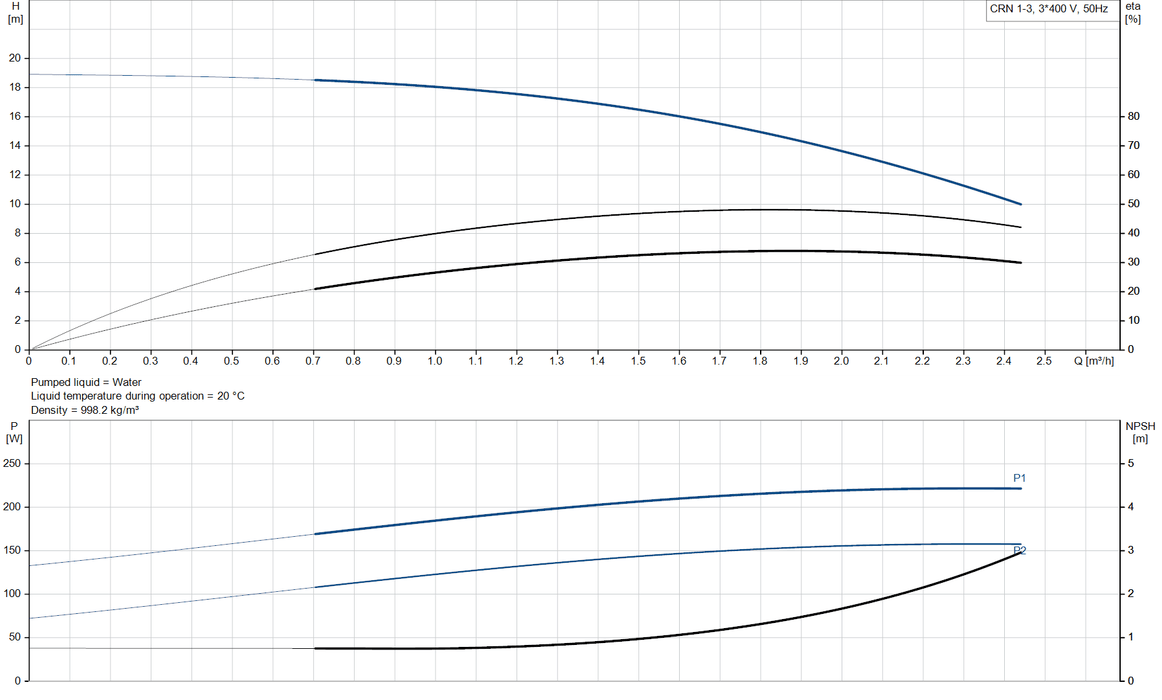

Vertical, non-self-priming, multistage in-line centrifugal pump with suction and discharge ports on the same level. All liquid-contacting materials are high-grade stainless steel (EN 1.4401 for impellers; EN 1.4408 for pump head and base). The pump delivers a rated flow of 1.8 m³/h at a head of 15.6 m, uses a HQQV single shaft seal, and connects via FlexiClamp flanges. Power is transmitted via a cast iron split coupling to a 3-phase AC motor (0.37 kW, IE3, IP55, F-class insulation).
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 1-3 A-CA-A-V-HQQV |
| Product Number | 96520529 |
| EAN | 5700396822914 |
| Pump Type | Vertical / Multistage Centrifugal |
| Rated Flow | 1.8 m³/h |
| Rated Head | 15.6 m |
| Maximum Head | 19.2 m |
| Speed (Pump Data) | 2873 rpm |
| Stages / Impellers | 3 / 3 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | Single, HQQV |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 32 / DN 32, FlexiClamp, PN 25 |
| Base / Head Material | Stainless steel, EN 1.4408, AISI 316 |
| Impeller Material | Stainless steel, EN 1.4401, AISI 316 |
| Bearing | SIC |
| Motor Power (P2) | 0.37 kW |
| Voltage | 3 × 220-240D / 380-415Y V |
| Frequency | 50 Hz |
| Rated Current | 1.74 / 1.00 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 73.8 % |
| Enclosure Class | IP55 Dust/Jetting |
| Insulation Class | F |
| MEI | 0.70 |
| Net / Gross Weight | 16.7 / 19.3 kg |
| Shipping Volume | 0.054 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Product Datasheet | Download |
