Grundfos CRN 1-27 A-CA-A-V-HQQV Vertical Multistage Centrifugal Pump – 96520656 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96520656
Original price
$3,735.88
-
Original price
$3,735.88
Original price
$3,735.88
$3,735.88
-
$3,735.88
Current price
$3,735.88
📢 For orders over $100, FREE Shipping Australia-wide
The CRN 1-27 A-CA-A-V-HQQV is a vertical, non-self-priming, multistage in-line centrifugal pump for installation in pipe systems or on a foundation. Suction and discharge ports are on the same level. Wetted components, including impellers, intermediate chambers, and outer sleeve, are high-grade stainless steel (EN 1.4401 / AISI 316). The pump head cover and base are stainless steel EN 1.4408. It has a single HQQV shaft seal, FlexiClamp connections, and a three-phase IE3 high-efficiency AC motor.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment, fertigation, and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 1-27 A-CA-A-V-HQQV |
| Product Number | 96520656 |
| EAN | 5700396824000 |
| Pump Type | Vertical Multistage Centrifugal |

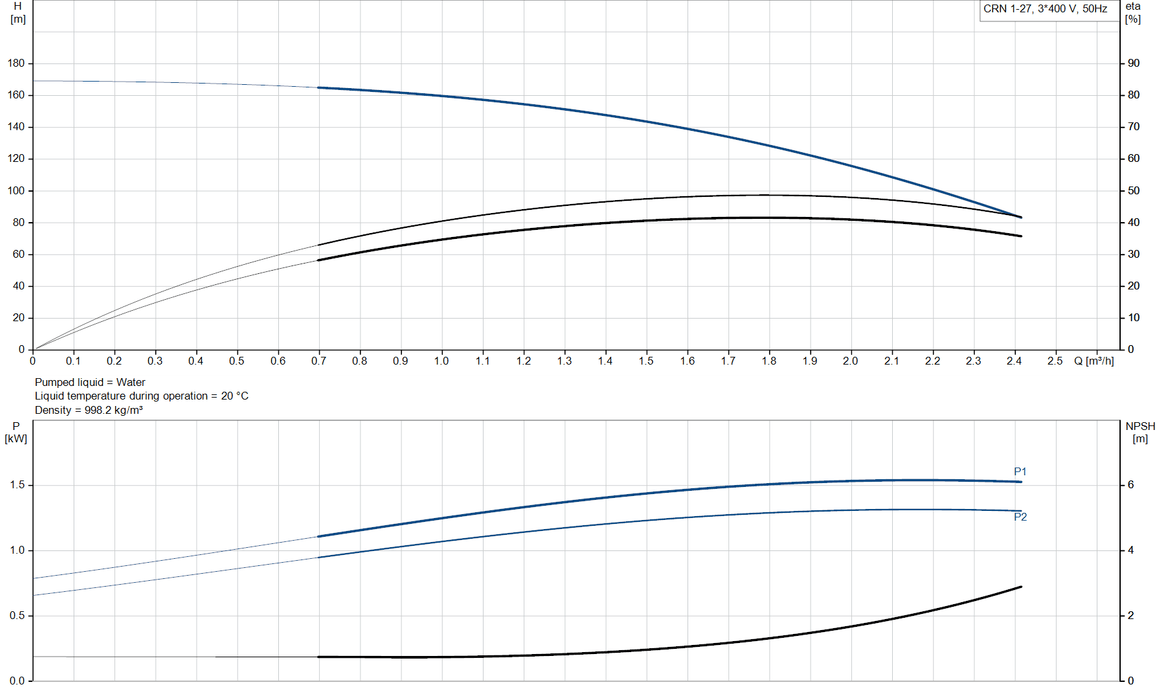

| Rated Flow | 1.8 m³/h |
| Rated Head | 128.3 m |
| Maximum Head | 168 m |
| Pump Speed (Data Basis) | 2896 rpm |
| Stages / Impellers | 27 / 27 |
| Shaft Seal | Single, HQQV |
| Liquid Temperature Range | -20 to 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connection Type | FlexiClamp |
| Inlet / Outlet | DN 32 (1 1/4") |
| Pressure Rating | PN 25 |
| Flange Size for Motor | FT115 |
| Impeller Material | Stainless Steel EN 1.4401 (AISI 316) |
| Pump Head / Base | Stainless Steel EN 1.4408 (AISI 316) |
| Bearing | SIC |
| Motor Power (P2) | 1.5 kW |
| Voltage | 3 × 220-240D / 380-415Y V |
| Frequency | 50 Hz |
| Rated Current | 5.70 / 3.30 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 84.2 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Minimum Efficiency Index (MEI) | ≥ 0.70 |
| Net Weight | 37.2 kg |
| Gross Weight | 40.1 kg |
| Shipping Volume | 0.13 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Country of Origin | Australia |
Documentation & Downloads
| Product Datasheet | Download PDF |
