Grundfos CRN 1-23 A-CA-A-V-HQQV Vertical Multistage Centrifugal Pump – 96520654 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96520654
Original price
$3,199.63
-
Original price
$3,199.63
Original price
$3,199.63
$3,199.63
-
$3,199.63
Current price
$3,199.63
📢 For orders over $100, FREE Shipping Australia-wide
The CRN 1-23 A-CA-A-V-HQQV is a vertical, non-self-priming, multistage in-line centrifugal pump for pipe system installation or foundation mounting. Suction and discharge ports are on the same level. All wetted components—including impellers, intermediate chambers, and outer sleeve—are made of high-grade stainless steel (EN 1.4401 / AISI 316). The pump head cover and base are stainless steel EN 1.4408. It features a single HQQV shaft seal, FlexiClamp pipe connections, and a three-phase IE3 high-efficiency AC motor.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment, fertigation, and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 1-23 A-CA-A-V-HQQV |
| Product Number | 96520654 |
| EAN | 5700396823980 |
| Pump Type | Vertical Multistage Centrifugal |

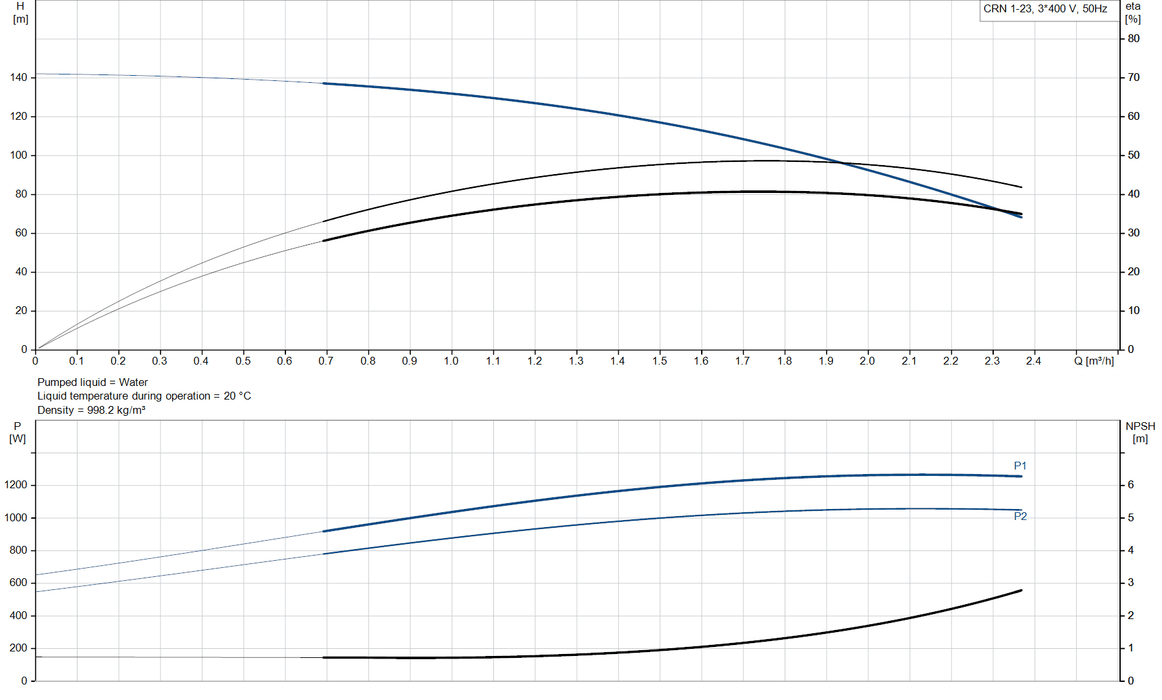

| Rated Flow | 1.8 m³/h |
| Rated Head | 104.5 m |
| Maximum Head | 141 m |
| Pump Speed (Data Basis) | 2853 rpm |
| Stages / Impellers | 23 / 23 |
| Shaft Seal | Single, HQQV |
| Liquid Temperature Range | -20 to 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connection Type | FlexiClamp |
| Inlet / Outlet | DN 32 (1 1/4") |
| Pressure Rating | PN 25 |
| Flange Size for Motor | FT100 |
| Impeller Material | Stainless Steel EN 1.4401 (AISI 316) |
| Pump Head / Base | Stainless Steel EN 1.4408 (AISI 316) |
| Bearing | SIC |
| Motor Power (P2) | 1.1 kW |
| Voltage | 3 × 220-240D / 380-415Y V |
| Frequency | 50 Hz |
| Rated Current | 4.35 / 2.50 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 82.7 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Minimum Efficiency Index (MEI) | ≥ 0.70 |
| Net Weight | 29.7 kg |
| Gross Weight | 33.7 kg |
| Shipping Volume | 0.092 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Country of Origin | Australia |
