Grundfos CRIE 15-1 NV-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 99245000 (3 x 380-500 V)
by Grundfos
SKU 99245000
Original price
$3,445.06
-
Original price
$3,445.06
Original price
$3,445.06
$3,445.06
-
$3,445.06
Current price
$3,445.06
📢 For orders over $100, FREE Shipping Australia-wide

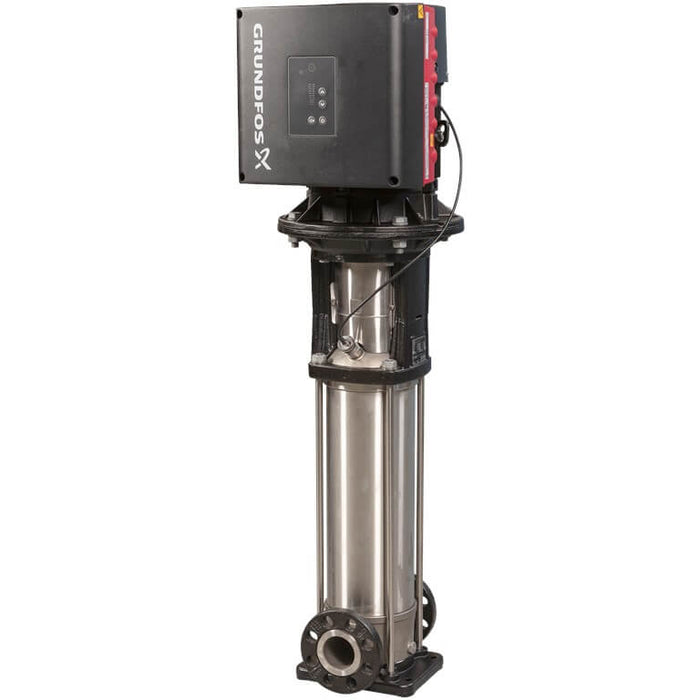

The CRIE 15-1 NV-FGJ-A-E-HQQE is a vertical, multistage inline centrifugal pump with integrated frequency converter. All wetted parts are stainless steel (EN 1.4301 / AISI 304), with the pump head cover and base in stainless steel EN 1.4408 / AISI 316. It features a HQQE cartridge shaft seal, DIN/ANSI/JIS flange connections, and a permanent-magnet synchronous motor with built-in frequency converter and PI controller for continuously variable speed control.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Groundwater transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRIE 15-1 NV-FGJ-A-E-HQQE |
| Product Number | 99245000 |
| Pump Type | Vertical multistage centrifugal (inline, with integrated frequency converter) |
| Rated Flow | 19.36 m³/h |
| Rated Head | 15.15 m |
| Speed (Pump Data) | 3506 rpm |
| Stages / Impellers | 1 |
| Shaft Seal | Cartridge (HQQE) |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 16 bar |
| Connections | DIN / ANSI / JIS flanges, DN 50 (2") PN 25 |
| Base Material | Stainless steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel EN 1.4301 / AISI 304 |
| Bearing | SIC |
| Motor Power (P2) | 1.5 kW |
| Voltage | 3 × 380–500 V |
| Frequency | 50 / 60 Hz |
| Rated Current | 2.9–2.4 A |
| Motor Efficiency Class | IE5 |
| Motor Efficiency (Full Load) | 88.9 % |
| Enclosure Class | IP55 Dust/Jetting |
| Insulation Class | F |
| Control | Built-in frequency converter & PI controller |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 43 / 47 kg |
| Shipping Volume | 0.143 m³ |
| Approvals | CE, EAC, UKCA, CURUS, SEPRO, WRAS, ACS |
| Country of Origin | TW |
Documentation & Downloads
| Product Datasheet — CRIE 15-1 NV-FGJ-A-E-HQQE | Download |
