Grundfos CRI 3-6 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 96527892 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96527892
Original price
$1,182.50
-
Original price
$1,182.50
Original price
$1,182.50
$1,182.50
-
$1,182.50
Current price
$1,182.50
📢 For orders over $100, FREE Shipping Australia-wide

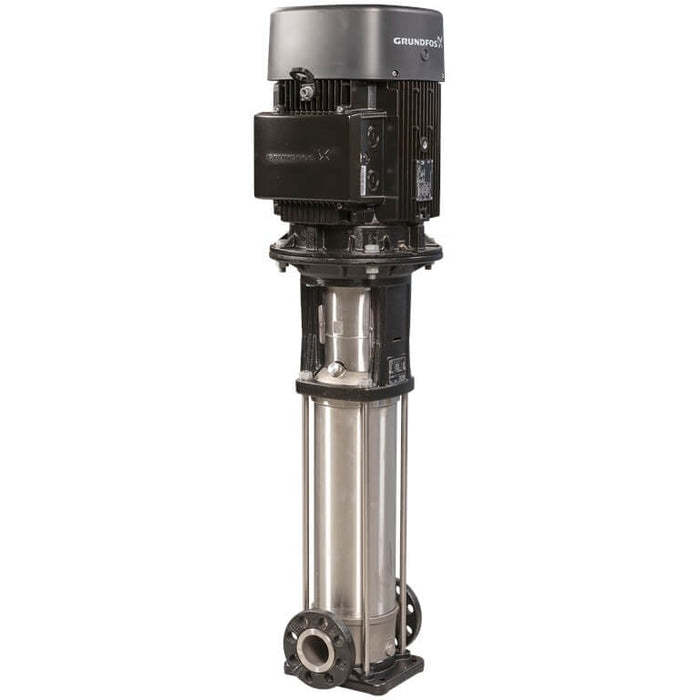

The CRI 3-6 A-FGJ-A-E-HQQE is a vertical, non-self-priming, multistage inline centrifugal pump designed for installation in pipe systems and mounting on a foundation. All wetted parts are stainless steel (EN 1.4301 / AISI 304), ensuring durability and corrosion resistance. The pump features a HQQE single cartridge shaft seal, DIN/ANSI/JIS flange connections, and is powered by a 3-phase IEC asynchronous motor.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Groundwater transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRI 3-6 A-FGJ-A-E-HQQE |
| Product Number | 96527892 |
| Pump Type | Vertical multistage centrifugal (inline) |
| Rated Flow | 3 m³/h |
| Rated Head | 28.5 m |
| Speed (Pump Data) | 2856 rpm |
| Stages / Impellers | 6 |
| Shaft Seal | Single cartridge (HQQE) |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DIN / ANSI / JIS flanges, DN 25/32 (1 1/4") PN 25 |
| Base Material | Stainless steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel EN 1.4301 / AISI 304 |
| Bearing | SIC |
| Motor Power (P2) | 0.55 kW |
| Voltage | 3 × 220–240D / 380–415Y V |
| Frequency | 50 Hz |
| Rated Current | 2.50 / 1.44 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 77.8 % |
| Enclosure Class | IP55 Dust/Jetting |
| Insulation Class | F |
| Control | No frequency converter |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 21.5 / 24.3 kg |
| Shipping Volume | 0.063 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Country of Origin | TW |
Documentation & Downloads
| Product Datasheet — CRI 3-6 A-FGJ-A-E-HQQE | Download |
