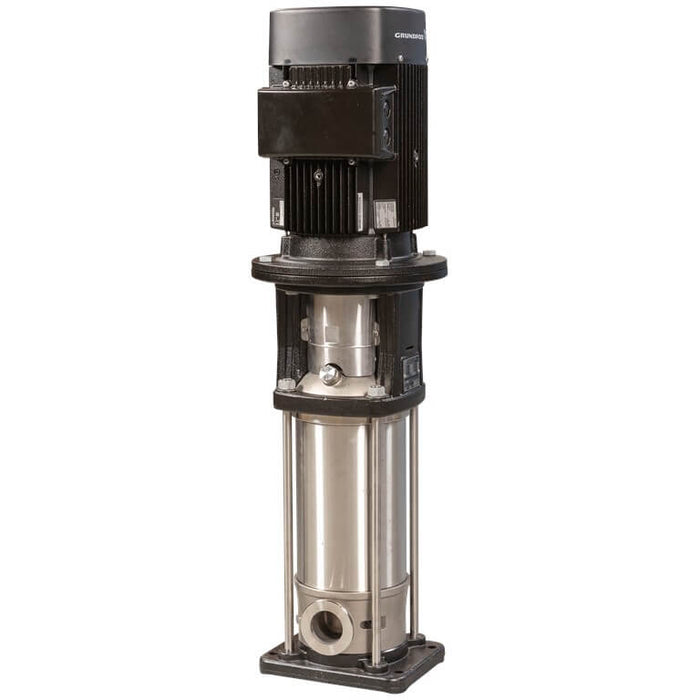

Grundfos CRI 3-5 A-CA-A-E-HQQE Vertical Multistage Centrifugal Pump – 92901577 (1 x 220-230V)
by Grundfos
SKU 92901577
Original price
$1,164.63
-
Original price
$1,164.63
Original price
$1,164.63
$1,164.63
-
$1,164.63
Current price
$1,164.63
📢 For orders over $100, FREE Shipping Australia-wide
The CRI 3-5 A-CA-A-E-HQQE is a vertical, non-self-priming, multistage inline centrifugal pump designed for installation in pipe systems. All wetted parts are stainless steel (EN 1.4301 / AISI 304), ensuring durability and corrosion resistance. The pump features a HQQE single cartridge shaft seal, FlexiClamp connections, and is powered by a 1-phase, fan-cooled asynchronous IEC motor.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Groundwater transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRI 3-5 A-CA-A-E-HQQE |
| Product Number | 92901577 |
| Pump Type | Vertical multistage centrifugal (inline) |
| Rated Flow | 3 m³/h |
| Rated Head | 21.7 m |
| Speed (Pump Data) | 2757 rpm |
| Stages / Impellers | 5 |
| Shaft Seal | Single cartridge (HQQE) |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | FlexiClamp, DN 32 (1 1/4") PN 25 |
| Base Material | Stainless steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel EN 1.4301 / AISI 304 |
| Bearing | SIC |
| Motor Power (P2) | 0.37 kW |
| Voltage | 1 × 220–230 V |
| Frequency | 50 Hz |
| Rated Current | 2.60–2.50 A |
| Motor Efficiency Class | IE2 |
| Motor Efficiency (Full Load) | 69.5 % |
| Enclosure Class | IP55 Dust/Jetting |
| Insulation Class | F |
| Control | No frequency converter |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 20.4 / 23.2 kg |
| Shipping Volume | 0.063 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Country of Origin | AU |
Documentation & Downloads
| Product Datasheet — CRI 3-5 A-CA-A-E-HQQE | Download |
