Grundfos CRI 1S-27 A-CA-A-E-HQQE Vertical Multistage Centrifugal Pump – 92900150 (1 x 220-230V)
by Grundfos
SKU 92900150
Original price
$2,252.25
-
Original price
$2,252.25
Original price
$2,252.25
$2,252.25
-
$2,252.25
Current price
$2,252.25
📢 For orders over $100, FREE Shipping Australia-wide

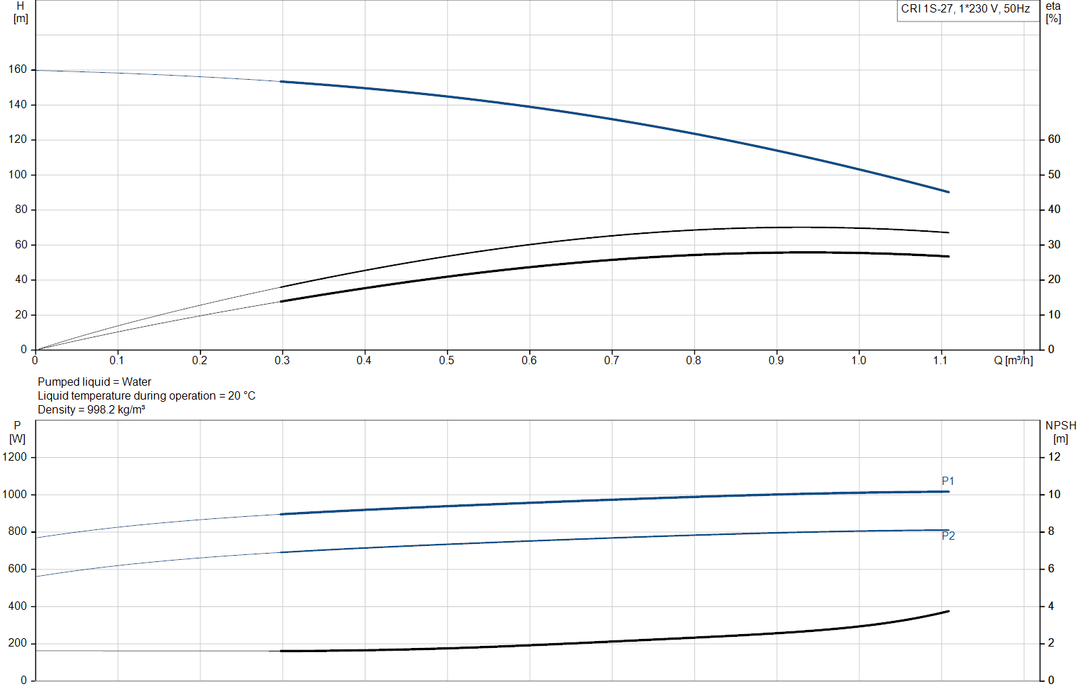

The CRI 1S-27 A-CA-A-E-HQQE is a vertical multistage centrifugal pump with inline suction and discharge ports, constructed in stainless steel (EN 1.4301 / AISI 304). It features a HQQE cartridge shaft seal (SiC/SiC/EPDM), FlexiClamp connections, and a 1-phase, fan-cooled asynchronous motor. Designed for water at −20 °C to +120 °C, it delivers a rated flow of 0.9 m³/h at 119.4 m head and a maximum head of 159.1 m, with a maximum operating pressure of 25 bar.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment, fertigation, and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRI 1S-27 A-CA-A-E-HQQE |
| Product Number | 92900150 |
| EAN | 5715121264365 |
| Pump Type | Vertical multistage, fixed-speed centrifugal (304 SS) |
| Rated Flow | 0.9 m³/h |
| Rated Head | 119.4 m |
| Maximum Head | 159.1 m |
| Speed (Pump Data) | 2789 rpm |
| Stages / Impellers | 27 / 27 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQE cartridge seal (SiC/SiC/EPDM) |
| Liquid Temperature Range | −20 °C to +120 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | FlexiClamp DN32 / 1 1/4 inch (PN25) |
| Flange Size | FT115 |
| Base / Head Material | Stainless steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel EN 1.4301 / AISI 304 |
| Bearing | SiC |

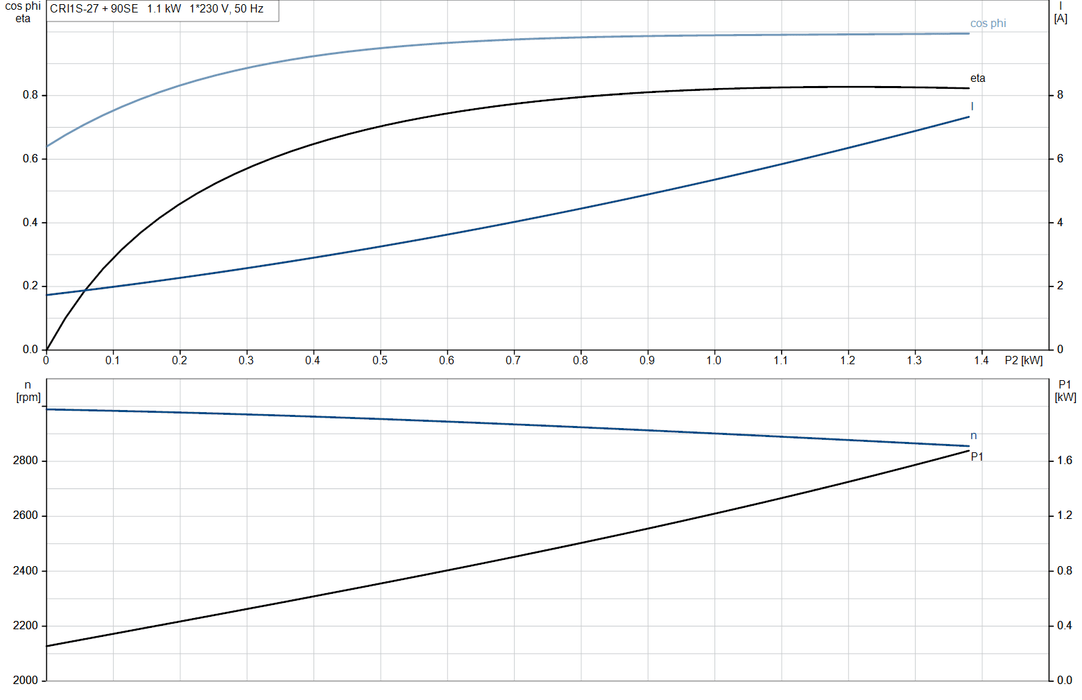

| Motor Power (P2) | 1.1 kW |
| Voltage | 1 × 220–230 V |
| Frequency | 50 Hz |
| Rated Current | 6.30–6.60 A |
| Motor Efficiency Class | IE2 |
| Motor Efficiency (Full Load) | 79.6% |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | 0.54 |
| Net / Gross Weight | 38.3 / 41.2 kg |
| Shipping Volume | 0.13 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| CRI 1S-27 A-CA-A-E-HQQE Product Datasheet | Download |
