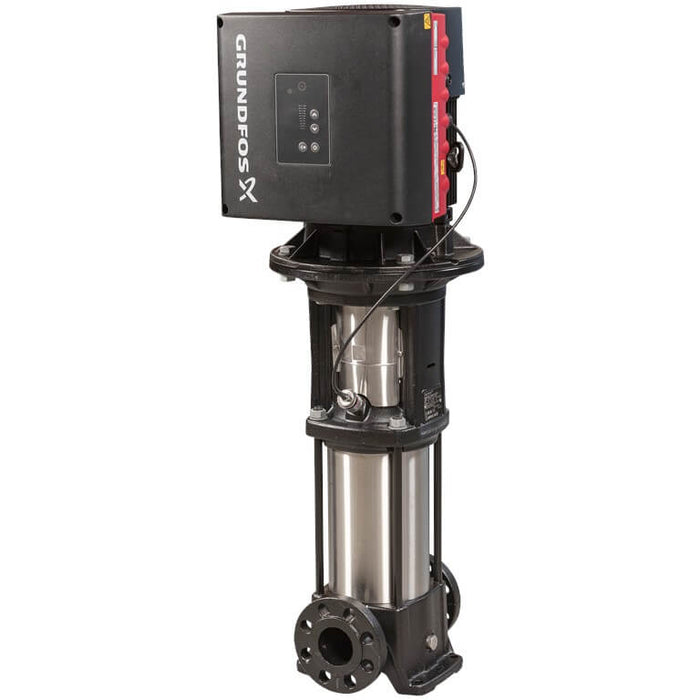

Grundfos CRE 15-3 NPV-F-A-E-HQQE Vertical Multistage Centrifugal Pump with Integrated Frequency Converter – 99517224 (3 x 380-500 V)
📢 For orders over $100, FREE Shipping Australia-wide
The CRE 15-3 NPV-F-A-E-HQQE is a vertical, non-self-priming, multistage inline centrifugal pump with integrated frequency converter and PI-controller. Its pump head and base are cast iron, while all wetted components, including impellers and intermediate chambers, are stainless steel (EN 1.4301 / AISI 304). A cartridge shaft seal ensures reliability and easy service. The pump features DIN flange connections and is fitted with a three-phase permanent-magnet synchronous motor (IE5 efficiency class) with built-in frequency converter and PI-controller. The motor terminal box includes a TFT display, push-buttons, and the Grundfos Eye indicator for intuitive operation. Communication and advanced control are possible via Grundfos GO Remote, GENIbus, and CIM fieldbus modules.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Groundwater transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRE 15-3 NPV-F-A-E-HQQE |
| Product Number | 99517224 |
| Pump Type | Vertical multistage centrifugal (inline) with integrated frequency converter |
| Rated Flow | 19.72 m³/h |
| Rated Head | 39.75 m |
| Speed (Pump Data) | 3252 rpm |
| Stages / Impellers | 3 |
| Shaft Seal | Single cartridge (HQQE) |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 16 bar |
| Connections | DIN flanges, DN 50, PN 25 |
| Base / Head Material | Cast iron EN-GJL-200 / ASTM A48-25B |
| Impeller Material | Stainless steel EN 1.4301 (AISI 304) |
| Bearing | SIC |
| Motor Power (P2) | 3.0 kW |
| Voltage | 3 × 380–500 V |
| Frequency | 50 / 60 Hz |
| Rated Current | 5.80–4.80 A |
| Motor Efficiency Class | IE5 |
| Motor Efficiency (Full Load) | 90.7 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Control | Built-in frequency converter, PI-controller, TFT display, Grundfos Eye, GO Remote, GENIbus, CIM fieldbus compatibility |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 56 / 84 kg |
| Shipping Volume | 0.37 m³ |
| Approvals | CE, EAC, UKCA, CURUS, SEPRO, WRAS, ACS |
| Country of Origin | AU |
Documentation & Downloads
| Product Datasheet — CRE 15-3 NPV-F-A-E-HQQE | Download |
