Grundfos CR 5-4 A-FGJ-A-E-HQQE Vertical Multistage Pump – 92902393 (1 x 220-230V)
by Grundfos
SKU 92902393
Original price
$1,281.50
-
Original price
$1,281.50
Original price
$1,281.50
$1,281.50
-
$1,281.50
Current price
$1,281.50
📢 For orders over $100, FREE Shipping Australia-wide

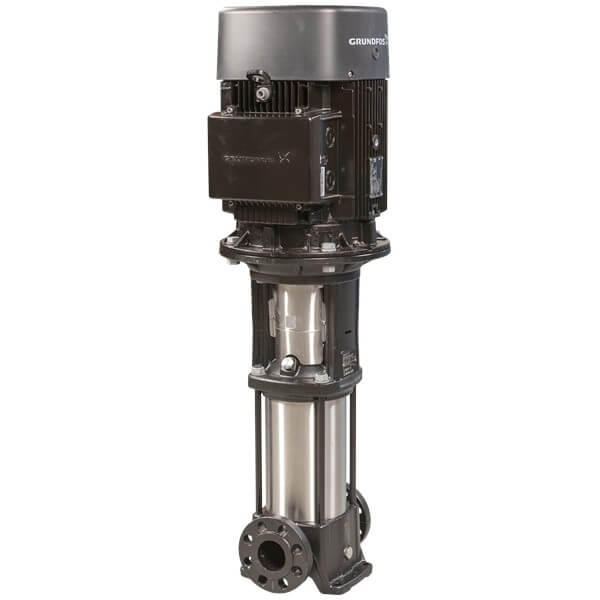

Vertical, multistage centrifugal inline pump designed for a wide range of commercial, industrial, and water treatment applications. The pump head and base are made of cast iron, while all other wetted parts are stainless steel (EN 1.4301). A cartridge shaft seal ensures high reliability, safe handling, and easy service access. Power transmission is via a rigid split coupling, and pipe connections are provided through combined DIN / ANSI / JIS flanges. The pump is fitted with a single-phase, fan-cooled asynchronous motor.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Industrial heating and cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Process liquids transfer
- Machining
- Wash and clean systems
- Desalination
- Reverse osmosis water treatment
- Drinking water treatment
- Surface water intake
- Water distribution
- Irrigation and agriculture
- Rotor and spray irrigation
- Pivot irrigation systems
- Groundwater transfer
- Community water supply
- Solar water solutions
- Solar boosting and water supply solutions
- Solar water treatment, fertigation, and dosing
- Controls and digital water management
- Livestock watering with solar solutions
Key Specifications
| Product Number | 92902393 |
| Pump Orientation | Vertical |
| Rated Flow | 5.8 m³/h |
| Rated Head | 17.4 m |
| Maximum Head | 26.3 m |
| Number of Stages | 4 |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 25 bar |
| Shaft Seal Type | Single (HQQE) |
| Impeller Material | Stainless steel (EN 1.4301 / AISI 304) |
| Base Material | Cast iron (EN-GJL-200) |
| Motor Power (P2) | 0.55 kW |
| Rated Voltage | 1 × 220–230 V |
| Mains Frequency | 50 Hz |
| Motor Efficiency Class | IE2 |
| Enclosure Class | IP55 |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Drinking Water Approvals | WRAS, ACS |
| Net Weight | 27.4 kg |
| Country of Origin | AU |
Documentation & Downloads
| Product Datasheet (PDF) | Download |
