Grundfos CR 5-3 A-FGJ-A-E-HQQE Vertical Multistage Pump – 92902392 (1 x 220-230V)
by Grundfos
SKU 92902392
Original price
$1,199.69
-
Original price
$1,199.69
Original price
$1,199.69
$1,199.69
-
$1,199.69
Current price
$1,199.69
📢 For orders over $100, FREE Shipping Australia-wide

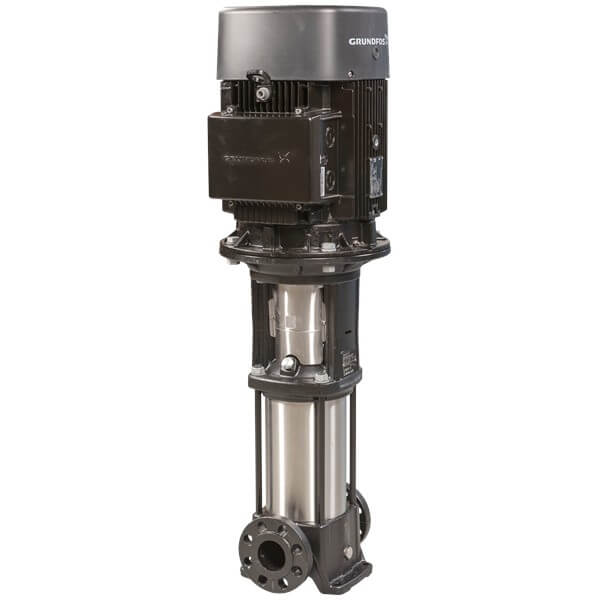

The Grundfos CR 5-3 A-FGJ-A-E-HQQE is a vertical, multistage centrifugal in-line pump designed for commercial, industrial, irrigation, and solar water applications. It features a cast iron pump head and base, with all other wetted parts manufactured from stainless steel (EN 1.4301). A cartridge shaft seal ensures high reliability and easy servicing, while the rigid split coupling provides efficient power transmission. The pump is fitted with a single-phase, fan-cooled asynchronous motor.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Industrial heating and cooling
- Industrial water supply and wastewater
- Industrial process water treatment
- Process liquids transfer
- Machining, wash and clean systems
- Desalination and reverse osmosis water treatment
- Drinking water treatment and water distribution
- Surface water intake and groundwater transfer
- Irrigation, pivot, rotor, and spray irrigation
- Community water supply
- Solar boosting and water supply solutions
- Agriculture and livestock watering with solar solutions
- Controls and digital groundwater and water management

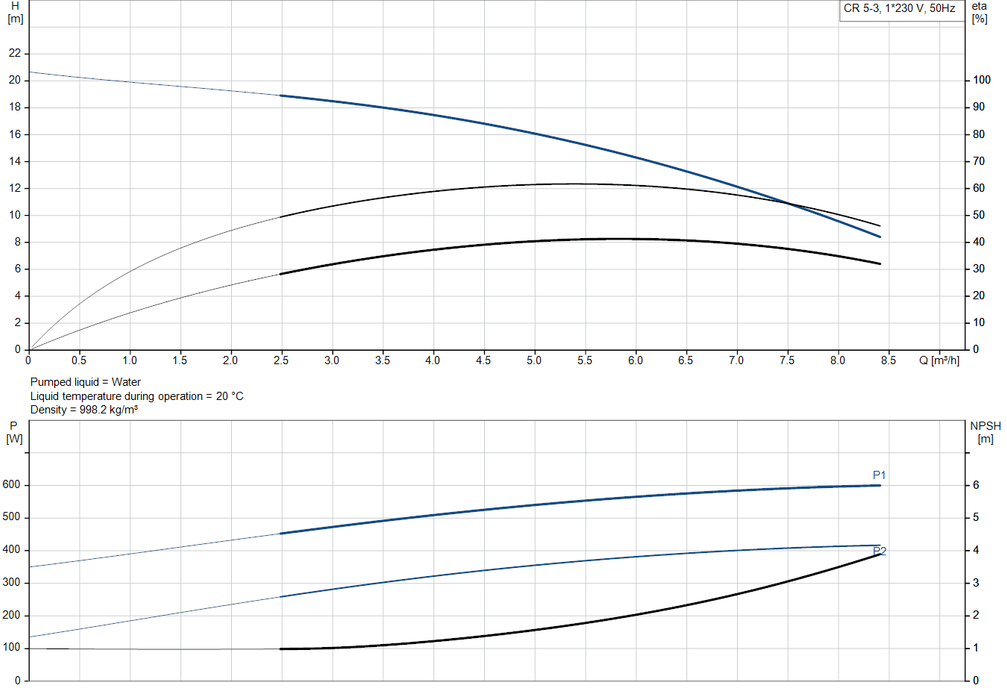

Key Specifications
| Product Number | 92902392 |
| Pump Type | Vertical multistage centrifugal, in-line |
| Number of Stages | 3 |
| Rated Flow | 5.8 m³/h |
| Rated Head | 13.4 m |
| Maximum Head | 20.4 m |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 25 bar |
| Shaft Seal | HQQE (Single) |
| Impeller Material | Stainless steel (EN 1.4301 / AISI 304) |
| Pump Head & Base Material | Cast iron (EN-GJL-200) |
| Connection Type | DIN / ANSI / JIS |
| Inlet / Outlet Size | DN 25/32 (1 1/4 inch) |
| Pressure Rating | PN 25 |

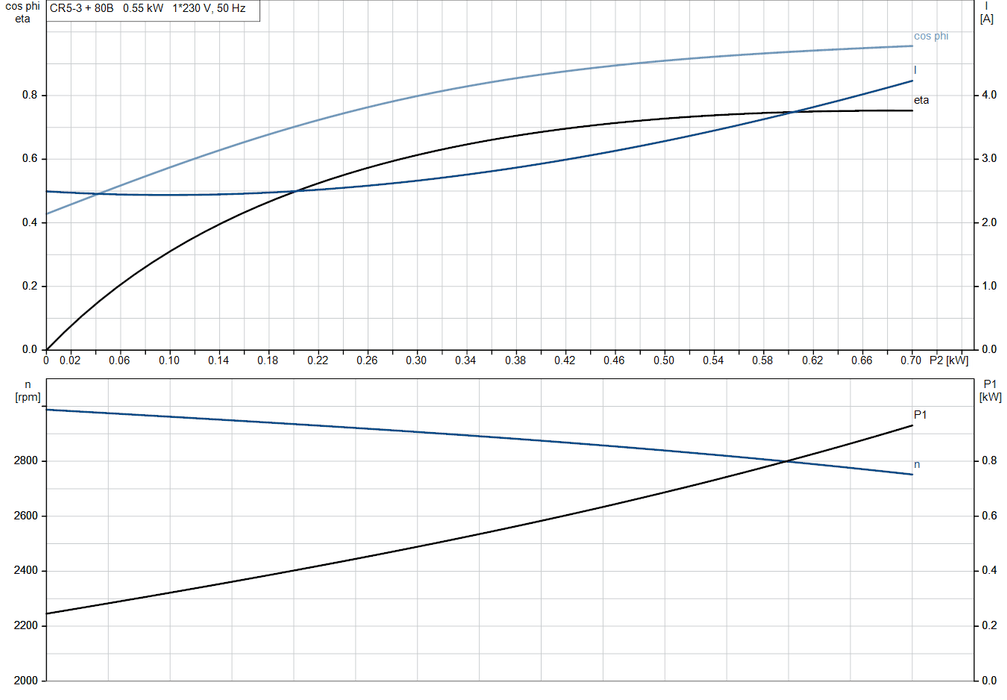

| Motor Power (P2) | 0.55 kW |
| Power Supply | 1-phase, 50 Hz, 220–230 V |
| Motor Efficiency Class | IE2 |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Drinking Water Approvals | WRAS, ACS |
| Net Weight | 26.8 kg |
| Gross Weight | 29.2 kg |
| Country of Origin | Australia (AU) |
| Price | AUD 1,745 |
Documentation & Downloads
| Product Data Sheet – CR 5-3 A-FGJ-A-E-HQQE | Download PDF |
