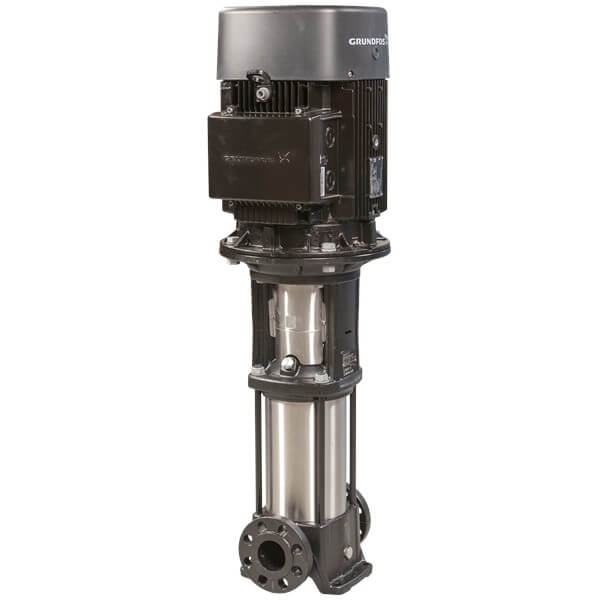

Grundfos CR 5-24 A-FGJ-A-E-HQQE Vertical Multistage Pump – 96513390 (3 x 380-415DV)
by Grundfos
SKU 96513390
Original price
$2,591.88
-
Original price
$2,591.88
Original price
$2,591.88
$2,591.88
-
$2,591.88
Current price
$2,591.88
📢 For orders over $100, FREE Shipping Australia-wide
Vertical, non-self-priming, multistage in-line centrifugal pump for pipe system and foundation installation. Cast iron head and base with stainless steel wetted parts (EN 1.4301), stainless steel impellers and chambers, single HQQE shaft seal (EN 12756), DIN/ANSI/JIS flanged connections, and driven by a 3-phase AC motor.
Suitable Applications
- Commercial heating systems
- Commercial air conditioning systems
- Water pressure boosting
- District heating and cooling
- Industrial heating and cooling
- Industrial water supply
- Process liquid transfer
- Wash-down and cleaning systems
- Machining and equipment cooling
- Industrial wastewater handling
- Industrial process water treatment
- Desalination and reverse osmosis systems
- Surface water intake
- Drinking water treatment and distribution
- Irrigation and water distribution networks
Key Specifications
| Product Number | 96513390 |
| EAN | 5700396639420 |
| Pump Orientation | Vertical |
| Stages | 24 |
| Impellers | 24 |

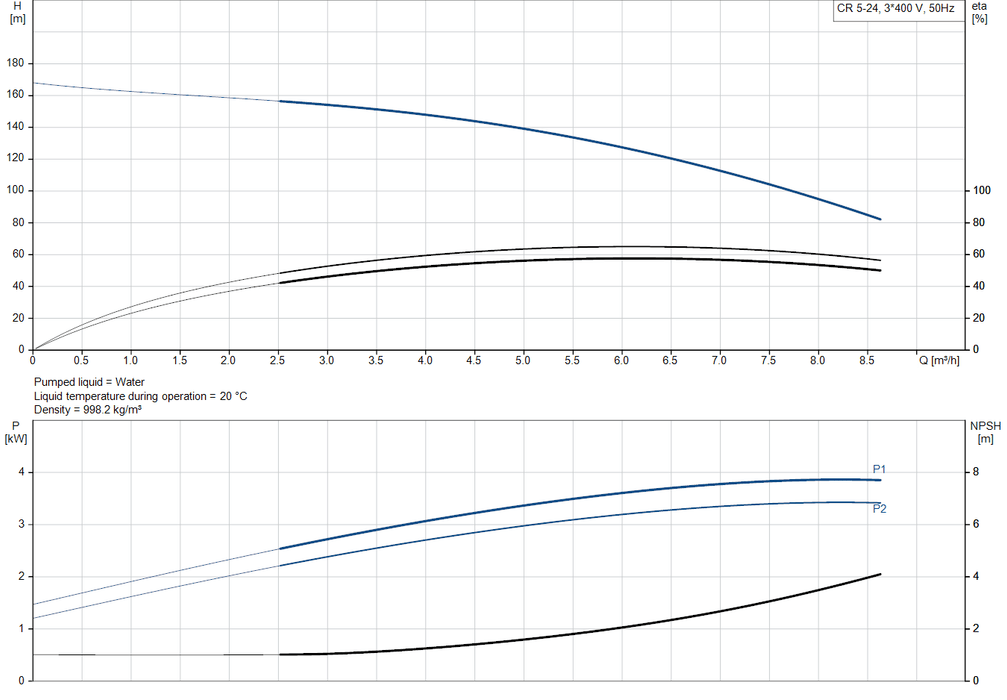

| Rated Flow | 5.8 m³/h |
| Rated Head | 125.5 m |
| Maximum Head | 163.9 m |
| Pump Speed (Data Based) | 2917 rpm |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 25 bar |
| Shaft Seal Arrangement | Single (HQQE) |
| Curve Tolerance | ISO 9906:2012 3B |
| Base Material | Cast iron (EN-GJL-200 / ASTM A48-25B) |
| Impeller Material | Stainless steel (EN 1.4301 / AISI 304) |
| Bearing Material | SIC |
| Connection Type | DIN / ANSI / JIS |
| Inlet Connection | DN 25/32 (1 1/4 inch) |
| Outlet Connection | DN 25/32 (1 1/4 inch) |
| Pressure Rating | PN 25 |

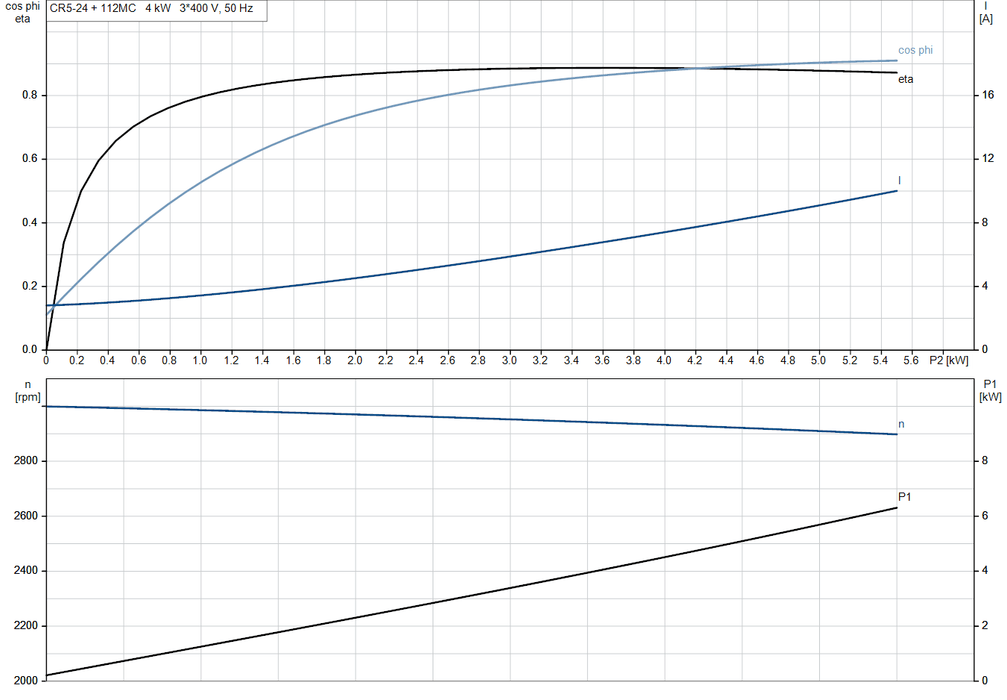

| Motor Power (P2) | 4 kW |
| Rated Voltage | 3 × 380–415D V |
| Mains Frequency | 50 Hz |
| Rated Speed | 2920–2940 rpm |
| Efficiency Class | IE3 |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Drinking Water Approvals | WRAS, ACS |
| Minimum Efficiency Index (MEI) | ≥ 0.57 |
| Net Weight | 67.4 kg |
| Gross Weight | 72.1 kg |
| Shipping Volume | 0.148 m³ |
| Country of Origin | TW |
