Grundfos CR 32-3 A-F-A-E-HQQE Vertical Multistage Pump – 96122011 (3 x 380-415DV)
by Grundfos
SKU 96122011
Original price
$4,720.38
-
Original price
$4,720.38
Original price
$4,720.38
$4,720.38
-
$4,720.38
Current price
$4,720.38
📢 For orders over $100, FREE Shipping Australia-wide
Grundfos CR 32-3 A-F-A-E-HQQE (Product No. 96122011) is a vertical, non-self-priming, multistage in-line centrifugal pump engineered for installation in pipe systems and foundation mounting. The pump head and base are constructed from cast iron (EN 1563 EN-GJS-500-7), while all wetted parts including impellers and intermediate chambers are stainless steel (EN 1.4301 / AISI 304). It features a single HQQE shaft seal (EN 12756), DIN flange connections (DN 65, PN 40), and is driven by a high-efficiency IE3 3-phase IEC motor, making it suitable for demanding commercial, industrial, and water supply applications.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating & cooling
- Industrial heating & cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Process liquid transfer
- Machining
- Wash and clean systems
- Desalination
- Reverse osmosis – water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation (pivot, rotor & spray)
- Groundwater transfer
- Community water supply
- Solar boosting and water supply solutions
- Solar water treatment, fertigation & dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
- Digital groundwater and water management systems
Key Specifications
| Product Number | 96122011 |
| EAN | 5700396680552 |

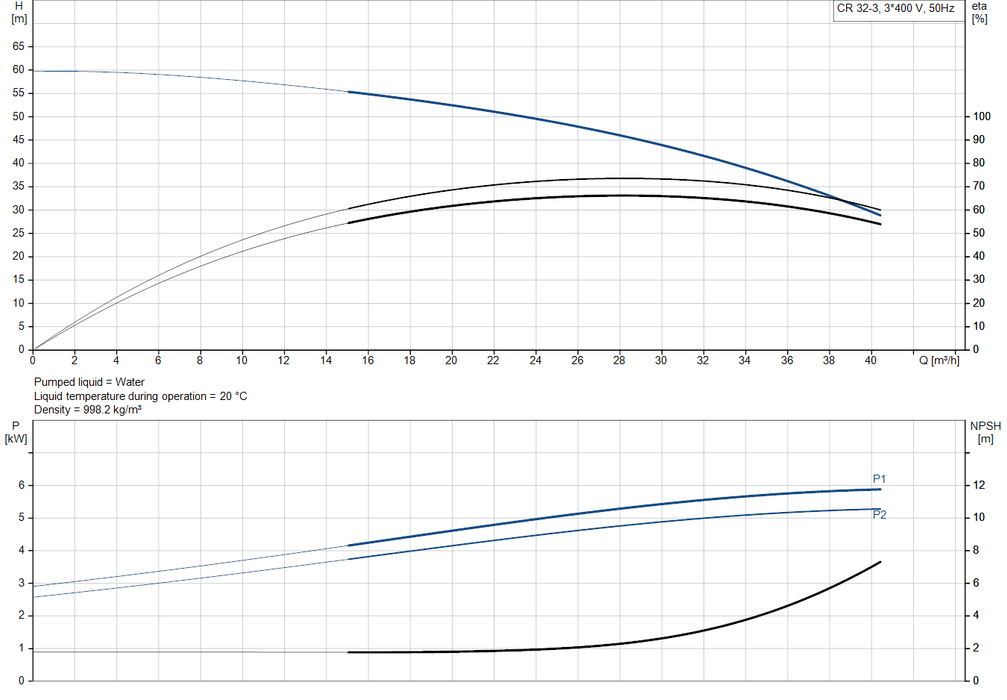

| Rated Flow | 30 m³/h |
| Rated Head | 44.1 m |
| Maximum Head | 58.5 m |
| Pump Speed (Base Data) | 2919 rpm |
| Orientation | Vertical |
| Stages / Impellers | 3 / 3 |
| Shaft Seal | HQQE (Single) |
| Maximum Operating Pressure | 16 bar |
| Liquid Temperature Range | -30 to 120 °C |
| Connection Type | DIN Flange |
| Inlet / Outlet | DN 65 / DN 65 |
| Pressure Rating | PN 40 |

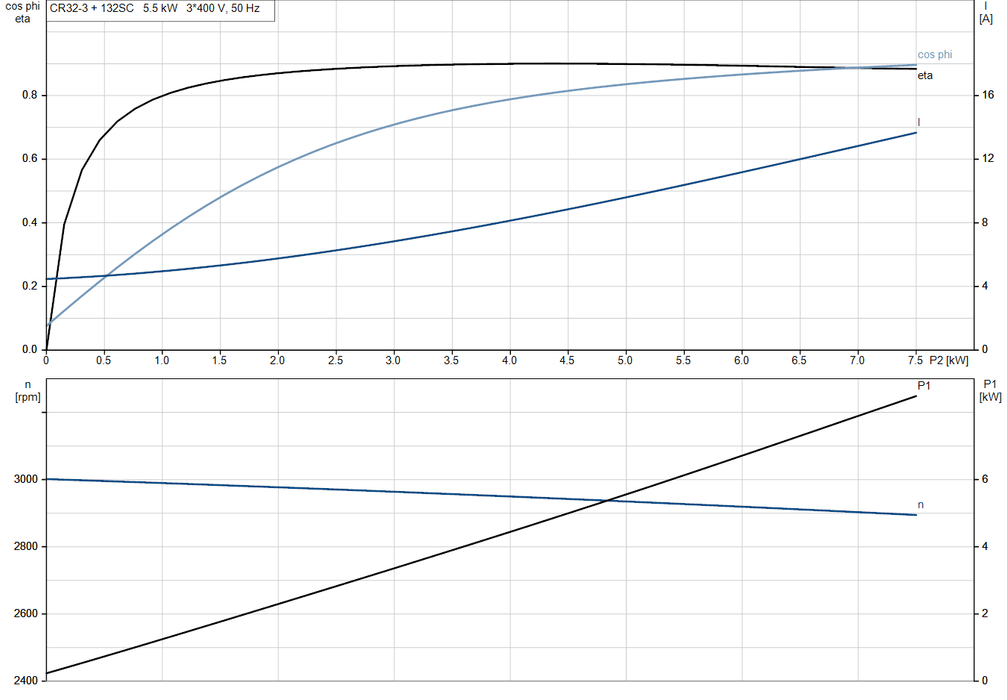

| Motor Type | 132SC |
| Rated Power (P2) | 5.5 kW |
| Voltage | 3 x 380-415D V |
| Rated Current | 11 A |
| Frequency | 50 Hz |
| Rated Speed | 2920–2940 rpm |
| Efficiency Class | IE3 |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Motor Protection | PTC |
| Maximum Ambient Temperature | 60 °C |
| Minimum Efficiency Index (MEI) | ≥ 0.70 |
| Net Weight | 97 kg |
| Gross Weight | 120 kg |
Documentation & Downloads
| Product Datasheet (PDF) | Download |
