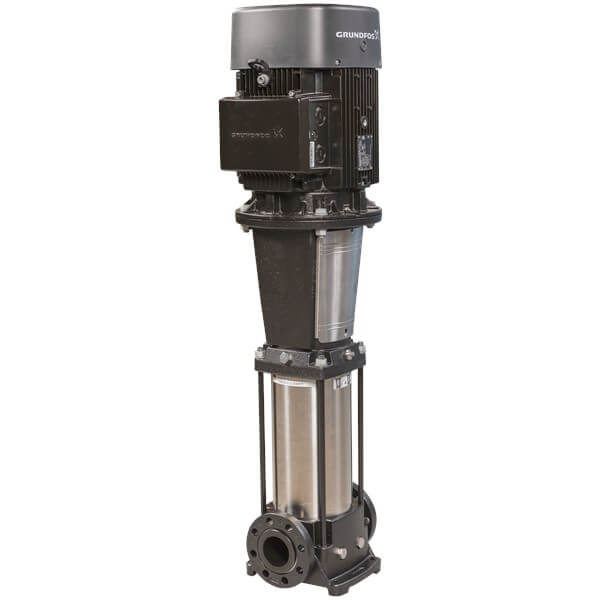

Grundfos CR 32-1-1 A-F-A-E-HQQE Vertical Multistage Pump – 96121950 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96121950
Original price
$2,596.00
-
Original price
$2,596.00
Original price
$2,596.00
$2,596.00
-
$2,596.00
Current price
$2,596.00
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 32-1-1 is a vertical, non-self-priming, multistage in-line centrifugal pump engineered for reliable water transfer in commercial and industrial systems. It features a cast iron pump head and base (EN-GJS-500-7) with stainless steel wetted components (EN 1.4301 / AISI 304) for corrosion resistance. Designed for pipe system installation with DIN flanges, the pump is driven by a high-efficiency IE3 3-phase motor.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and district cooling
- Industrial water supply and process liquids transfer
- Industrial wastewater and process water treatment
- Desalination and reverse osmosis systems
- Surface water intake and drinking water treatment
- Water distribution networks
- Irrigation: pivot, rotor, and spray systems
- Groundwater transfer
- Solar water boosting and agricultural solar solutions
- Fertigation, dosing, and livestock watering systems
Key Specifications
| Product Number | 96121950 |
| Rated Flow | 30 m³/h |
| Rated Head | 10.7 m |
| Maximum Head | 16 m |
| Number of Stages | 1 |
| Pump Orientation | Vertical |
| Maximum Operating Pressure | 16 bar |
| Liquid Temperature Range | -30 to 120 °C |
| Connection Type | DIN Flange, DN 65 (PN 40) |
| Motor Type | 90SD, 3-phase AC |
| Rated Motor Power (P2) | 1.5 kW |
| Supply Voltage | 3 × 220–240D / 380–415Y V, 50 Hz |
| Motor Efficiency Class | IE3 |
| Shaft Seal | HQQE (Single) |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Net Weight | 63.1 kg |
Documentation & Downloads
| Product Datasheet (PDF) | Download |
