Grundfos CR 3-9 A-A-A-E-HQQE Vertical Multistage Centrifugal Pump – 96516596 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516596
Original price
$1,236.81
-
Original price
$1,236.81
Original price
$1,236.81
$1,236.81
-
$1,236.81
Current price
$1,236.81
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 3-9 A-A-A-E-HQQE is a vertical, non-self-priming, multistage in-line centrifugal pump, designed for installation in pipe systems or on a foundation. Featuring suction and discharge ports on the same level, the pump combines compact design with high efficiency. The pump head and base are cast iron, while all wetted components are stainless steel (EN 1.4301), ensuring excellent corrosion resistance, durability, and reliable operation in demanding commercial, industrial, and agricultural applications.
Key Applications & Benefits
- Commercial heating and air conditioning
- Commercial and industrial water pressure boosting
- District heating and district cooling systems
- Industrial water supply, wastewater, and process water treatment
- Desalination and reverse osmosis water treatment
- Drinking water treatment and distribution (WRAS & ACS approved)
- Irrigation, rotor & spray irrigation, and pivot systems
- Solar boosting, solar water solutions, and agricultural solar applications
- Livestock watering and community water supply solutions
Key Specifications:
| SKU | 96516596 |

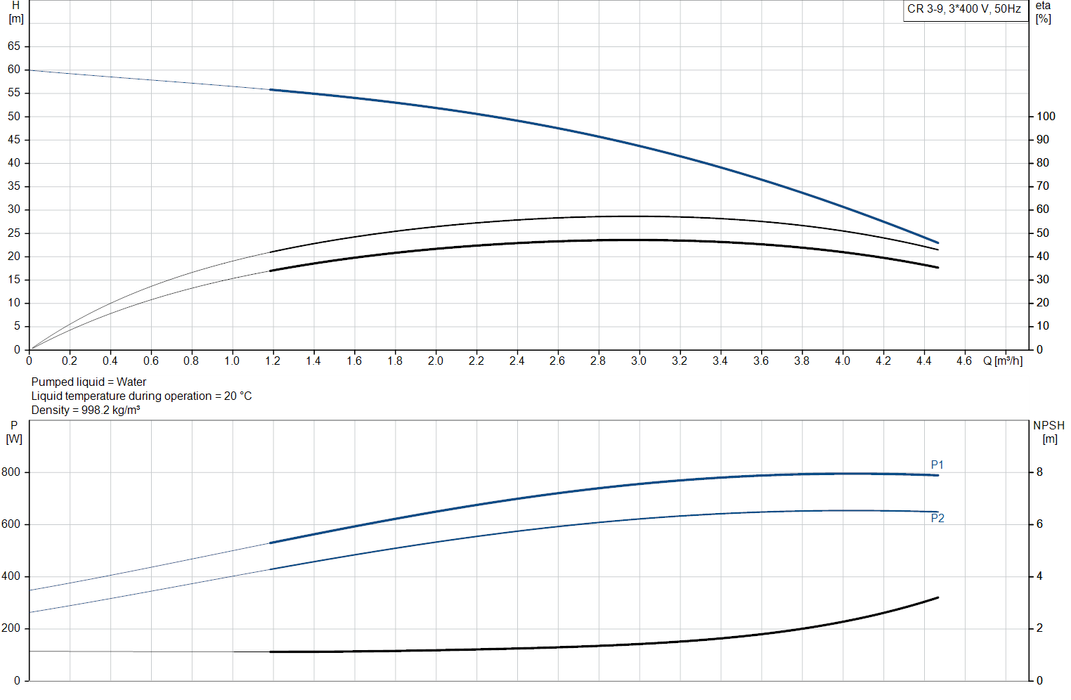

| Rated Flow | 3 m³/h |
| Rated Head | 42.7 m |
| Maximum Head | 59.2 m |
| Pump Orientation | Vertical |
| Number of Stages | 9 |
| Maximum Operating Pressure | 16 bar |
| Liquid Temperature Range | -20 to 120 °C |

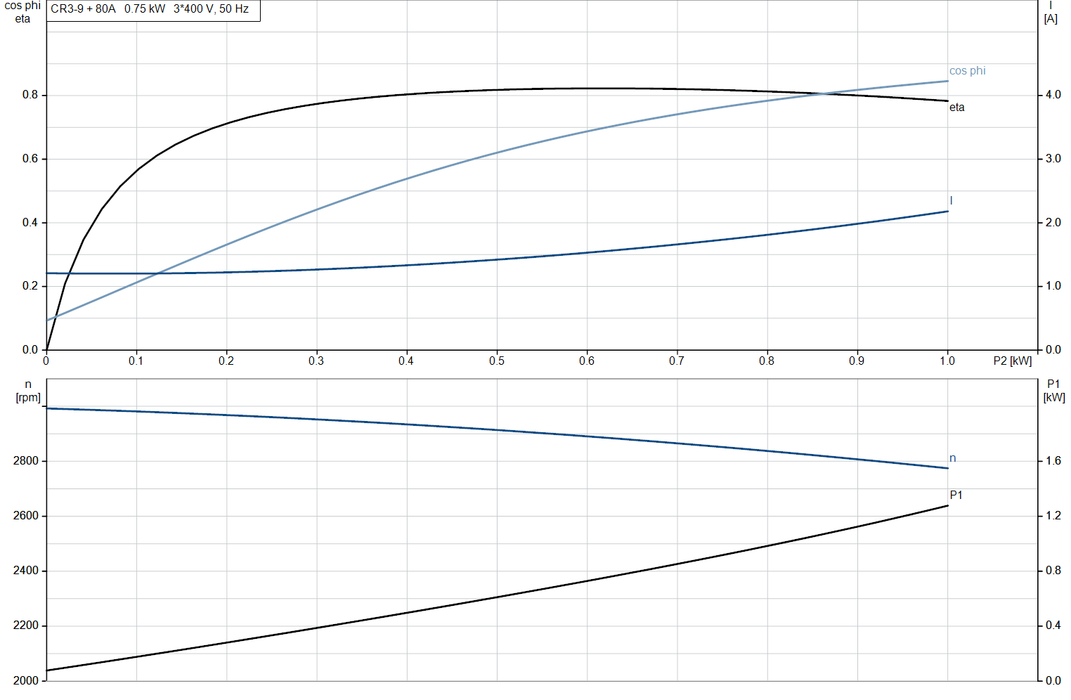

| Rated Motor Power (P2) | 0.75 kW |
| Motor Efficiency Class | IE3 |
| Shaft Seal | HQQE (Single) |
Documentation & Downloads:
| Document | Download |
|---|---|
| Grundfos CR 3-9 A-A-A-E-HQQE Product Datasheet | 📄 Download PDF |
