Grundfos CR 3-3 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 92901532 (1 x 220-230V)
by Grundfos
SKU 92901532
Original price
$1,050.50
-
Original price
$1,050.50
Original price
$1,050.50
$1,050.50
-
$1,050.50
Current price
$1,050.50
📢 For orders over $100, FREE Shipping Australia-wide

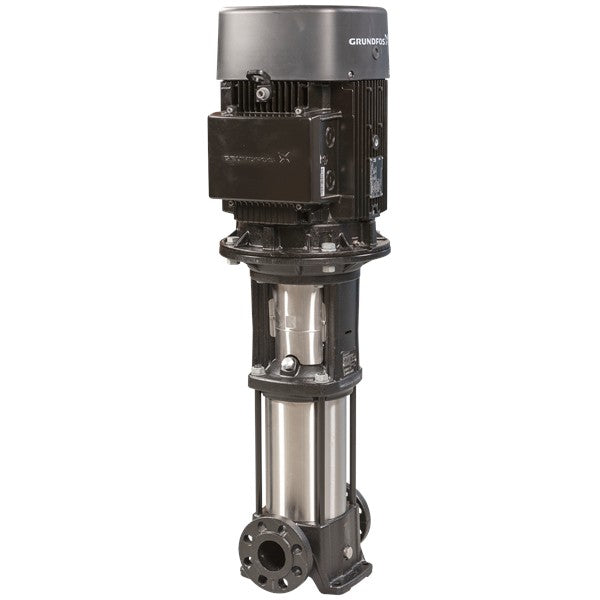

The Grundfos CR 3-3 A-FGJ-A-E-HQQE is a vertical, multistage centrifugal inline pump designed for demanding commercial, industrial, agricultural, and solar water applications. The pump head and base are manufactured from cast iron, while all wetted components are made of stainless steel (EN 1.4301). A cartridge shaft seal ensures high operational reliability, safe handling, and easy maintenance. Power transmission is achieved via a rigid split coupling, and pipe connections are supported through combined DIN, ANSI, and JIS flanges. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.
Key Features & Applications
- Vertical multistage centrifugal pump with inline suction and discharge ports
- Cast iron pump head and base with stainless steel wetted parts
- Cartridge shaft seal (HQQE) for high reliability and easy servicing
- DIN / ANSI / JIS combined flange connections
- Suitable for commercial heating, cooling, and pressure boosting
- Ideal for industrial water supply, water treatment, and wastewater systems
- Compatible with irrigation, agriculture, and solar water solutions
Technical Specifications
| Specification | Details |
|---|---|
| Product Number | 92901532 |
| Rated Flow | 3 m³/h |
| Rated Head | 14 m |
| Maximum Head | 19.6 m |
| Stages / Impellers | 3 / 3 |
| Motor Power | 0.37 kW, 1 × 220–230 V, 50 Hz |
| Maximum Operating Pressure | 25 bar |
| Liquid Temperature Range | -20 °C to 120 °C |
| Approvals | CE, EAC, UKCA, RCM, WRAS, ACS |
| Net / Gross Weight | 25.9 kg / 28.3 kg |
Documentation & Downloads
| Document Type | Download |
|---|---|
| Grundfos Product Datasheet | 📄 Download PDF |
