Grundfos CR 20-5 A-F-A-E-HQQE Vertical Multistage Pump – 96500511 (3 x 380-415DV)
by Grundfos
SKU 96500511
Original price
$3,981.31
-
Original price
$3,981.31
Original price
$3,981.31
$3,981.31
-
$3,981.31
Current price
$3,981.31
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 20-5 is a vertical, non-self-priming, multistage in-line centrifugal pump designed for high-efficiency water transfer in commercial, industrial, and agricultural applications. It features stainless steel impellers with a cast iron pump head and base, DIN flange connections, and an IE3 high-efficiency 3-phase motor, making it suitable for continuous-duty installations in pressurised systems.
Suitable Applications
- Commercial heating and air conditioning
- Commercial and community water pressure boosting
- District heating and cooling
- Industrial water supply and process water transfer
- Industrial wastewater and water treatment systems
- Desalination and reverse osmosis systems
- Surface water intake and drinking water treatment
- Water distribution networks
- Irrigation and pivot systems
- Groundwater transfer
- Solar water boosting and supply solutions
- Solar-powered irrigation and fertigation systems
- Agricultural and livestock watering solutions

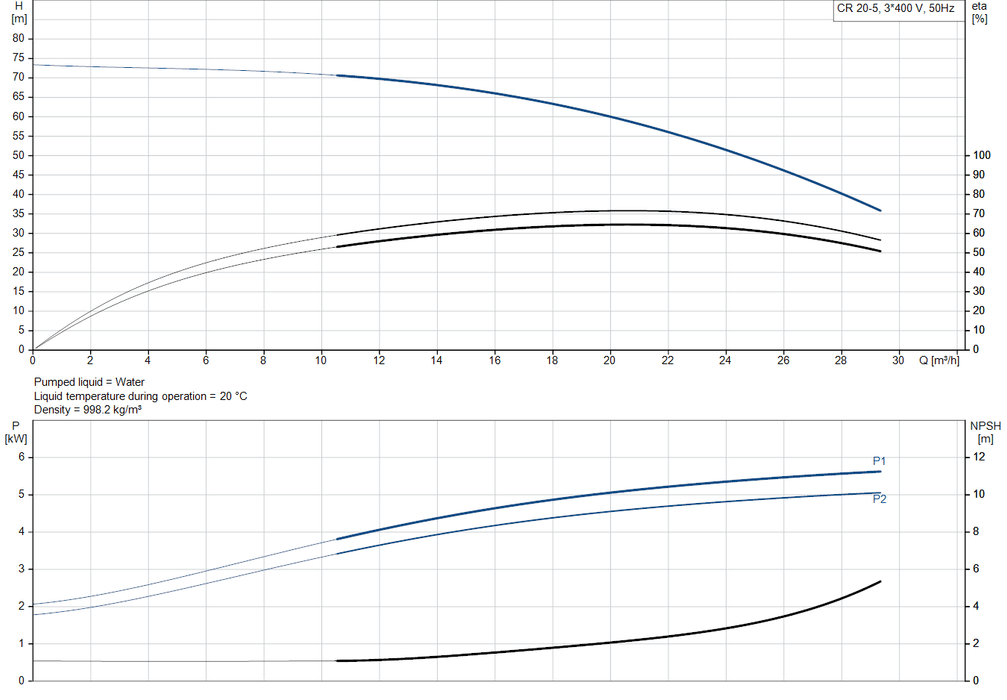

Key Specifications
| Product Number | 96500511 |
| Rated Flow | 21 m³/h |
| Rated Head | 58 m |
| Maximum Head | 73.4 m |
| Number of Stages | 5 |
| Pump Orientation | Vertical |
| Maximum Operating Pressure | 16 bar |
| Liquid Temperature Range | -20 to 120 °C |

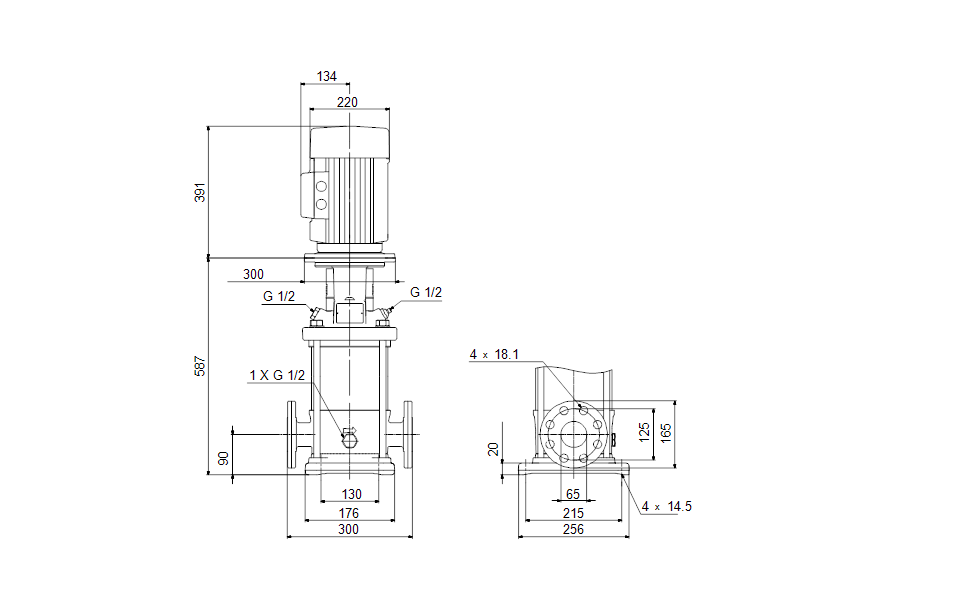

| Connection Type | DIN Flange, DN 50 (PN 25) |

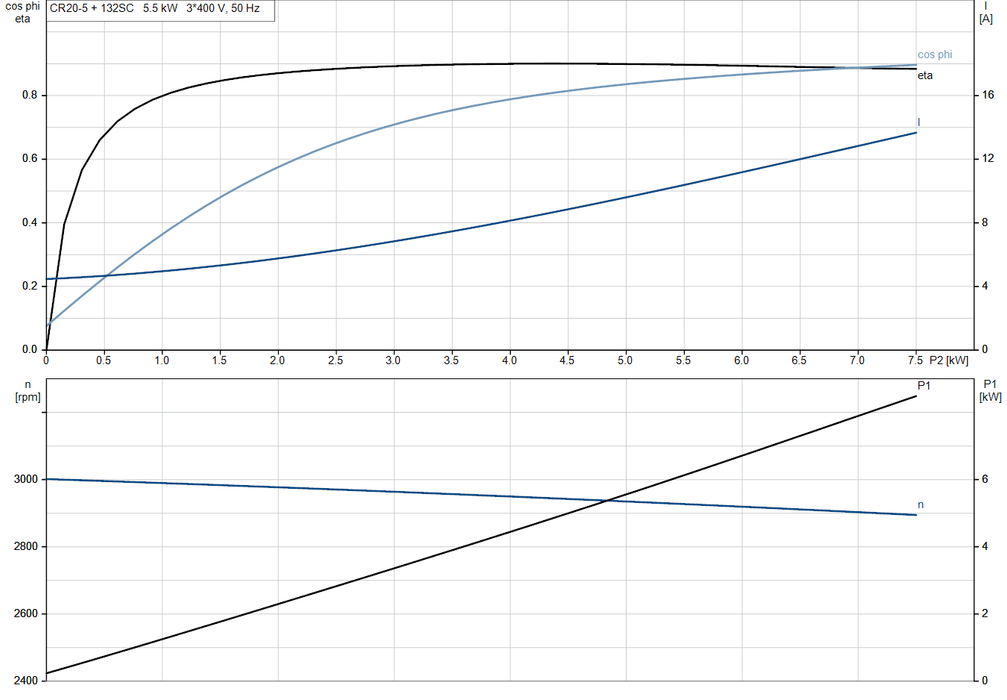

| Rated Motor Power (P2) | 5.5 kW |
| Supply Voltage | 3 × 380–415 V, 50 Hz |
| Motor Efficiency Class | IE3 |
| Shaft Seal | HQQE (Single) |
| Approvals | CE, EAC, UKCA, SEPRO, WRAS, ACS |
| Net Weight | 90 kg |
Documentation & Downloads
| Product Datasheet (PDF) | Download |
