Grundfos CMB-SP 1-36 I-C-A-A-E-A Booster Set Self-Priming Pressure Booster Pump – 93332820
by Grundfos
SKU 93332820
Original price
$934.77
-
Original price
$934.77
Original price
$934.77
$934.77
-
$934.77
Current price
$934.77
📢 For orders over $100, FREE Shipping Australia-wide
Warranty: Manufacturer’s Warranty

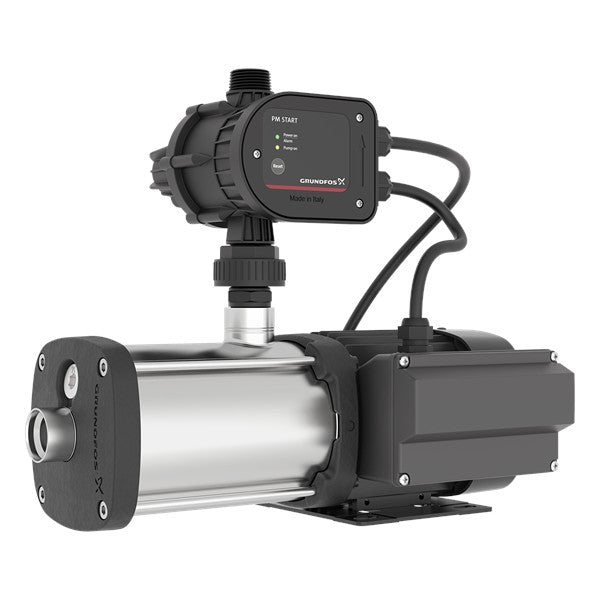

Grundfos CMB-SP 1-36 I-C-A-A-E-A Booster Set Self-Priming Pressure Booster Pump – 93332820
The Grundfos CMB-SP 1-36 I-C-A-A-E-A is a compact self-priming pressure booster pump designed for domestic and light commercial water supply applications. Combining a stainless steel CM self-priming pump with the PM START pressure manager, it delivers reliable automatic pressure boosting with start and stop based on water demand. Featuring a stainless steel pump housing and impellers, AVBE shaft seal, and a 0.3 kW motor, the booster provides a rated flow of 1.2 m³/h and a rated head of 29.7 m. The system includes dry-running protection, an integrated non-return valve, self-priming capability up to 4 metres, and simple plug-and-play installation.
Suitable Applications
- Commercial water pressure boosting
- Domestic water pressure boosting
- Water supply systems
- Rainwater transfer applications
- Light commercial water distribution
Key Specifications
| Product Name | CMB-SP 1-36 I-C-A-A-E-A |
| Product Number | 93332820 |
| EAN | 5715471047304 |
| Pump Type | Self-Priming Pressure Booster Pump |
| Rated Flow | 1.2 m³/h |
| Rated Head | 29.7 m |
| Speed (Pump Data) | 2900 rpm |
| Stages / Impellers | 4 Impellers |
| Shaft Seal | AVBE |
| Maximum Operating Pressure | 10 bar |
| Connections | 1" Rp Inlet / 1" G Outlet, ISO 228-1, PN 10 |
| Base / Head Material | Stainless Steel (EN 1.4301 / AISI 304) |
| Impeller Material | Stainless Steel (EN 1.4301 / AISI 304) |
| Motor Power (P2) | 0.3 kW |
| Voltage | 1 x 220–230 V |
| Frequency | 50 Hz |
| Rated Current | 2.20–2.00 A |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Net / Gross Weight | 13.4 kg / 16.1 kg |
| Approvals | CE, RCM, CULUS DW NSF61, WEEE |
Documentation & Downloads
| CM Booster - Self-Priming (Quick Guide) | Download |
| CMB, CMB-SP, PM START, PM PLUS (Installation and Operating Instructions) | Download |
