Grundfos Auto Coupling Set - Dry Installation, DN 150 Inlet / DN 150 Outlet - 96090995
by Grundfos
SKU 96090995
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$1,981.96
$1,981.96
-
$1,981.96
Current price
$1,981.96
๐ข For orders over $100, FREE Shipping Australia-wide

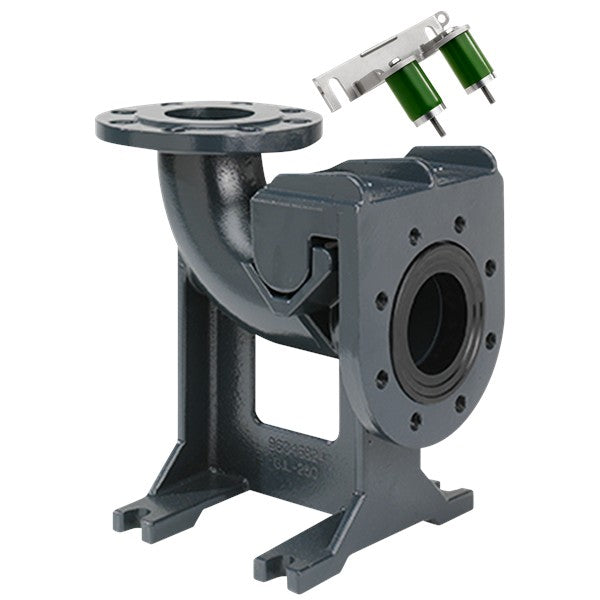

The Auto Coupling Set is designed for dry installation (vertical or horizontal) and submersible pumps with an autocoupling system. The kit includes a base plate, guide claw, upper guide rail holder, gasket for pipework connection*, and bolts. For pump outlet flanges sized DN 250 and above, the guide claw is fitted to the pump outlet flange when ordered together with a pump. Anchor bolts are not included.
Key Specifications:
| Product Model | Auto Coupling Set |
| Product Number | 96090995 |
| Material | Cast iron, EN-GJL-250, ASTM A48 Class 250B |
| Surface treatment | Powder coated |
| Gasket | Rubber, NBR |
| Maximum operating pressure | 10 bar |
| Inlet connection | DIN, DN 150 |
| Outlet connection | DIN, DN 150 |
| Flange pressure class | PN10/16 |
| Flange standard | DIN EN 1092-1 |
| Number of anchor bolts | 0 |
| Number of base units | 1 |
| Number of washers | 0 |
| Number of nuts | 8 |
| Number of gaskets | 1 |
| Number of profile gaskets | 1 |
| Number of guide claws | 1 |
| Number of screws | 8 |
| Number of guide rail holders | 1 |
| Net weight | 89.4 kg |
| Gross weight | 89.4 kg |
| Shipping volume | 0.144 mยณ |
| Fits to following products | SE/SL |
| Danish VVS No. | 391299718 |
| Country of origin | PL |
| Custom tariff no. | 8483609031 |
Documentation & Downloads:
| Document | Download |
|---|---|
| SUSTAINABLE WATER TREATMENT PROJECTS | ๐ Download PDF |
| Water Utility range (Product brochure) | ๐ Download PDF |
