Ebara JEXM 80 Self-Priming Jet Pump Centrifugal – 166504-7500
by Ebara
SKU 166504-7500
Original price
$598.95
-
Original price
$598.95
Original price
$598.95
$598.95
-
$598.95
Current price
$598.95
📢 For orders over $100, FREE Shipping Australia-wide

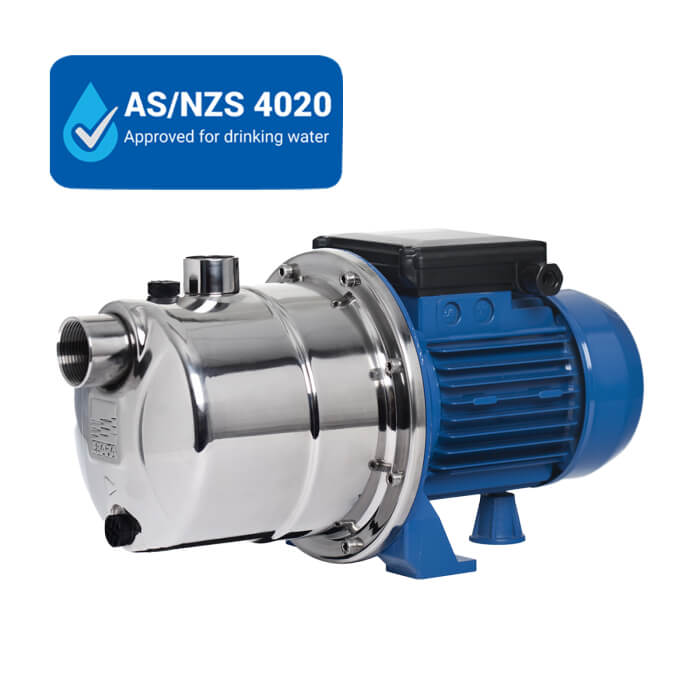

The Ebara JEXM 80 is a single-phase, self-priming jet pump designed for domestic water supply and pressure boosting applications. Constructed with a robust 304 stainless steel pump casing, this unit features a 304 stainless steel impeller for enhanced durability. It is equipped with a Noryl venturi and diffuser, and a carbon/ceramic mechanical seal for reliable performance. The pump has a maximum liquid temperature of 45°C and is supplied complete with a 1.8 m power cable and 3-pin plug.
Suitable Applications
- Domestic water supply and pressure boosting
- Small-scale garden irrigation
- Water transfer from tanks and wells
- Vehicle washing
- Treatment of clean water in general
Key Specifications
| Product Name | JEXM 80 |
| Product Number | 166504-7500 |
| Pump Type | Self-Priming Jet Pump (Surface Pump) |
| Discharge / Suction Size | 25 mm / 32 mm |
| Motor Power (P2) | 0.6 kW |
| Voltage | 230V |
| Phase | Single phase (1 ph) |
| Cable Length | 1.8 m (with moulded 3-pin plug) |
| Maximum Liquid Temperature | 45°C |
| Maximum Working Pressure | 0.6 MPa (6 bar) |
| Connections | Suction: G1¼" (UNI ISO 228); Discharge: G1" (UNI ISO 228) |
| Pump Casing Material | 304 Stainless Steel |
| Impeller Material | 304 Stainless Steel |
| Venturi & Diffuser Material | Noryl |
| Shaft Seal | Carbon/Ceramic Mechanical Seal |
| Packing Size (W x D x H) | — |
| Shipping Weight | — |
| Warranty | 2 years (Parts & Labour) |
| Approvals | CE |
Documentation & Downloads
| Ebara JESX/JEX/AG Jet Pumps – Instruction Manual | Download |
| Ebara JESX/JEX/MATRIX Boosters – Product Brochure | Download |
