Ebara CDX 200/20 Single Impeller Centrifugal Pump – 163520-0004 – 1.5 kW – 400V – 3 Phase
by Ebara
SKU 163520-0004
Original price
$1,207.80
-
Original price
$1,207.80
Original price
$1,207.80
$1,207.80
-
$1,207.80
Current price
$1,207.80
📢 For orders over $100, FREE Shipping Australia-wide

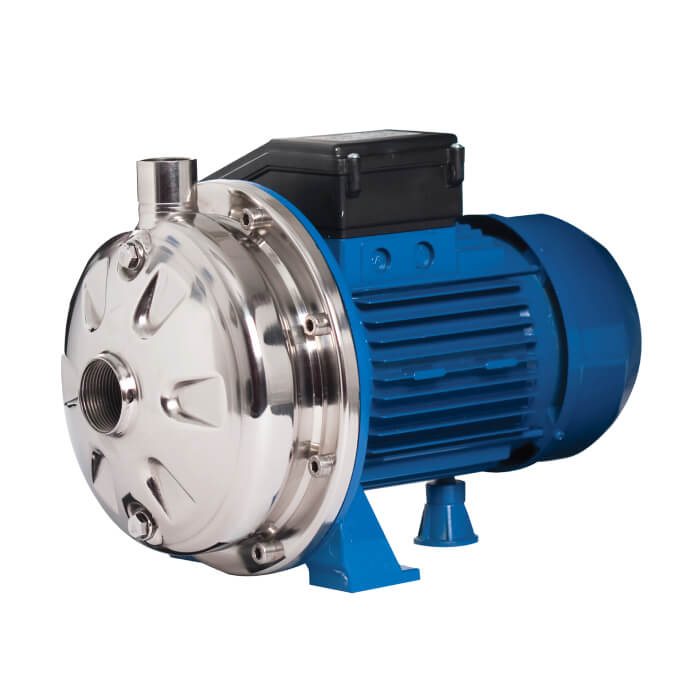

The Ebara CDX 200/20 is a three-phase, single impeller centrifugal pump designed for domestic water supply and pressure boosting applications requiring higher flow rates. Constructed with a robust AISI 304 stainless steel pump casing and impeller, this unit features a carbon/ceramic/NBR mechanical seal for reliable performance. The pump has a maximum liquid temperature of 90°C and a maximum working pressure of 8 bar. Three phase motors require external overload protection to be provided by the installer.
Suitable Applications
- Domestic water supply and pressure boosting
- Small-scale garden irrigation
- Water transfer from tanks and wells
- Heating, ventilation, air-conditioning and cooling
- Handling of clean water in general
- Washing plants and membrane filtration
- Cooling towers
Key Specifications
| Product Name | CDX 200/20 |
| Product Number | 163520-0004 |
| Pump Type | Single Impeller Centrifugal Pump (Closed impeller) |
| Discharge / Suction Size | 25 mm / 40 mm (G1" discharge, G1½" suction) |
| Motor Power (P2) | 1.5 kW (2.0 HP) |
| Voltage | 400V |
| Phase | Three phase (3 ph) |
| Maximum Flow Rate | Up to 15 m³/h |
| Maximum Head | Up to 41 m |
| Maximum Liquid Temperature | 90°C (110°C with optional high temperature seal) |
| Minimum Liquid Temperature | -10°C |
| Maximum Working Pressure | 8 bar |
| Connections | Suction: G1½" (UNI ISO 228); Discharge: G1" (UNI ISO 228) |
| Pump Casing Material | AISI 304 Stainless Steel |
| Impeller Material | AISI 304 Stainless Steel (Closed type) |
| Casing Cover Material | AISI 304 Stainless Steel |
| Shaft Material (wetted parts) | AISI 303 Stainless Steel | Shaft Seal | Standard: Carbon/Ceramic/NBR |
| Motor Efficiency Class | IE3 (Three phase, from 0.75 kW up to 1.8 kW) |
| Number of Poles | 2 |
| Protection Degree | IP55 |
| Insulation Class | Class F (Class B for temperature rise) |
| Motor Bracket Material | Aluminium |

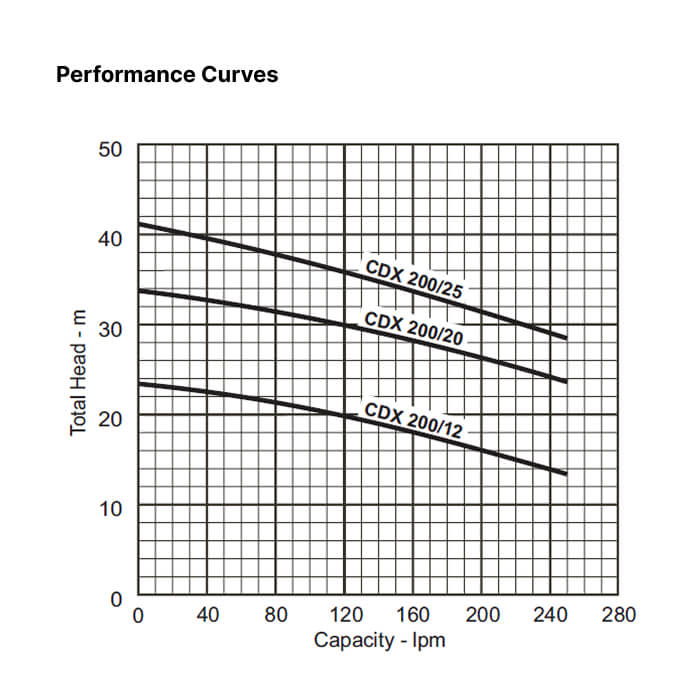

Performance Data
| Flow Rate (L/min) | 0 | 50 | 80 | 90 | 110 | 130 | 160 | 180 | 210 | 250 |
| Flow Rate (m³/h) | 0 | 3.0 | 4.8 | 5.4 | 6.6 | 7.8 | 9.6 | 10.8 | 12.6 | 15.0 |
| Total Head (m) | — | — | 31.0 | 30.6 | 29.7 | 28.9 | 27.5 | 26.6 | 25.1 | 23.0 |
