Ebara AGC 2.00 M Self-Priming Jet Pump Centrifugal – 112020-7600A
by Ebara
SKU 112020-7600A
Original price
$1,128.60
-
Original price
$1,128.60
Original price
$1,128.60
$1,128.60
-
$1,128.60
Current price
$1,128.60
📢 For orders over $100, FREE Shipping Australia-wide

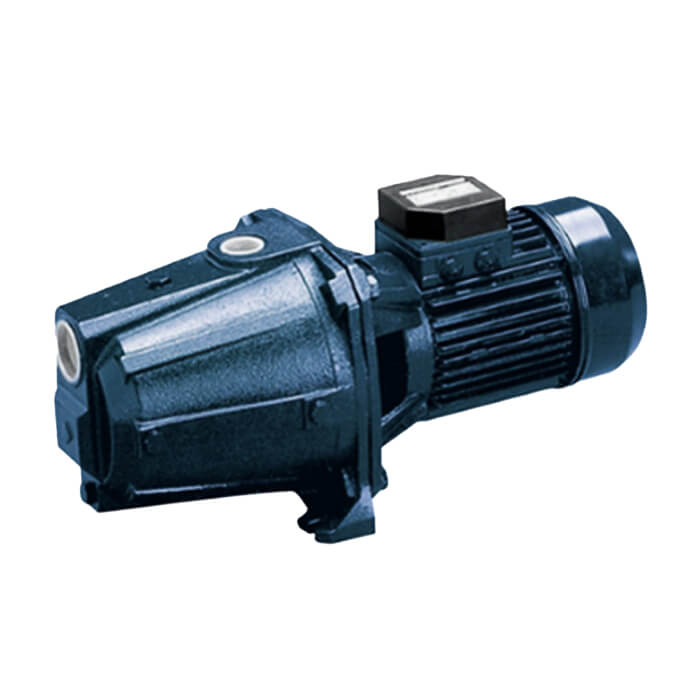

The Ebara AGC 2.00 M is a single-phase, self-priming jet pump designed for domestic water supply and pressure boosting applications. Constructed with a robust cast iron casing, this unit features a brass impeller for enhanced durability. It is equipped with a Noryl venturi and diffuser, and a carbon/ceramic mechanical seal for reliable performance. The pump has a maximum liquid temperature of 45°C and is supplied complete with a 1.8 m power cable. Please note that a 15 Amp plug is supplied loose with this model.
Suitable Applications
- Domestic water supply and pressure boosting
- Small-scale garden irrigation
- Water transfer from tanks and wells
- Vehicle washing
- Treatment of clean water in general
Key Specifications
| Product Name | AGC 2.00 M |
| Product Number | 112020-7600A |
| Pump Type | Self-Priming Jet Pump (Surface Pump) |
| Discharge / Suction Size | 25 mm / 40 mm |
| Motor Power (P2) | 1.5 kW |
| Voltage | 230V |
| Phase | Single phase (1 ph) | Cable Length | 1.8 m (15 Amp plug supplied loose) |
| Maximum Liquid Temperature | 45°C |
| Maximum Working Pressure | 1.0 MPa (10 bar) |
| Connections | Suction: G1½" (UNI ISO 228); Discharge: G1" (UNI ISO 228) |
| Pump Casing Material | Cast Iron |
| Impeller Material | Brass |
| Venturi & Diffuser Material | Noryl |
| Shaft Seal | Carbon/Ceramic Mechanical Seal |
| Packing Size (W x D x H) | — |
| Shipping Weight | — |
| Warranty | 2 years (Parts & Labour) |
| Approvals | CE |
Documentation & Downloads
| Ebara JESX/JEX/AG Jet Pumps – Instruction Manual | Download |
| Ebara AGA/AGC – Data Sheet | Download |
| Ebara AGA/AGC – Technical Data | Download |
| Ebara General Instruction Manual | Download |
