Davey XJ90T Water Pressure System with Torrium2 – XJ90T
📢 For orders over $100, FREE Shipping Australia-wide
The Davey XJ90T is a compact, single‑stage jet assisted centrifugal pump with a Torrium2 controller, designed for home pressure systems drawing water from below pump level (e.g., buried or partially buried tanks). It delivers a maximum flow of 90 L/min and a maximum head of 46 m. The pump features a glass filled noryl casing, a glass filled polycarbonate impeller, a carbon/ceramic mechanical seal, and a 303 stainless steel shaft. The single‑phase TEFC motor (1.1 kW P2, IP55, Class F) includes built‑in thermal overload protection. The Torrium2 controller provides constant pressure, loss of prime protection, and adaptive technology to prevent cycling. Inlet size is 1¼” BSP(F), outlet 1” BSP(M). Complies with AS/NZS 4020 for drinking water contact.
Suitable Applications
- Household and domestic water supply
- Farming and agricultural water systems
- Irrigation and turf watering systems
- Automatic general water transfer
- Domestic irrigation from shallow wells or sand spears
- Overhead or high tank filling
- Pressure boosting
Key Specifications
| Product Name | Davey XJ90T Water Pressure System with Torrium2 |
|---|---|
| Product Number | XJ90T |
| EAN | — |
| Pump Type | Single‑stage jet assisted centrifugal pump with Torrium2 controller |
| Maximum Flow | 90 L/min (5.4 m³/h) |
| Maximum Head | 46 m |
| Maximum Suction Lift | 7 m |
| Maximum System Pressure | 480 kPa |
| Maximum Water Temperature | 50 °C |
| Minimum Water Temperature | 1 °C |
| Maximum Ambient Temperature | 50 °C |
| Inlet Connection | 1¼” BSP(F) |
| Outlet Connection | 1” BSP(M) |
| Pump Casing Material | Glass filled noryl |
| Impeller Material | Glass filled polycarbonate |
| Pump Shaft Material | 303 stainless steel |
| Mechanical Seal | Carbon (rotating) / Ceramic (stationary) / Nitrile rubber |

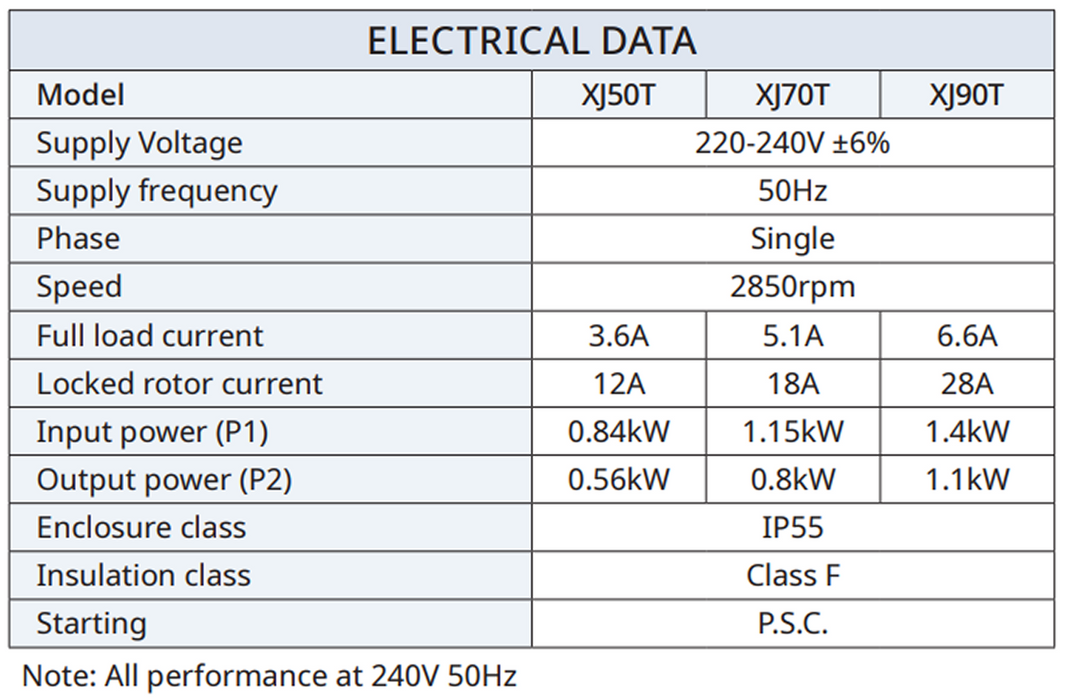

| Motor Power (P2) | 1.1 kW |
| Motor Power (P1) | 1.4 kW |
| Voltage / Frequency | 220‑240 V, 50 Hz |
| Phase | Single |
| Full Load Current | 6.6 A |
| Locked Rotor Current | 28 A |
| Insulation Class | F |
| Enclosure Class | IP55 |
| Motor Speed | 2850 rpm |
| Starting Method | Permanent Split Capacitor (P.S.C.) |

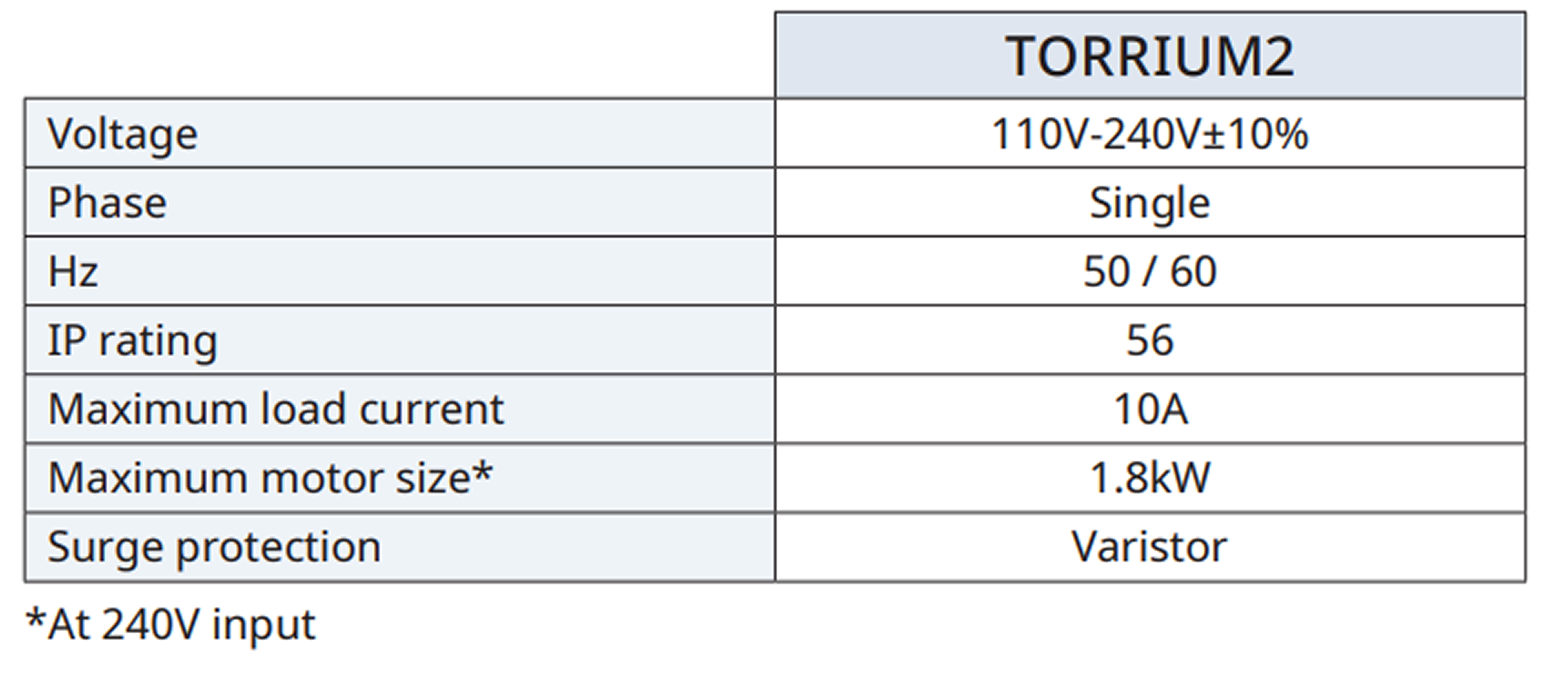

| Torrium2 Controller | Voltage: 110‑240V ±10%, IP56, Max load current 10A |
| Net Weight | 15 kg |

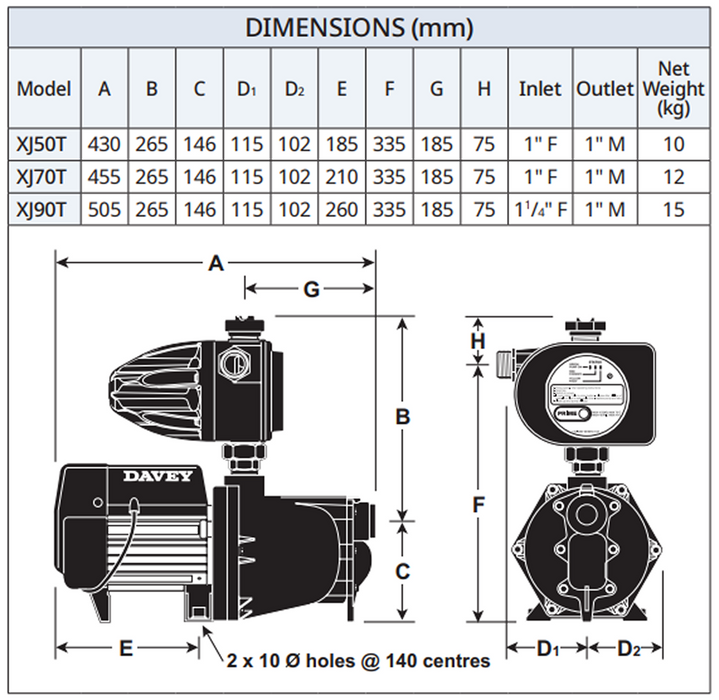

| Dimensions (L × W × H) | 505 × 265 × 185 mm (approx.) |
| Warranty | 2 years |
| Approvals | AS/NZS 4020, ISO 9001, ISO 14001 |
Documentation & Downloads
| XJ Water Pressure System Datasheet | Download |
| Torrium2 Water Pressure Systems Installation & Operating Instructions | Download |
Installation Note: Installations with suction lift require a good quality foot valve – remove in‑built check valve. Prime by filling pump body and suction line through priming plug hole. For total system pressures of 600 kPa with mains pressure exceeding 100 kPa, a break tank or Davey HS system is required.
