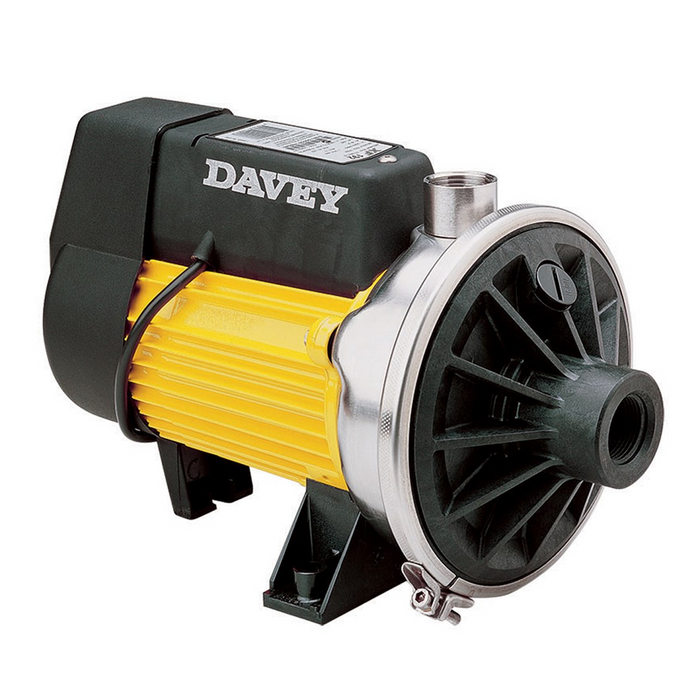

Davey XF192 Electric Transfer Pump – 71301
📢 For orders over $100, FREE Shipping Australia-wide
The Davey XF192 is a robust, compact twin‑stage centrifugal transfer pump designed for clean, non‑volatile liquids without fibres or solids. It delivers a maximum flow of 190 L/min and a maximum head of 33 m. The pump features a corrosion‑resistant 304 stainless steel casing, glass filled polycarbonate closed‑vane impellers, and a carbon/ceramic mechanical seal. The single‑phase TEFC motor (0.80 kW P2, IP55, Class F) includes built‑in thermal overload protection with automatic reset. Inlet and outlet size is 1” BSP(F). The pump is supplied with a 2 m power lead and Australian 3‑pin plug. Suitable for irrigation, aquaculture, hydroponics, water transfer, and washdown applications.
Suitable Applications
- Irrigation
- Aquaculture
- Hydroponics
- Water transfer
- Washing systems
Key Specifications
| Product Name | Davey XF192 Electric Transfer Pump |
|---|---|
| Product Number | 71301 |
| Model Number | XF192 |
| EAN | — |
| Pump Type | Twin‑stage centrifugal transfer pump |
| Maximum Flow | 190 L/min (11.4 m³/h) |
| Maximum Head | 33 m |
| Maximum Suction Lift | 7.5 m |
| Maximum Water Temperature | 50 °C |
| Minimum Water Temperature | 1 °C |
| Maximum Ambient Temperature | 50 °C |
| Inlet Connection | 1” BSP(F) |
| Outlet Connection | 1” BSP(F) |
| Pump Casing Material | 304 stainless steel |
| Impeller Material | Glass filled polycarbonate |
| Pump Shaft Material | 304 stainless steel |
| Mechanical Seal | Ceramic (stationary) / Carbon (rotating) / Nitrile rubber |
| Motor Power (P2) | 0.80 kW |
| Motor Power (P1) | 1.15 kW |
| Voltage / Frequency | 220‑240 V, 50 Hz |
| Phase | Single |
| Full Load Current | 5.2 A |
| Locked Rotor Current | 18.0 A |
| Insulation Class | F |
| Enclosure Class | IP55 |
| Motor Speed | 2850 rpm |
| Starting Method | Permanent Split Capacitor (P.S.C.) |
| Power Lead Length | 2 m (with 10A Australian 3‑pin plug) |
| Net Weight | 8.8 kg |
| Dimensions (L × W × H) | 350 × 220 × 195 mm |
| Approvals | ISO 9001, ISO 14001 |
Documentation & Downloads
| XF Electric Transfer Pumps Datasheet | Download |
| XF Electric Transfer Pumps Installation & Operating Instructions | Download |
Installation Note: Installations with suction lift require a good quality foot valve to avoid loss of prime. Prime by filling pump body and suction line through priming plug hole located above suction inlet.
