Grundfos UNILIFT APG.40.10.A1 Single phase with float switch – 92616914
📢 For orders over $100, FREE Shipping Australia-wide

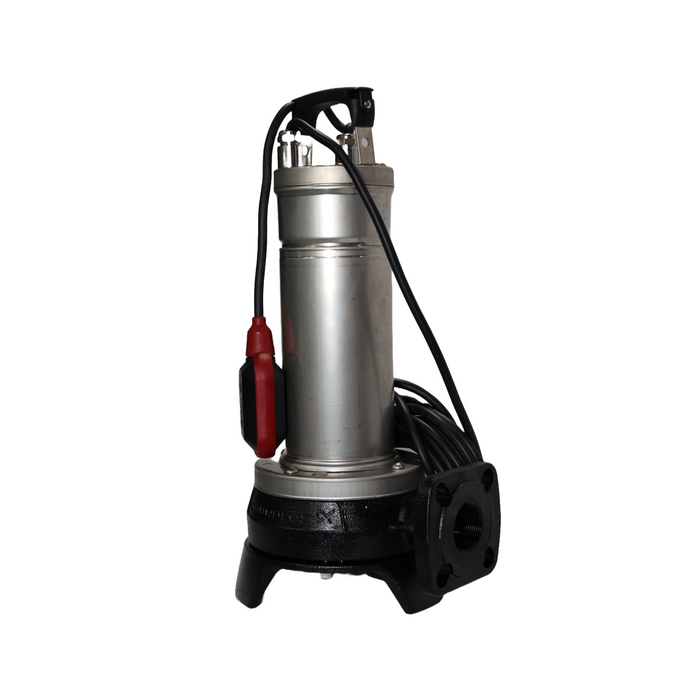

The Grundfos UNILIFT APG.40.10.A1 is a single-stage submersible wastewater pump designed for pumping domestic wastewater in pressurised systems. It is equipped with a robust grinder system that reduces destructible solids into small particles, enabling efficient transport through small-diameter pipes.
UNILIFT APG pumps are ideal for sparsely populated areas where gravity-based sewage systems are not available. Typical applications include one- and two-family houses, residential building services, and installations with significant terrain-level differences. The pump supports submerged installation either on an auto-coupling system or as a free-standing unit.
Constructed from wear-resistant materials such as cast iron and stainless steel, the pump ensures long service life and reliable operation. A smooth surface finish helps prevent dirt accumulation, while corrosion-resistant screws allow for easy servicing. For residential building services and light commercial applications, the three-phase version is recommended.
Key Specifications:
| Product model | UNILIFT APG.40.10.A1 |
| Product number | 92616914 |
| Rated flow | 2 l/s |
| Rated head | 15 m |
| Impeller type | Grinder system |
| Maximum particle size | 40 mm |
| Pump housing material | Cast iron (EN-GJL-200) |
| Motor housing material | Stainless steel (AISI 304) |
| Outlet connection size | DN 32/40 (1 1/2 inch) |
| Maximum installation depth | 7 m |
| Power input (P1) | 1.3 kW |
| Rated power (P2) | 1 kW |
| Rated voltage | 1 × 220–240 V |
| Enclosure class | IP68 |
| Float switch | Yes |
| Net weight | 23.2 kg |
Documentation & Downloads:
| Document | Download |
|---|---|
| Grundfos Wastewater Products – Product Brochure | 📄 Download PDF |
| UNILIFT AP/AP Basic Range | 📄 Download PDF |
| Grundfos UNILIFT APG – Product Brochure | 📄 Download PDF |
| UNILIFT APG – Installation & Operating Instructions | 📄 Download PDF |
| UNILIFT APG – Safety Instructions | 📄 Download PDF |
| UNILIFT APG – Service Instructions | 📄 Download PDF |
