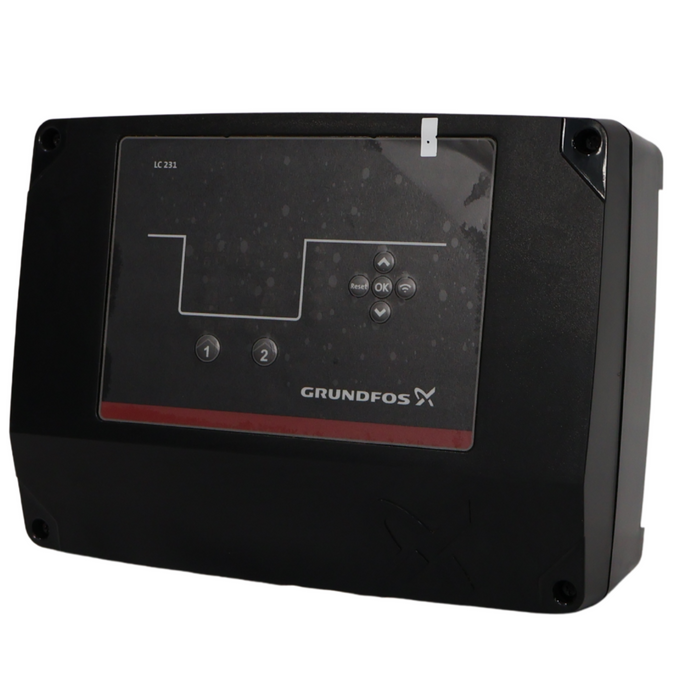

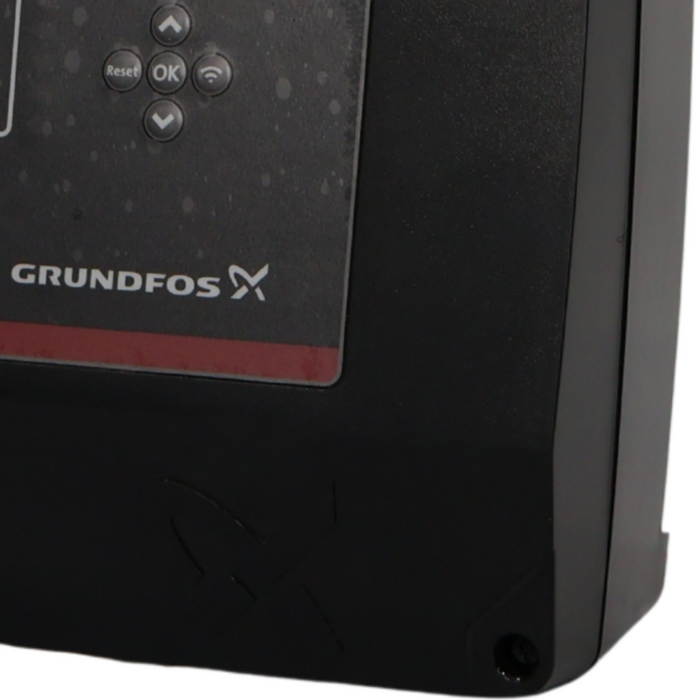

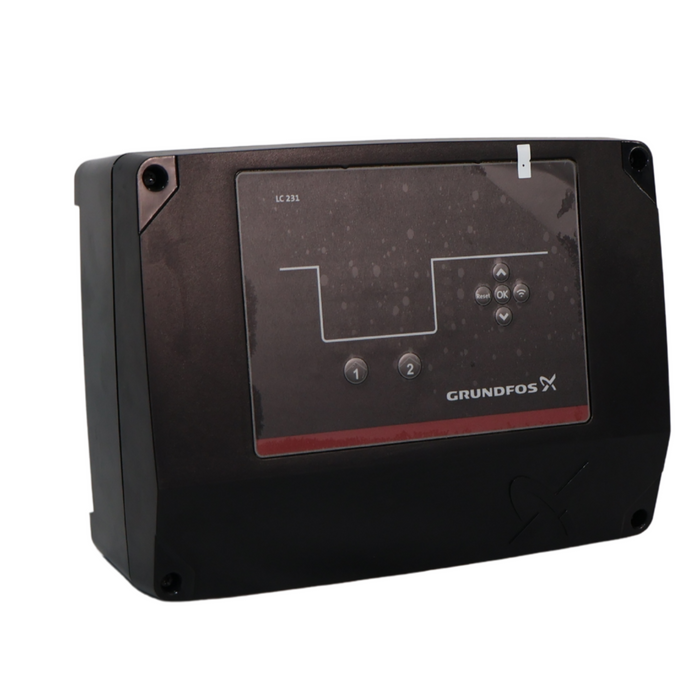

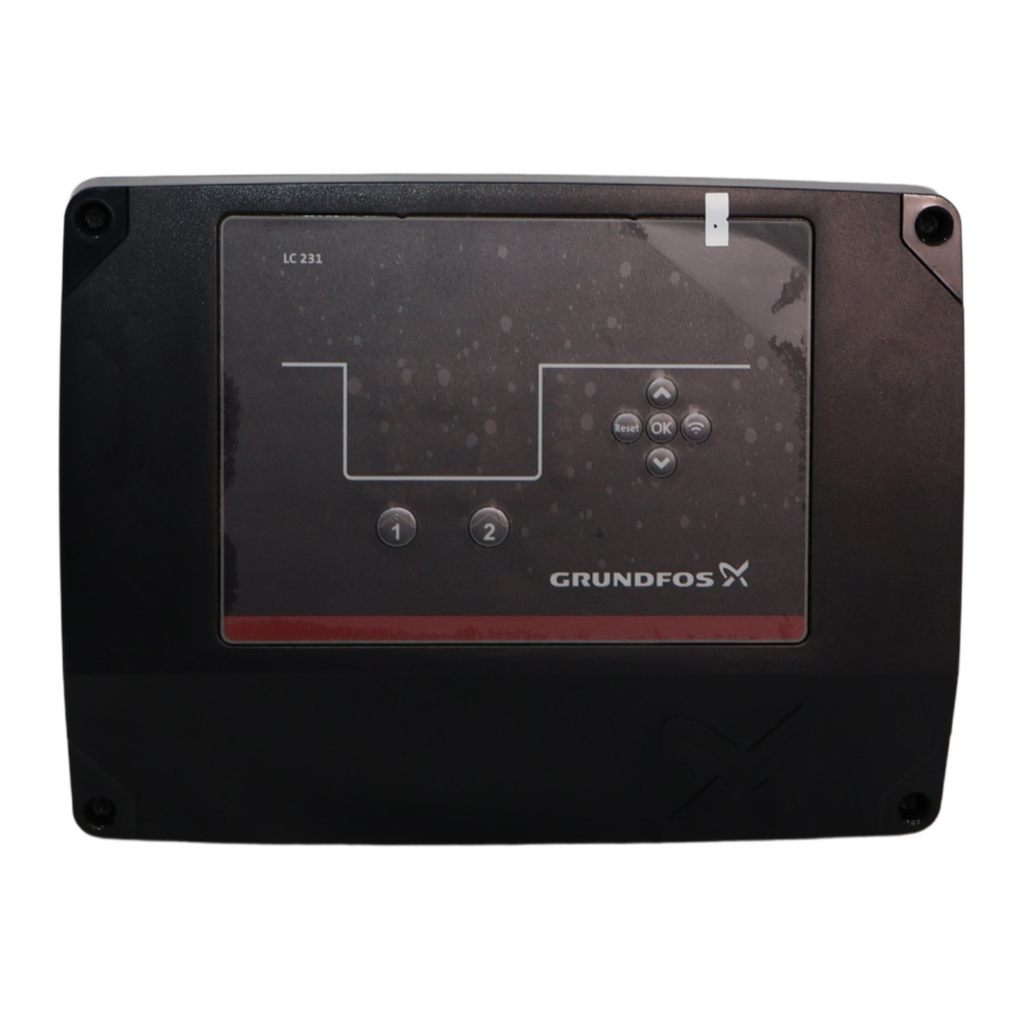

Grundfos LC 231 1 x 1-12 DOL PI Pumps Controller
by Grundfos
SKU 99369644
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$1,250.00
$1,250.00
-
$1,250.00
Current price
$1,250.00
📢 For orders over $100, FREE Shipping Australia-wide
The LC 231 pump controllers are designed for level control, monitoring and protection of Grundfos pumping systems one pumps or two pumps starting direct-on-line.
Features include:
• Supports both empty and fill applications
• >For use with analogue (eg level transmitter) or digital sensor (eg float switch)
• Grundfos Go support via Bluetooth
• Usage, alarm and warning log
• BMS options (CIM module required)
| Product Name | LC 231 1 x 1-12 DOL PI |
|---|---|
| Product Number | 99369644 |
| Suitable For | Water treatment – Commercial buildings, Drinking water treatment, Wastewater transport, Flood control, Wastewater treatment |
| Number of Pumps | 1 |
| Method of Start | Direct-on-line (DOL) |
| Rated Voltage | 1 x 110–240 V (3 x 200–460 V) |
| Rated Current | 1–12 A |
| Mains Frequency | 50 / 60 Hz |
| Enclosure Class | IP54 |
| Cabinet Material | Plastic |
| Ambient Temperature Range | -25 … 45 °C |
| Cabinet Mounting | Wall mounting |
| Earth Connection | N, PE |
| Back-up Fuse Required | 16 A |
| Current Measurement | Yes |
| Required Cos Phi (Full Load) | 0.86–1.00 |
| Net Weight | 1.78 kg |
| Gross Weight | 2.56 kg |
| Shipping Volume | 0.015 m³ |
| Country of Origin | Denmark |
| Approvals | CE, EAC, UKCA, MOROCCO, RCM |
