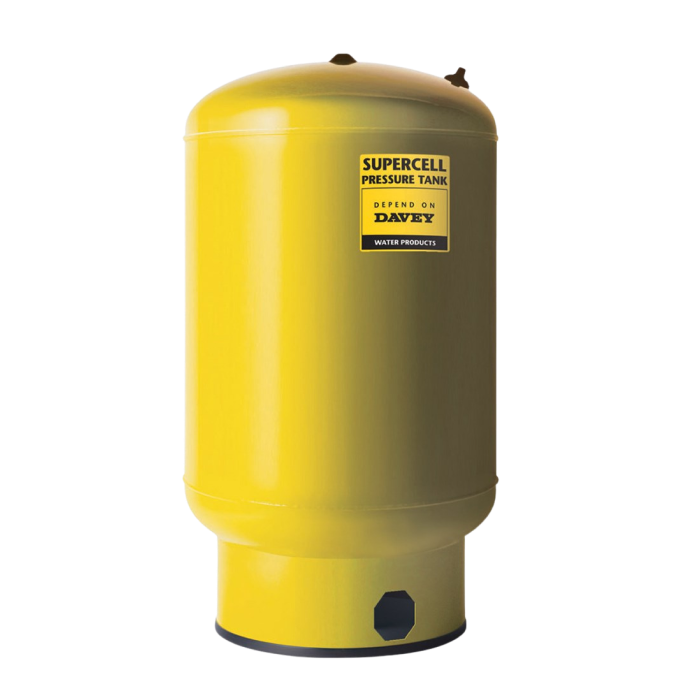

Davey Supercell 200G 200L 1000kPa Pressure Tank – 24200G

The Davey Supercell 200L Pressure Tank (24200G) is designed for high-performance household, farm, and industrial water pressure systems. This tank ensures consistent water supply and protects pumps from rapid cycling and water hammer issues.

Features & Benefits:

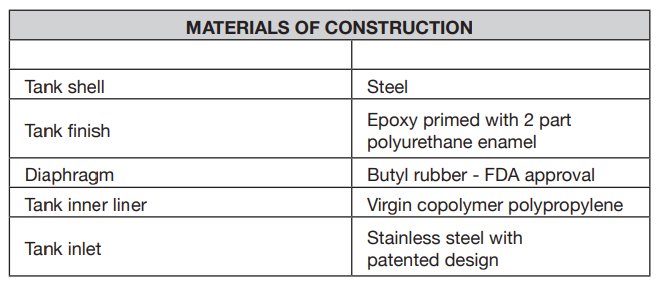

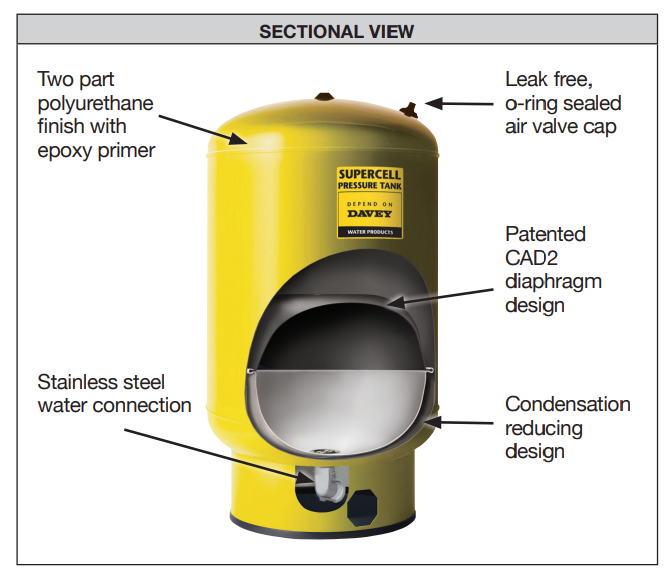

• Patented CAD2 captive diaphragm held firmly in a central position for longer life
• Heavy-duty butyl diaphragm meets worldwide potable water standards
• Safe virgin copolymer polypropylene liner separates water from the steel shell
• Deep drawn steel shell with epoxy primer and 2-part polyurethane enamel finish
• Patented stainless steel water connection – leak-free and maintenance-free
• Individually tested for guaranteed reliable operation
• Complies with ISO 9001, NSF 61, CE/PED, WRAS, ACS, Watermark, and Gost standards

Applications:

• Water pressure systems
• Hydronic heating expansion tanks
• Water hammer arrestor systems

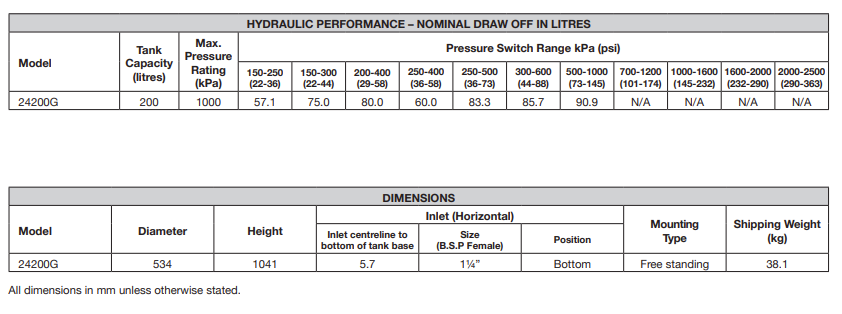

Technical Specifications:

Operating Limits:

• Maximum water temperature: 90°C
• Minimum water temperature: 1°C
• Maximum operating pressure: 1000 kPa (145 psi)
• Tank air pre-charge: 160 kPa

Installation & Pre-Charge:

• Ensure all water pressure is released before installation or maintenance
• Pre-charge should be set 15 kPa (2 psi) below cut-in pressure for pressure switch controlled pumps
• Install in a covered, dry position and allow access for maintenance
• Thread seal tape recommended; do not overtighten fittings

Warnings & Cautions:

• Do not exceed maximum tank pressure rating; install a pressure relief valve if necessary
• Never over-charge the tank; use air at ambient temperature only
• Inspect for damage or leaks before and during air replenishment
• If diaphragm fails, the whole tank must be replaced (non-serviceable)

Troubleshooting Tips:

• Rapid pump cycling or decreased draw-off may indicate loss of air charge or punctured diaphragm
• Check pressure switch and pre-charge if water flow stops unexpectedly
• Ensure valves and piping are leak-free
