DOSTEC High Volume Injection Pump – Diaphragm Head – DTEC50-700D – 520-685 L/hr – 700 kPa – Single or 3 Phase
SKU
Original price
$8,881.13
-
Original price
$9,825.75
Original price
$8,881.13
$8,881.13
-
$9,825.75
Current price
$8,881.13
📢 For orders over $100, FREE Shipping Australia-wide

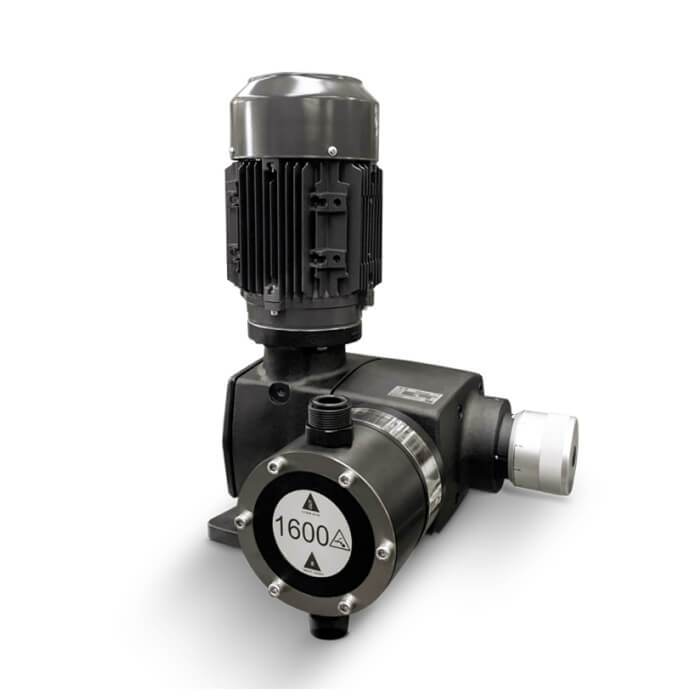

The DOSTEC® High Volume Injection Pump features a diaphragm head design with 30-100% flow adjustment. Capable of dosing from 520 to 685 L/hr with a maximum pressure of 700 kPa. Available in both single phase and 3 phase configurations. DOSTEC 50 series features 32 mm connections for suction and delivery. Injection rate of diaphragm heads will vary with line pressure and viscosity of the solution.
Suitable Applications
- High volume chemical dosing in water treatment
- Corrosive chemical handling
- Industrial process dosing
Key Specifications
| Product Name | DOSTEC High Volume Injection Pump – Diaphragm Head |
| Product Number | DTEC50-700D |
| Product Type | High Volume Injection Pump – Diaphragm Head |
| Maximum Injection Rate Range | 520 – 685 L/hr |
| Maximum Injection Pressure | 700 kPa |
| Adjustment Range | 30 – 100% of capacity |
| Phase Options | Single phase or 3 phase |
| Series | DOSTEC 50 |
| Connections | 32 mm for suction and delivery |
Documentation & Downloads
| ITC DOSTEC Range – Brochure (EN/ES/FR) | Download PDF |
| ITC DOSTEC-50 – User Manual (EN) | Download PDF |
