DOSTEC High Volume Injection Pump – Diaphragm Head – DTEC40-200D – 173-209 L/hr – 800 kPa – Single or 3 Phase
SKU
Original price
$4,818.00
-
Original price
$5,436.75
Original price
$4,818.00
$4,818.00
-
$5,436.75
Current price
$4,818.00
📢 For orders over $100, FREE Shipping Australia-wide

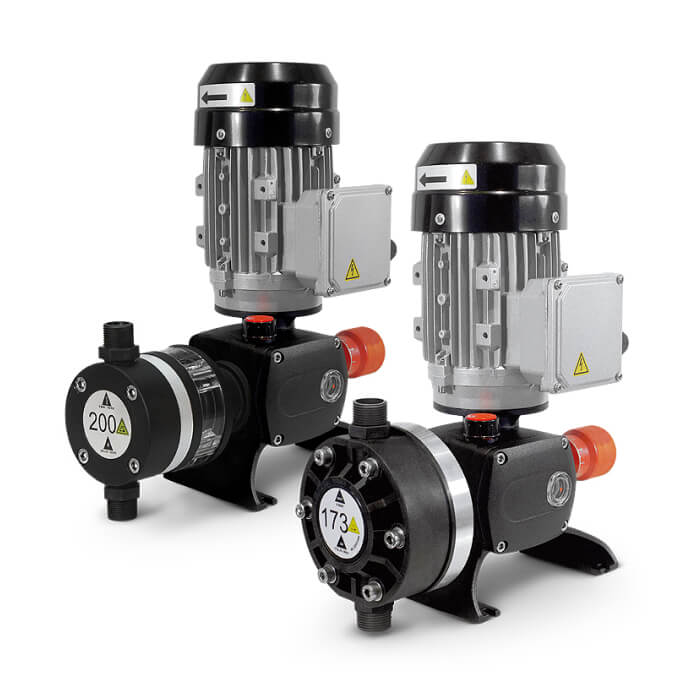

The DOSTEC® High Volume Injection Pump features a diaphragm head design with 30-100% flow adjustment. Capable of dosing from 173 to 209 L/hr with a maximum pressure of 800 kPa. Available in both single phase and 3 phase configurations. DOSTEC 40 series features 20 mm connections for suction and delivery. Injection rate of diaphragm heads will vary with line pressure and viscosity of the solution.
Suitable Applications
- High volume chemical dosing in water treatment
- Corrosive chemical handling
- Industrial process dosing
- Fertigation systems
Key Specifications
| Product Name | DOSTEC High Volume Injection Pump – Diaphragm Head |
| Product Number | DTEC40-200D |
| Product Type | High Volume Injection Pump – Diaphragm Head |
| Maximum Injection Rate Range | 173 – 209 L/hr |
| Maximum Injection Pressure | 800 kPa |
| Adjustment Range | 30 – 100% of capacity |
| Phase Options | Single phase or 3 phase |
| Series | DOSTEC 40 |
| Connections | 20 mm for suction and delivery |
Documentation & Downloads
| ITC DOSTEC-40 – User Manual (EN) | Download PDF |
| ITC DOSTEC Range – Brochure (EN/ES/FR) – DOSTEC40 | Download PDF |
