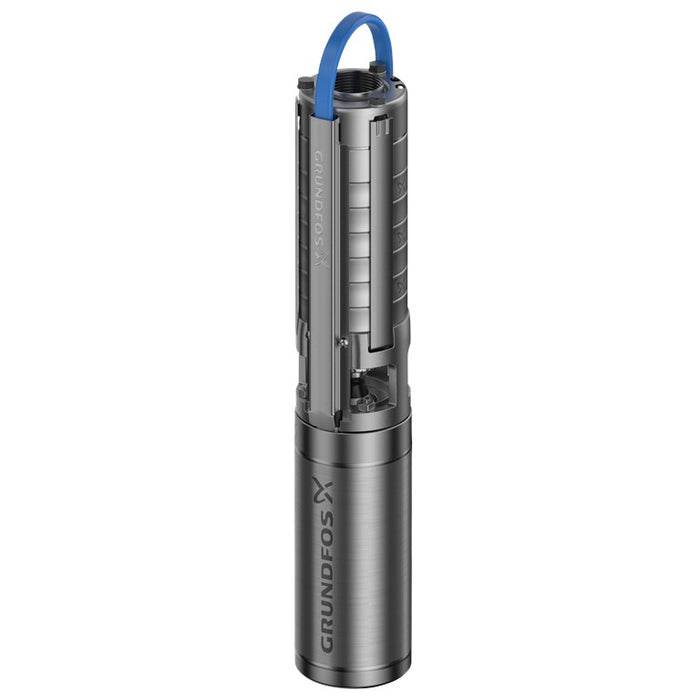

Grundfos SP 2A-13 Submersible Borehole Pump – 9007413 (1 x 240V, MS402/RSIR Motor)
by Grundfos
SKU 9007413
Original price
$1,161.60
-
Original price
$1,161.60
Original price
$1,161.60
$1,161.60
-
$1,161.60
Current price
$1,161.60
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos SP 2A-13 is a high-quality submersible borehole pump designed for clean water applications in domestic, agricultural, and community water supply systems. Constructed entirely from stainless steel (EN 1.4301 / AISI 304), the pump provides excellent corrosion resistance. It can be installed vertically or horizontally and is approved for drinking water (ACS, DM174). The pump comes equipped with a 0.55 kW MS402 three-phase motor or RSIR single-phase motor, featuring direct-on-line (DOL) starting, sand shield, lip seal, water-lubricated journal bearings, and a volume compensating diaphragm for efficient and stable operation at water temperatures up to 40 °C.
Applications & Features
- Domestic groundwater intake and pressure boosting
- Irrigation, rotor & spray, pivot and lateral systems
- Community and municipal water supply
- Livestock and wildlife watering
- Groundwater transfer and frost protection
- Water treatment, fertigation, chemigation & dosing
- Solar boosting and solar-powered water solutions
- Drinking water approved (ACS, DM174)
Key Specifications:
| Product No. | 9007413 |
| Pump Type | Submersible Borehole Pump |
| Rated Flow | 2 m³/h |
| Rated Head | 52 m |
| Stages | 13 |
| Motor Type | MS402 (3-phase) or RSIR (1-phase) |
| Rated Power (P2) | 0.55 kW |
| Voltage | 1 x 240 V, 50 Hz |
| Motor Diameter | 4 inch |
| Connection Size | Rp 1 1/4 inch |
| Maximum Operating Pressure | 15 bar |
| Maximum Outlet Pressure | 7.9 bar |
| Material | Stainless Steel (EN 1.4301 / AISI 304) |
| Ingress Protection | IP68 |
| Net Weight | 12.3 kg |
Documentation & Downloads:
| Document | Download |
|---|---|
| Flow Sleeves (Quick Guide) | 📄 Download PDF |
| SP – Installation & Operating Instructions | 📄 Download PDF |
| SP A & SP Pumps – Data Booklet | 📄 Download PDF |
| SP Accessories – Data Booklet | 📄 Download PDF |
