Grundfos CRN 3-7 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96516854 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516854
Original price
$2,209.63
-
Original price
$2,209.63
Original price
$2,209.63
$2,209.63
-
$2,209.63
Current price
$2,209.63
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRN 3-7 A-FGJ-A-V-HQQV is a vertical, non-self-priming, multistage inline centrifugal pump designed for installation in pipe systems and foundation mounting. Constructed with high-grade stainless steel components and equipped with a single HQQV shaft seal, it is suitable for water transfer, pressure boosting, HVAC, water treatment, irrigation, and solar water solutions.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | Grundfos CRN 3-7 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump |
| Product Number | 96516854 |
| EAN Number | 5700396751061 |
| Pump Type | Vertical multistage inline centrifugal pump |

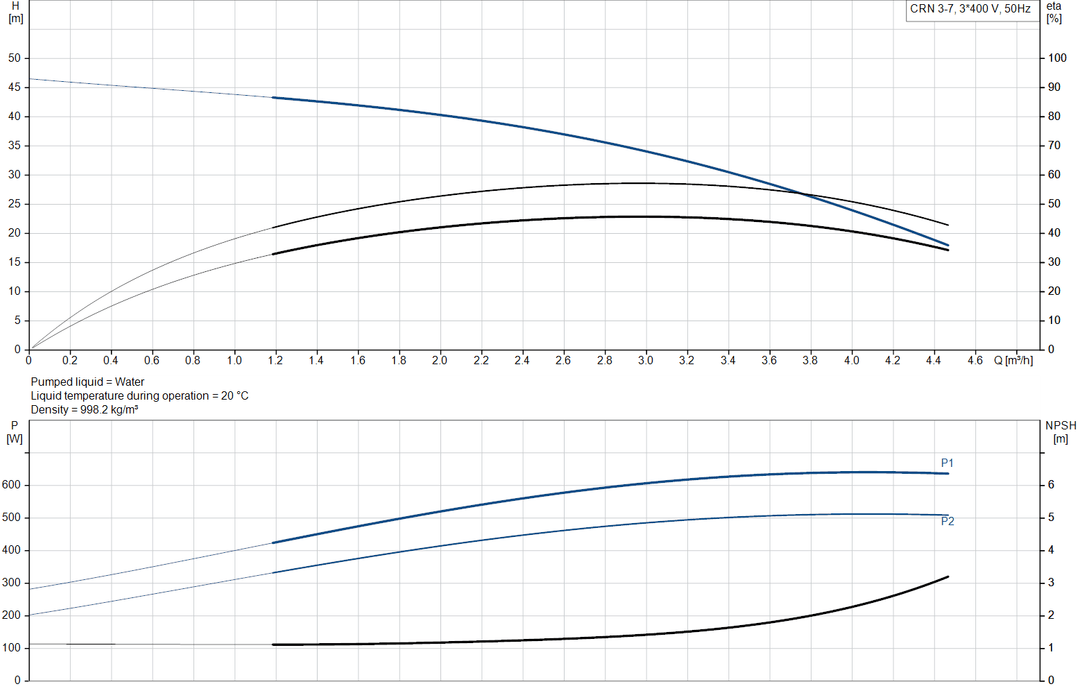

| Rated Flow | 3 m³/h |
| Rated Head | 32.8 m |
| Maximum Head | 45.9 m |
| Stages | 7 |
| Impellers | 7 |
| Pump Speed on Data Curve | 2856 rpm |
| Pump Orientation | Vertical |
| Shaft Seal Arrangement | Single |
| Primary Shaft Seal | HQQV |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 .. 90 °C |
| Selected Liquid Temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Base Material | Stainless steel, EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel, EN 1.4401 / AISI 316 |
| Bearing | SIC |
| Maximum Ambient Temperature | 60 °C |
| Maximum Operating Pressure | 25 bar |
| Connection Type | DIN / ANSI / JIS |
| Inlet Connection Size | DN 25/32 (1 1/4 inch) |
| Outlet Connection Size | DN 25/32 (1 1/4 inch) |
| Pressure Rating for Connection | PN 25 |
| Flange Rating Inlet | 300 lb |

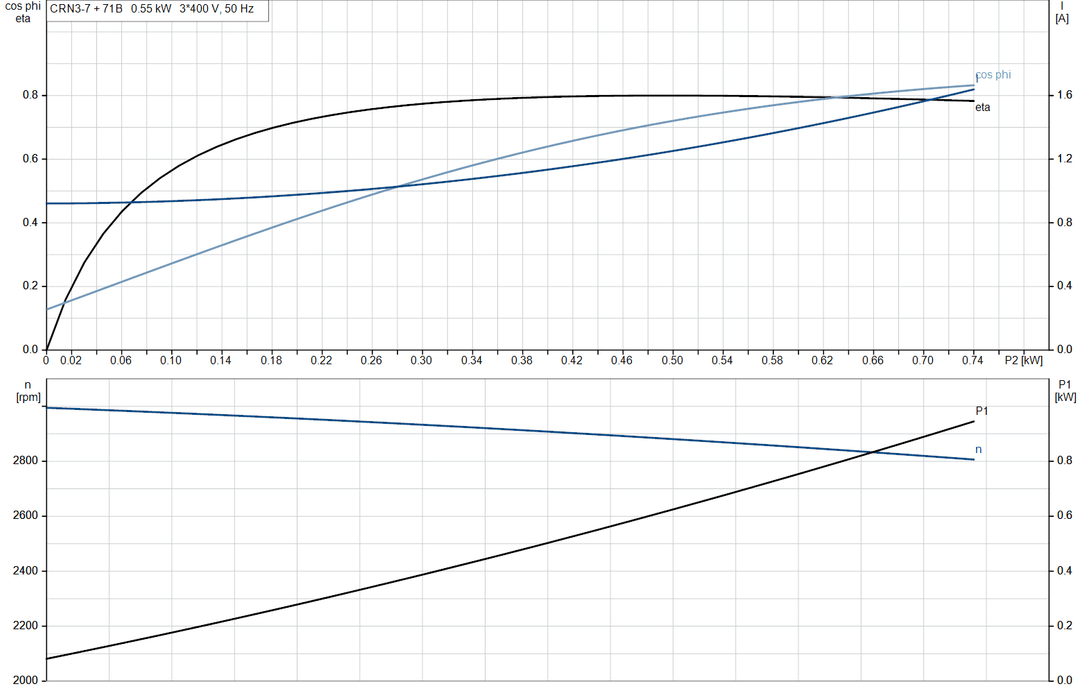

| Motor Standard | IEC |
| Motor Type | 71B |
| Rated Power (P2) | 0.55 kW |
| Mains Frequency | 50 Hz |
| Rated Voltage | 3 x 220-240D/380-415Y V |
| Rated Current | 2.50/1.44 A |
| Rated Speed | 2830-2850 rpm |
| IE Efficiency Class | IE3 |
| Motor Efficiency at Full Load | 77.8 % |
| Enclosure Class | IP55 Dust/Jetting |
| Insulation Class | F |
| Built-in Motor Protection | NONE |
| Frequency Converter | None |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Drinking Water Approvals | WRAS, ACS |
| Net Weight | 21.9 kg |
| Gross Weight | 24.7 kg |
| Shipping Volume | 0.063 m³ |
| Country of Origin | TW |
| Price | AUD 3214 |
Documentation & Downloads
| Product Datasheet PDF | Download PDF |
