Grundfos CRN 3-2 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96516849 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516849
Original price
$1,804.69
-
Original price
$1,804.69
Original price
$1,804.69
$1,804.69
-
$1,804.69
Current price
$1,804.69
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRN 3-2 A-FGJ-A-V-HQQV is a vertical, non-self-priming, multistage inline centrifugal pump designed for commercial, industrial, and water treatment applications. It features stainless steel wetted components, a single HQQV shaft seal, and combined DIN / ANSI / JIS flange connections. This variant is equipped with a 3-phase IEC motor and is suitable for water transfer, boosting, treatment, and irrigation duties where compact stainless steel construction and reliable pressure performance are required.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | Grundfos CRN 3-2 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96516849 |
| Product Number | 96516849 |
| EAN Number | 5700396750965 |
| Pump Type | Vertical multistage centrifugal pump |

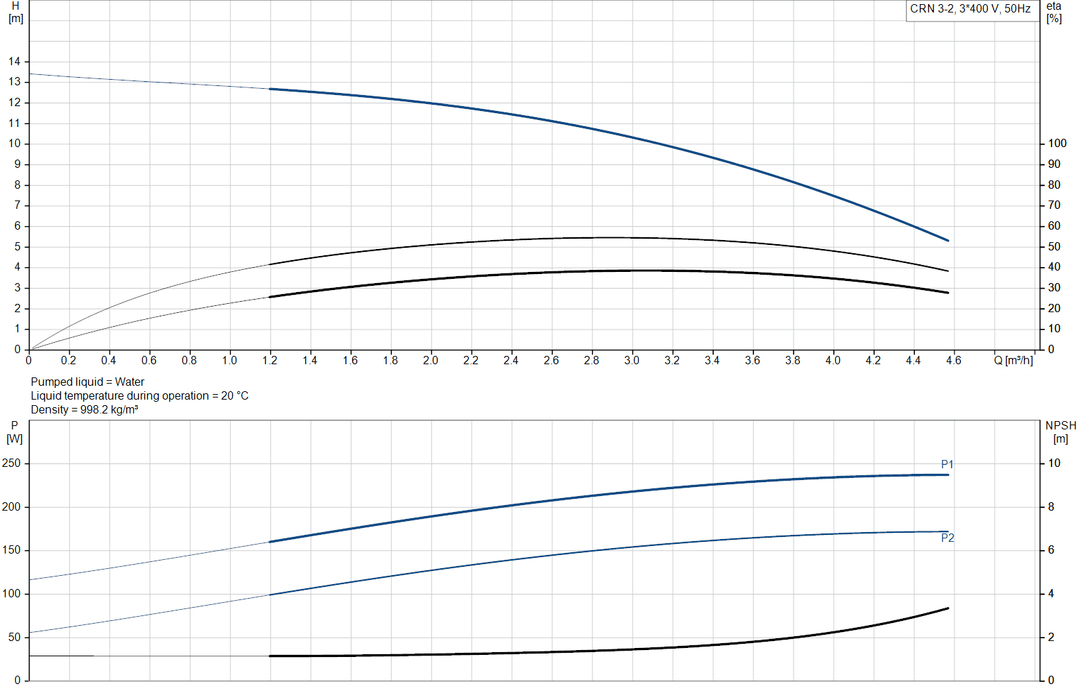

| Rated Flow | 3 m³/h |
| Rated Head | 9.6 m |
| Maximum Head | 13.5 m |
| Stages / Impellers | 3 / 2 |
| Pump Speed | 2873 rpm |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 .. 90 °C |
| Selected Liquid Temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Shaft Seal | HQQV |
| Shaft Seal Arrangement | Single |
| Materials | Base: EN 1.4408 / AISI 316, Impeller: EN 1.4401 / AISI 316, Bearing: SIC |
| Maximum Ambient Temperature | 60 °C |
| Maximum Operating Pressure | 25 bar |
| Connection Type | DIN / ANSI / JIS |
| Connection Size | DN 25/32 (1 1/4 inch) |
| Pressure Rating | PN 25 |
| Flange Rating Inlet | 300 lb |

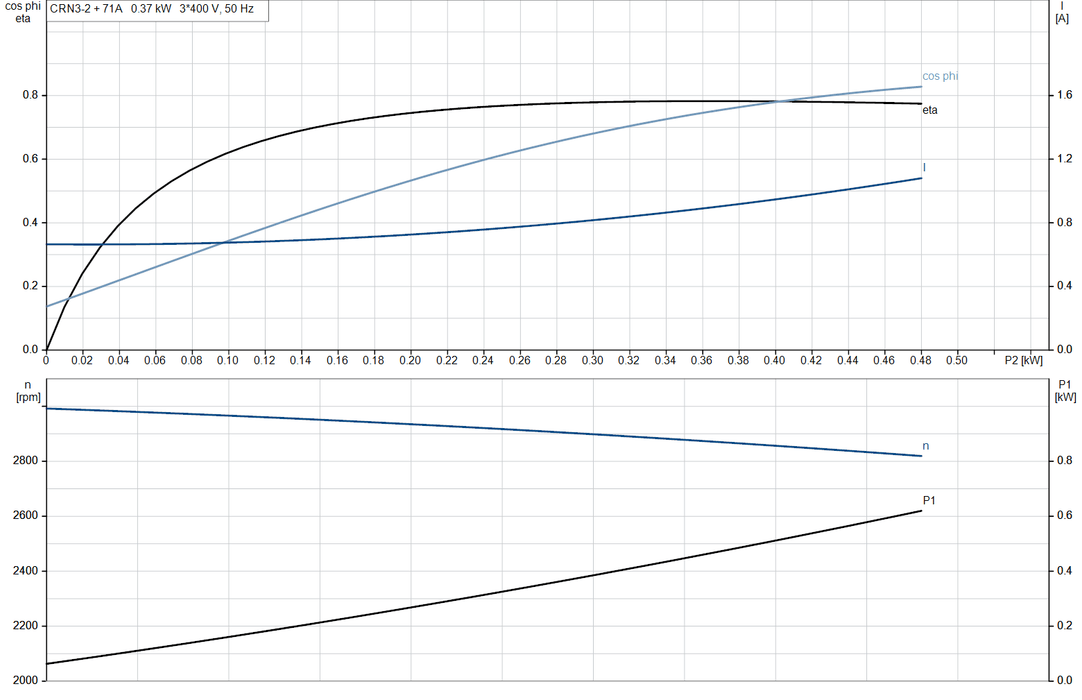

| Motor Standard | IEC |
| Motor Type | 71A |
| Rated Power (P2) | 0.37 kW |
| Rated Voltage | 3 x 220-240D/380-415Y V |
| Mains Frequency | 50 Hz |
| Rated Current | 1.74/1.00 A |
| Rated Speed | 2850-2880 rpm |
| IE Efficiency Class | IE3 |
| Motor Protection | NONE |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Net Weight | 20.6 kg |
| Gross Weight | 23.2 kg |
| Shipping Volume | 0.054 m³ |
| Country of Origin | TW |
