Grundfos CRN 3-15 A-CA-A-V-HQQV Vertical Multistage Centrifugal Pump – 96520772 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96520772
Original price
$2,760.31
-
Original price
$2,760.31
Original price
$2,760.31
$2,760.31
-
$2,760.31
Current price
$2,760.31
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRN 3-15 is a vertical, multistage inline centrifugal pump engineered for high-pressure water applications. Liquid-contacting components, including impellers and intermediate chambers, are made of high-grade stainless steel (EN 1.4401 / AISI 316), while the pump head cover and base are stainless steel (EN 1.4408 / AISI 316). It is equipped with a single HQQV shaft seal and FlexiClamp (CA) DN 32 connections (PN 25). The pump is driven by a 1.1 kW IEC 80C three-phase motor with IE3 efficiency and IP55 protection.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Machining and wash/clean processes
- Industrial liquid transfer, heating, and cooling
- Industrial water supply and wastewater treatment
- Desalination and reverse osmosis systems
- Surface water intake and drinking water treatment
- Water distribution and irrigation
- Solar water solutions and solar boosting
- Community water supply and groundwater transfer
- Livestock and wildlife watering
- Agricultural applications: pivot irrigation, fertigation, chemigation
- Frost protection and municipal water systems
Key Specifications
| Product Name | CRN 3-15 A-CA-A-V-HQQV |
| Product Number | 96520772 |
| EAN | 5700396830735 |
| Pump Type | Vertical Multistage Centrifugal |

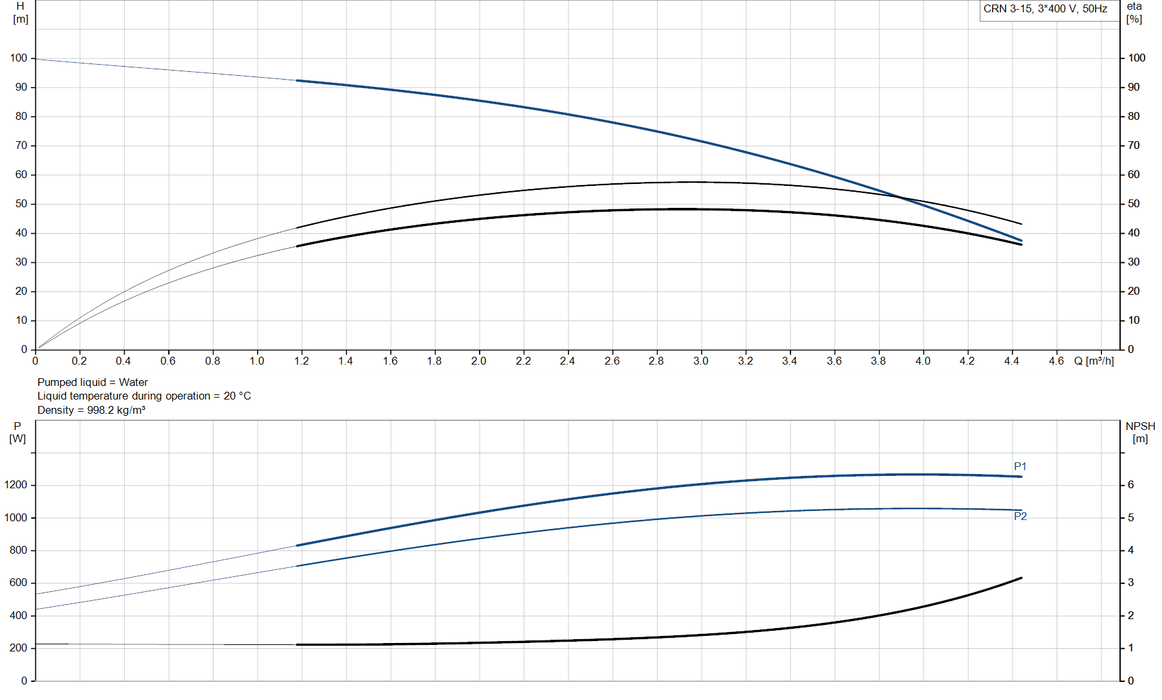

| Rated Flow | 3 m³/h |
| Rated Head | 69.7 m |
| Maximum Head | 98.2 m |
| Speed (Pump Data) | 2853 rpm |
| Stages / Impellers | 15 / 15 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQV (Single) |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 32 (1 1/4"), FlexiClamp (CA), PN 25 |
| Base / Head Material | Stainless Steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless Steel (EN 1.4401 / AISI 316) |
| Bearing | SIC |

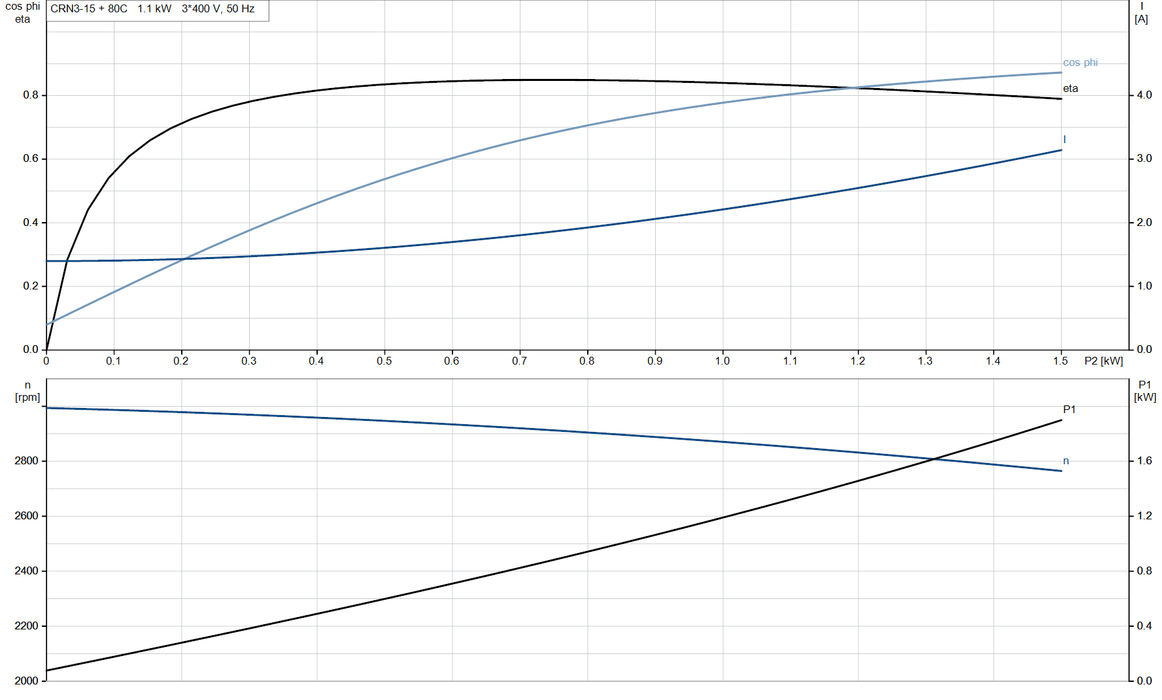

| Motor Power (P2) | 1.1 kW |
| Voltage | 3 x 220-240D / 380-415Y V |
| Frequency | 50 Hz |
| Rated Current | 4.35 / 2.50 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 82.7 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 26.5 / 30.6 kg |
| Shipping Volume | 0.092 m³ |
| Motor No | 85U05105 |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Grundfos CRN 3-15 Datasheet | Download |
