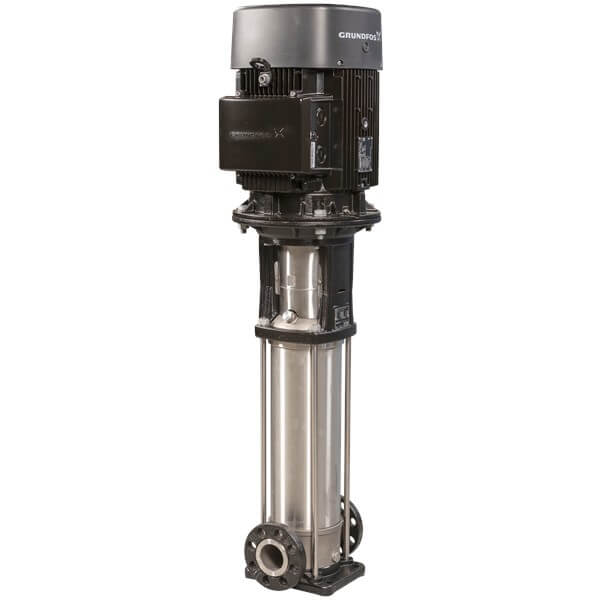

Grundfos CRN 3-13 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96516860 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516860
Original price
$2,735.56
-
Original price
$2,735.56
Original price
$2,735.56
$2,735.56
-
$2,735.56
Current price
$2,735.56
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRN 3-13 A-FGJ-A-V-HQQV is a vertical, non-self-priming, multistage in-line centrifugal pump designed for demanding commercial, industrial, water treatment, and irrigation applications. With wetted parts in high-grade stainless steel and a single HQQV shaft seal, it delivers reliable high-pressure performance for clean water transfer, boosting, and process duties.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | Grundfos CRN 3-13 A-FGJ-A-V-HQQV |
| Product Number | 96516860 |
| EAN Number | 5700396751184 |
| Pump Type | Vertical multistage in-line centrifugal pump |
| Rated Flow | 3 m³/h |
| Rated Head | 61.3 m |
| Maximum Head | 85.5 m |
| Stages | 13 |
| Impellers | 13 |
| Pump Speed | 2853 rpm |
| Pump Orientation | Vertical |
| Shaft Seal Arrangement | Single |
| Primary Shaft Seal | HQQV |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 to 90 °C |
| Selected Liquid Temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Base Material | Stainless steel, EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel, EN 1.4401 / AISI 316 |
| Bearing | SIC |
| Material Code | A |
| Rubber Components Code | V (FKM) |
| Maximum Ambient Temperature | 60 °C |
| Maximum Operating Pressure | 25 bar |
| Max Pressure at Stated Temperature | 25 bar / 90 °C; 25 bar / -20 °C |
| Connection Type | DIN / ANSI / JIS |
| Connection Code | FGJ |
| Inlet Connection Size | DN 25/32 (1 1/4 inch) |
| Outlet Connection Size | DN 25/32 (1 1/4 inch) |
| Pressure Rating for Connection | PN 25 |
| Flange Rating Inlet | 300 lb |
| Flange Size for Motor | FT100 |
| Motor Standard | IEC |
| Motor Type | 80C |
| Rated Power (P2) | 1.1 kW |
| Mains Frequency | 50 Hz |

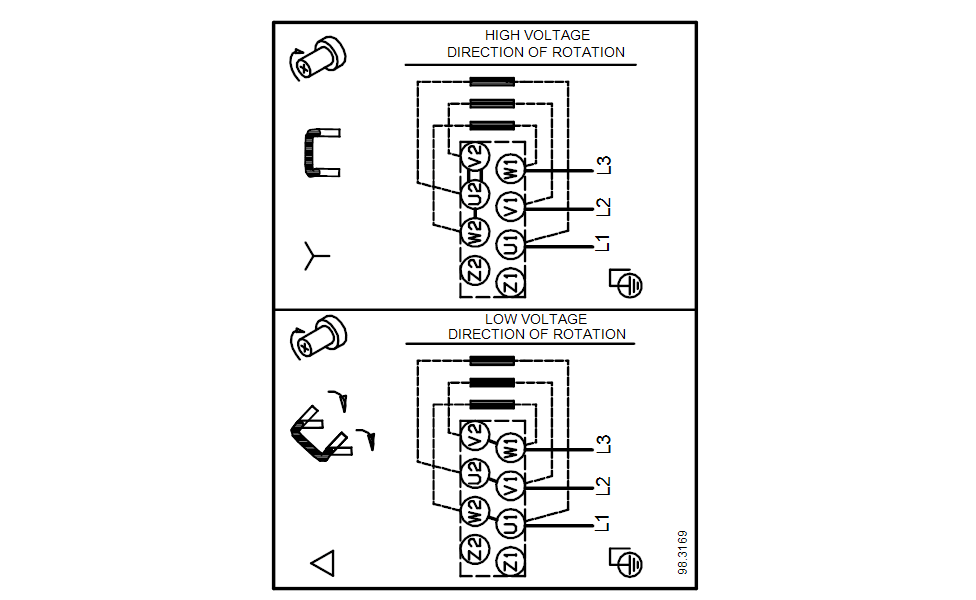

| Rated Voltage | 3 x 220-240D/380-415Y V |
| Rated Current | 4.35/2.50 A |
| Starting Current | 450-500 % |
| Cos Phi / Power Factor | 0.83-0.76 |
| Rated Speed | 2840-2870 rpm |
| IE Efficiency Class | IE3 |
| Motor Efficiency at Full Load | 82.7 % |
| Motor Efficiency at 3/4 Load | 84.6-84.0 % |
| Motor Efficiency at 1/2 Load | 85.4-82.8 % |
| Number of Poles | 2 |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Built-in Motor Protection | NONE |
| Motor No. | 85U05105 |
| Terminal Box Position | 6 |
| Frequency Converter | None |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Approvals for Drinking Water | WRAS, ACS |
| Curve Tolerance | ISO9906:2012 3B |
| Minimum Efficiency Index (MEI) | ≥ 0.70 |
| Net Weight | 29.8 kg |
| Gross Weight | 32.6 kg |
| Shipping Volume | 0.074 m³ |
| Country of Origin | TW |
| Custom Tariff No. | 8413709062 |
| Price | AUD 3979 |
