Grundfos CRN 1S-7 A-CA-A-V-HQQV Vertical Multistage Centrifugal Pump – 96531417 (3 x 220-240D/380-415Y V)
📢 For orders over $100, FREE Shipping Australia-wide

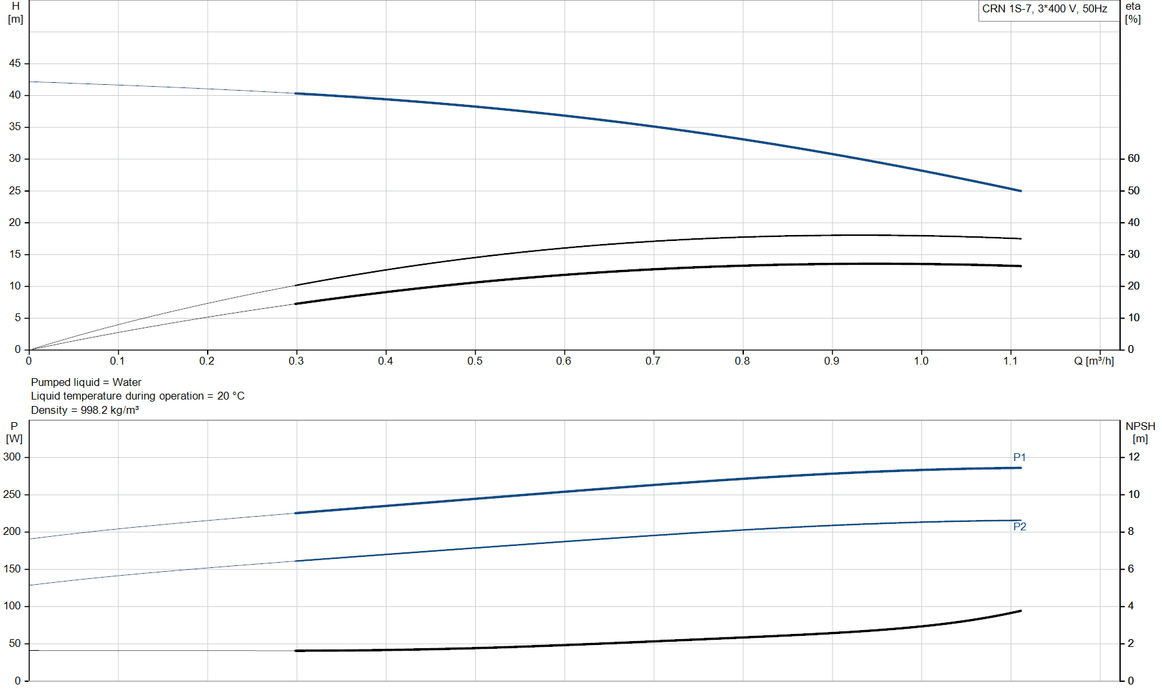

The Grundfos CRN 1S-7 A-CA-A-V-HQQV is a vertical multistage centrifugal pump designed for reliable pressure boosting and water transfer in commercial, industrial, and water treatment systems. All wetted pump components are manufactured from high-grade stainless steel EN 1.4401 (AISI 316), while the pump head and base are made from EN 1.4408 stainless steel to provide high corrosion resistance and durability. The pump delivers a rated flow of 0.9 m³/h with a rated head of 28.7 m and a maximum head of 41.7 m. It is equipped with an HQQV shaft seal and DN 32 (1 1/4") FlexiClamp pipe connections rated PN 25. The unit is driven by a high-efficiency 0.37 kW IE3 three-phase IEC motor with IP55 protection and insulation class F for continuous operation in demanding applications.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean systems
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 1S-7 A-CA-A-V-HQQV |
| Product Number | 96531417 |
| EAN | 5700397268704 |
| Pump Type | Vertical Multistage Centrifugal |
| Rated Flow | 0.9 m³/h |
| Rated Head | 28.7 m |
| Maximum Head | 41.7 m |
| Speed (Pump Data) | 2873 rpm |
| Stages / Impellers | 7 / 7 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 32 (1 1/4") FlexiClamp, PN 25 |
| Base / Head Material | Stainless Steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless Steel EN 1.4401 / AISI 316 |
| Bearing | SIC |
| Motor Power (P2) | 0.37 kW |
| Voltage | 3 x 220-240D / 380-415Y V |
| Frequency | 50 Hz |
| Rated Current | 1.74 / 1.00 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 73.8 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.54 |
| Net / Gross Weight | 18.2 kg / 21 kg |
| Shipping Volume | 0.063 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Grundfos CRN 1S-7 Product Datasheet | Download |
