Grundfos CRN 1S-27 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96515955 (3 x 220-240D/380-415Y V)
by Grundfos
SKU 96515955
Original price
$3,452.63
-
Original price
$3,452.63
Original price
$3,452.63
$3,452.63
-
$3,452.63
Current price
$3,452.63
📢 For orders over $100, FREE Shipping Australia-wide
Vertical, non-self-priming, multistage in-line centrifugal pump for pipe system or foundation installation. Wetted components, including impellers, intermediate chambers, and outer sleeve, are made of stainless steel EN 1.4401, with pump head cover and base in stainless steel EN 1.4408. Features a single HQQV shaft seal (EN 12756), DIN/ANSI/JIS flanged connections, and a 3-phase IE3 AC motor delivering 0.9 m³/h rated flow, 107.6 m rated head, and a maximum head of 158.8 m. Ideal for industrial, commercial, and water treatment applications.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 1S-27 A-FGJ-A-V-HQQV |
| Product Number | 96515955 |
| EAN | 5700396734408 |
| Pump Type | Vertical / Multistage Centrifugal |

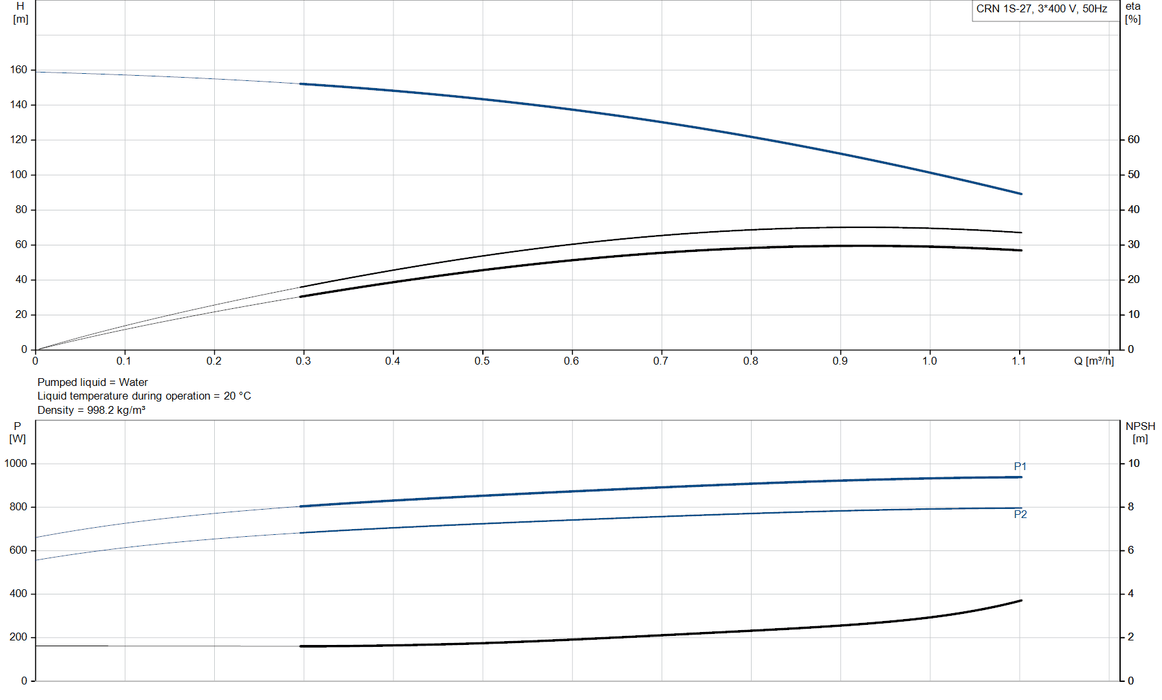

| Rated Flow | 0.9 m³/h |
| Rated Head | 107.6 m |
| Maximum Head | 158.8 m |
| Speed (Pump Data) | 2853 rpm |
| Stages / Impellers | 27 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | Single, HQQV |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32 (1 1/4 inch), DIN / ANSI / JIS, PN 25 / 300 lb |
| Base / Head Material | Stainless steel, EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel, EN 1.4401 / AISI 316 |
| Bearing | SIC |

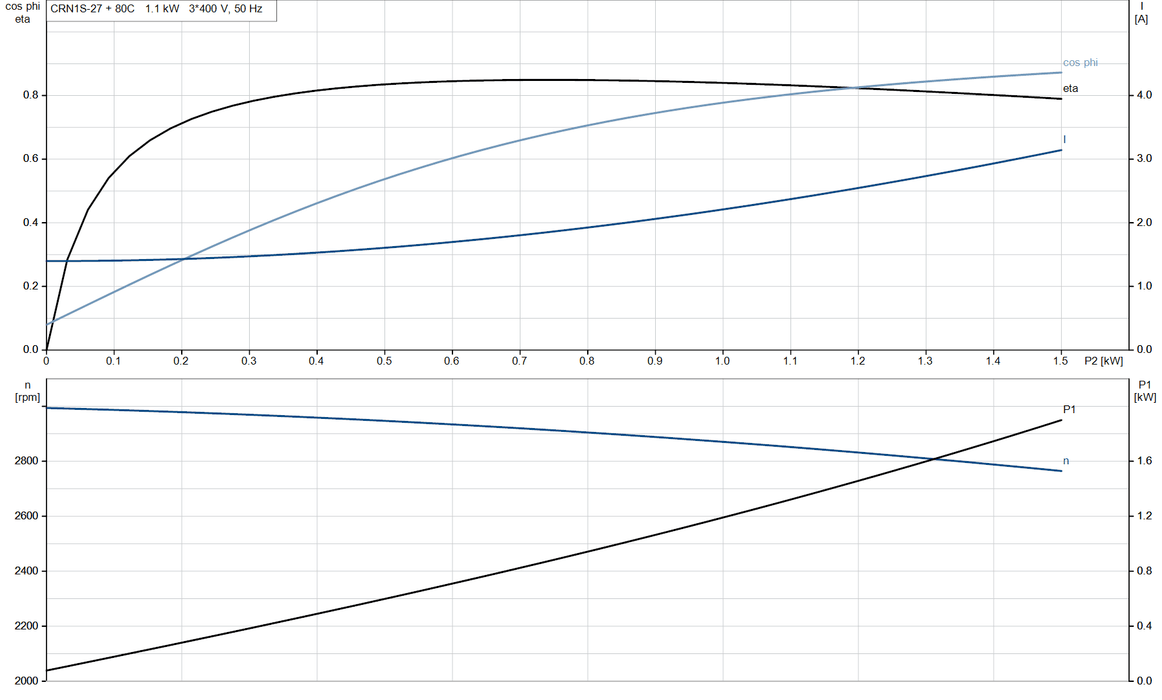

| Motor Power (P2) | 1.1 kW |
| Voltage | 3 x 220-240D / 380-415Y V |
| Frequency | 50 Hz |
| Rated Current | 4.35 / 2.50 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 82.7 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.54 |
| Net / Gross Weight | 35.2 / 38.1 kg |
| Shipping Volume | 0.13 m³ |
| Custom Tariff No. | 8413709062 |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Product Datasheet | Download |
