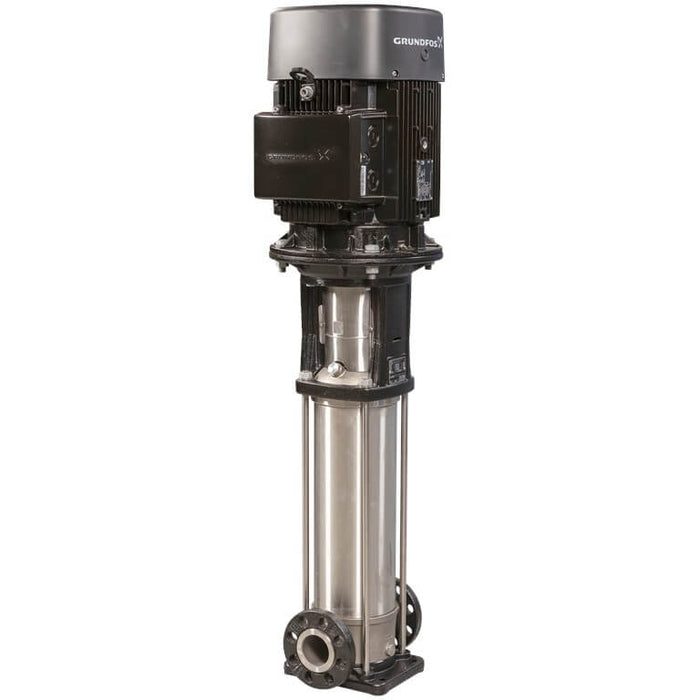

Grundfos CRI 1S-5 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 96527553 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96527553
Original price
$1,159.81
-
Original price
$1,159.81
Original price
$1,159.81
$1,159.81
-
$1,159.81
Current price
$1,159.81
📢 For orders over $100, FREE Shipping Australia-wide
Vertical, non-self-priming, multistage, in-line centrifugal pump made of stainless steel (EN 1.4301/1.4408). Rated flow 0.9 m³/h, head up to 30.3 m, fitted with HQQE shaft seal, DIN/ANSI/JIS flanges, and a 3-phase IEC motor (0.37 kW, 2850-2880 rpm, IP55).
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRI 1S-5 A-FGJ-A-E-HQQE |
| Product Number | 96527553 |
| EAN | 5700397071991 |
| Pump Type | Vertical Multistage Centrifugal |
| Rated Flow | 0.9 m³/h |
| Rated Head | 21.1 m |
| Maximum Head | 30.3 m |
| Speed (Pump Data) | 2873 rpm |
| Stages / Impellers | 5 / 5 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQE |
| Liquid Temperature Range | -20 .. 120 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32 Inlet/Outlet, DIN / ANSI / JIS, PN 25 / 300 lb |
| Base / Head Material | Stainless steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel EN 1.4301 / AISI 304 |
| Bearing | SIC |
| Motor Power (P2) | 0.37 kW |
| Voltage | 3 x 220-240D / 380-415Y V |
| Frequency | 50 Hz |
| Rated Current | 1.74 / 1.00 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 73.8 % |
| Enclosure Class | IP55 Dust/Jetting |
| Insulation Class | F |
| MEI | 0.54 |
| Net / Gross Weight | 21.6 / 24.2 kg |
| Shipping Volume | 0.054 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| CRI 1S-5 A-FGJ-A-E-HQQE Datasheet | Download |
