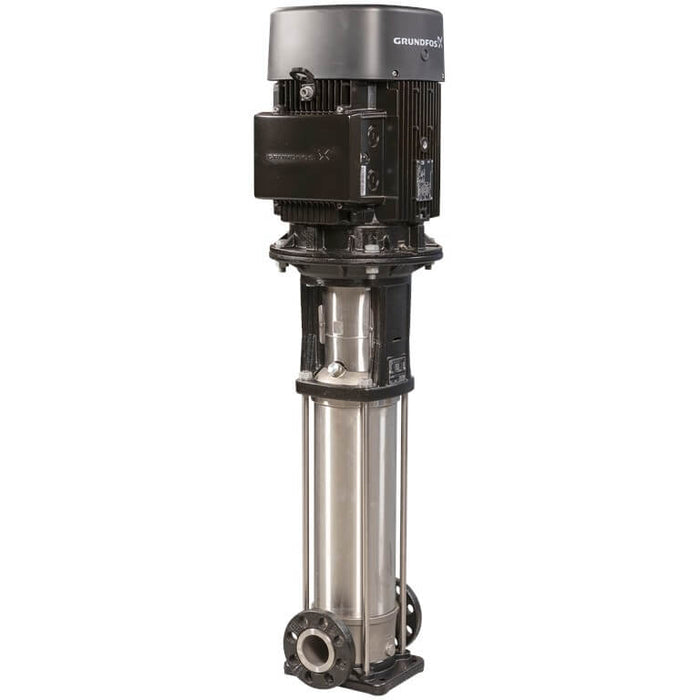

Grundfos CRI 1S-5 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 92899944 (1 x 220-230V)
by Grundfos
SKU 92899944
Original price
$1,213.44
-
Original price
$1,213.44
Original price
$1,213.44
$1,213.44
-
$1,213.44
Current price
$1,213.44
📢 For orders over $100, FREE Shipping Australia-wide
Vertical, inline multistage centrifugal pump designed for clean water and similar non-aggressive liquids. All wetted components are manufactured from stainless steel, ensuring high corrosion resistance and long service life. The pump uses a rigid split coupling and combined DIN/ANSI/JIS flanged connections for flexible installation. Driven by a single-phase IEC fan-cooled motor, this unit is suitable for high-pressure duties across commercial, industrial, municipal, and agricultural applications.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Industrial water supply and wastewater
- Process liquids transfer
- Water treatment, RO, and desalination
- Surface and drinking water supply
- Water distribution systems
- Irrigation and agricultural water supply
- Solar water solutions and boosting
- Community and groundwater supply
- Rotor, spray, and pivot irrigation
- Livestock watering systems
Key Specifications
| Product Number | 92899944 |
| Pump Type | Vertical multistage centrifugal (inline) |
| Rated Flow | 0.9 m³/h |
| Rated Head | 23.3 m |
| Maximum Head | 30 m |
| Stages / Impellers | 5 / 5 |
| Speed (Pump Data) | 2757 rpm |
| Shaft Seal | HQQE (single) |
| Maximum Operating Pressure | 25 bar |
| Liquid Temperature Range | −20 to +120 °C |
| Connection Type | DIN / ANSI / JIS flanged |
| Port Size | DN 25/32 (1¼″) |
| Pressure Rating | PN 25 / 300 lb |
| Materials — Wetted Parts | Stainless steel (EN 1.4301 / AISI 304) |
| Base Material | Stainless steel (EN 1.4408 / AISI 316) |
| Bearing | Silicon carbide (SiC) |
| Motor Power (P2) | 0.37 kW |
| Supply | 1 × 220–230 V, 50 Hz |
| Rated Current | 2.60–2.50 A |
| Motor Speed | 2700–2730 rpm |
| Efficiency Class | IE2 |
| Enclosure | IP55 |
| Insulation Class | F |
| Ambient Temperature | Max. 40 °C |
| MEI | ≥ 0.54 |
| Net / Gross Weight | 24.4 kg / 26.8 kg |
| Shipping Volume | 0.08 m³ |
| Country of Origin | Australia |
Documentation & Downloads
| Product Data Sheet (PDF) | Download |
