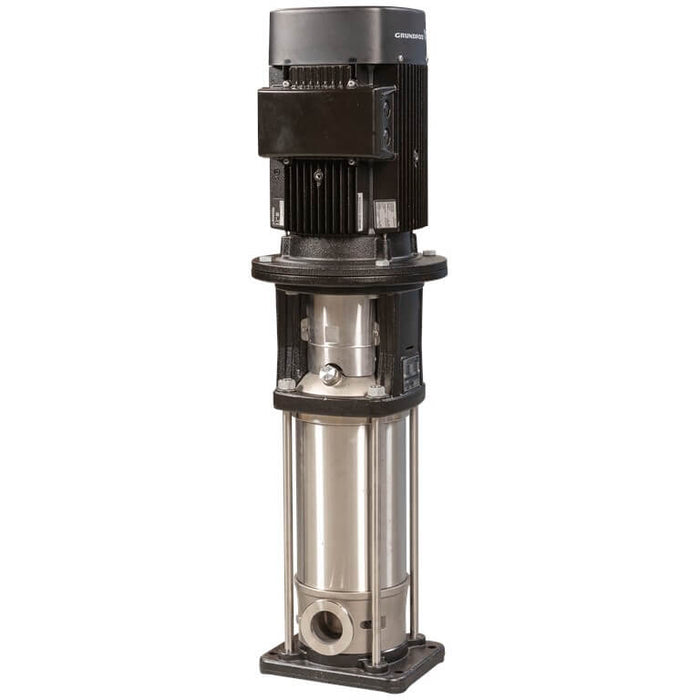

Grundfos CRI 1S-3 A-CA-A-E-HQQE Vertical Multistage Centrifugal Pump – 96515775 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96515775
Original price
$1,028.50
-
Original price
$1,028.50
Original price
$1,028.50
$1,028.50
-
$1,028.50
Current price
$1,028.50
📢 For orders over $100, FREE Shipping Australia-wide
Vertical, non-self-priming, multistage in-line centrifugal pump with suction and discharge ports at the same level. Wetted components are manufactured from corrosion-resistant stainless steel (EN 1.4301 / EN 1.4408). The pump delivers up to 18.2 m head at 0.9 m³/h and is equipped with a cartridge-type HQQE shaft seal (SiC/SiC/EPDM). Pipe connections use FlexiClamp (CA) couplings for DN32 PN25 systems. Driven by a high-efficiency IE3 three-phase IEC motor with IP55 enclosure, suitable for continuous duty in commercial, industrial, and water supply installations.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Industrial water supply and wastewater
- Industrial process water treatment
- Process liquids transfer
- Machining, wash and clean systems
- Desalination and reverse osmosis
- Drinking water treatment and distribution
- Irrigation and agriculture
- Solar water solutions and boosting
- Community water supply
- Groundwater transfer and pivot irrigation
- Livestock watering (solar solutions)
Key Specifications
| Product Name | CRI 1S-3 A-CA-A-E-HQQE |
| Product Number | 96515775 |
| EAN | 5700396731223 |
| Pump Type | Vertical multistage centrifugal, inline |
| Rated Flow | 0.9 m³/h |
| Rated Head | 12.8 m |
| Maximum Head | 18.2 m |
| Speed (Pump Data) | 2873 rpm |
| Stages / Impellers | 3 / 3 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQE (SiC/SiC/EPDM) |
| Liquid Temperature Range | −20 °C to +120 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN32 (1¼") FlexiClamp CA, PN25 |
| Base / Head Material | Stainless steel EN 1.4408 (AISI 316) |
| Impeller Material | Stainless steel EN 1.4301 (AISI 304) |
| Bearing | Silicon Carbide (SiC) |
| Motor Power (P2) | 0.37 kW |
| Voltage | 3 × 220–240Δ / 380–415Y V |
| Frequency | 50 Hz |
| Rated Current | 1.74 / 1.00 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 73.8 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.54 |
| Net / Gross Weight | 16.7 / 19.3 kg |
| Shipping Volume | 0.054 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Product Datasheet (PDF) | Download |
