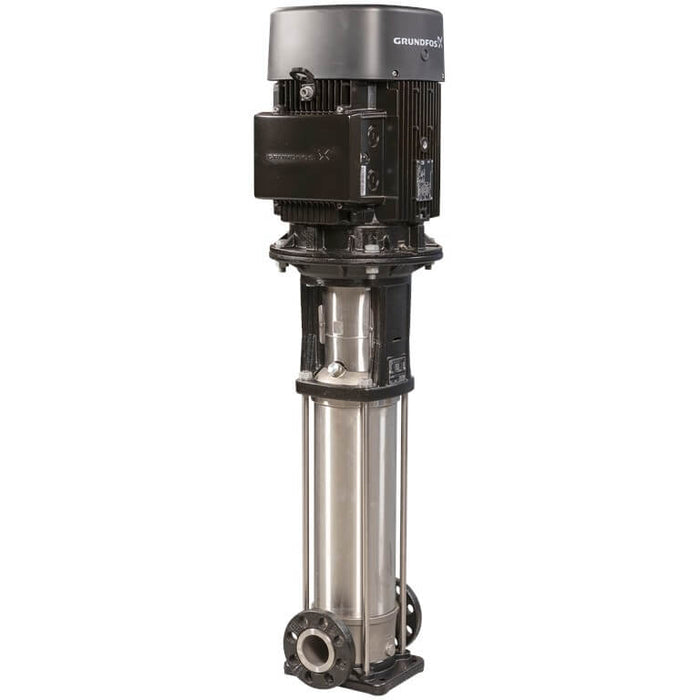

Grundfos CRI 1S-23 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 92899959 (1 x 220-230V)
by Grundfos
SKU 92899959
Original price
$2,014.38
-
Original price
$2,014.38
Original price
$2,014.38
$2,014.38
-
$2,014.38
Current price
$2,014.38
📢 For orders over $100, FREE Shipping Australia-wide
Vertical, multistage centrifugal pump with inlet and outlet ports on the same level (inline). Pump materials in contact with the liquid are stainless steel (EN 1.4301 / AISI 304). Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. Fitted with a 1-phase, fan-cooled asynchronous motor. Rated flow 0.9 m³/h, rated head 96.9 m, maximum head 132.3 m, single HQQE shaft seal, operating pressure up to 25 bar, and liquid temperature range from -20 to 120 °C.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment, fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRI 1S-23 A-FGJ-A-E-HQQE |
| Product Number | 92899959 |
| EAN | 5715121260930 |
| Pump Type | Vertical Multistage Centrifugal |
| Rated Flow | 0.9 m³/h |
| Rated Head | 96.9 m |
| Maximum Head | 132.3 m |
| Speed (Pump Data) | 2759 rpm |
| Stages / Impellers | 23 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | Single HQQE |
| Liquid Temperature Range | -20 .. 120 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32 (1 1/4 inch) DIN / ANSI / JIS, PN 25 / 300 lb flange |
| Base / Head Material | Stainless steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel EN 1.4301 / AISI 304 |
| Bearing | SIC |
| Motor Power (P2) | 0.75 kW |
| Voltage | 1 x 220-230 V |
| Frequency | 50 Hz |
| Rated Current | 4.60-4.75 A |
| Motor Efficiency Class | IE2 |
| Motor Efficiency (Full Load) | 77.4 % |
| Enclosure Class | IP55 Dust/Jetting |
| Insulation Class | F |
| MEI | 0.54 |
| Net / Gross Weight | 33.2 / 36.1 kg |
| Shipping Volume | 0.13 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Product PDF | Download |
