Grundfos CRI 1S-12 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 92899951 (1 x 220-230V)
by Grundfos
SKU 92899951
Original price
$1,441.69
-
Original price
$1,441.69
Original price
$1,441.69
$1,441.69
-
$1,441.69
Current price
$1,441.69
📢 For orders over $100, FREE Shipping Australia-wide

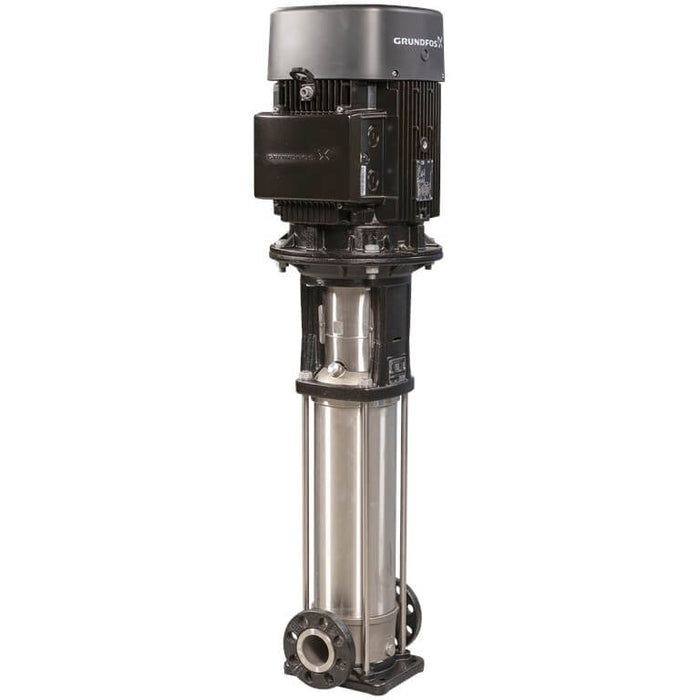

The Grundfos CRI 1S-12 A-FGJ-A-E-HQQE is a vertical inline multistage centrifugal pump designed for high-pressure, low-flow commercial and industrial duties. Wetted components are manufactured from stainless steel (EN 1.4301 / AISI 304) with a stainless steel base (EN 1.4408 / AISI 316), ensuring corrosion resistance and durability. The pump delivers 0.9 m³/h at 50 m head (maximum 68.6 m), features a single HQQE shaft seal, and uses combined DIN/ANSI/JIS PN25 flanged connections. It is driven by a 0.37 kW IEC IE2 single-phase motor (220–230 V, 50 Hz) with IP55 protection and Class F insulation.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating & cooling
- Industrial heating & cooling
- Industrial water supply & wastewater
- Industrial process water treatment
- Process liquid transfer
- Desalination & reverse osmosis
- Drinking water treatment & distribution
- Irrigation (rotor, spray, pivot)
- Groundwater transfer
- Solar water supply & agricultural solutions
- Livestock watering (solar solutions)
Key Specifications
| Product Name | CRI 1S-12 A-FGJ-A-E-HQQE |
| Product Number | 92899951 |
| EAN | 5715121260695 |
| Pump Type | Vertical Multistage Centrifugal (Inline) |

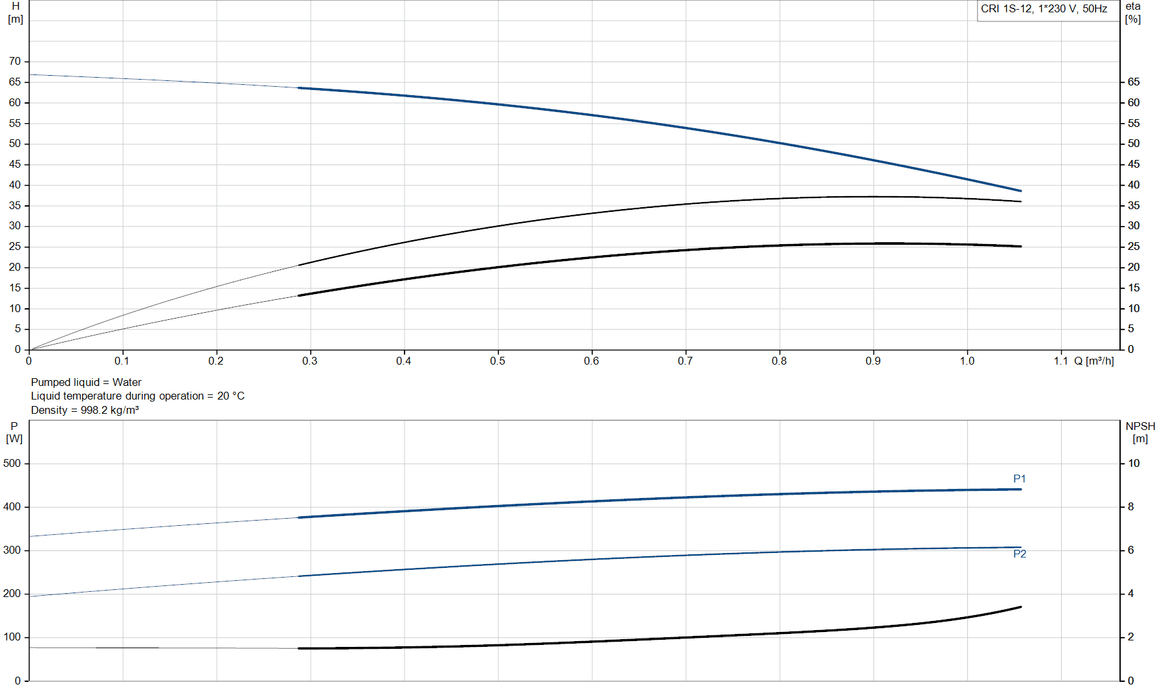

| Rated Flow | 0.9 m³/h |
| Rated Head | 50 m |
| Maximum Head | 68.6 m |
| Speed (Pump Data) | 2757 rpm |
| Stages / Impellers | 12 / 12 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQE (Single) |
| Liquid Temperature Range | -20 °C to +120 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32 (1¼"), DIN / ANSI / JIS, PN25, 300 lb |
| Base / Head Material | Stainless Steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless Steel (EN 1.4301 / AISI 304) |
| Bearing | Silicon Carbide (SiC) |

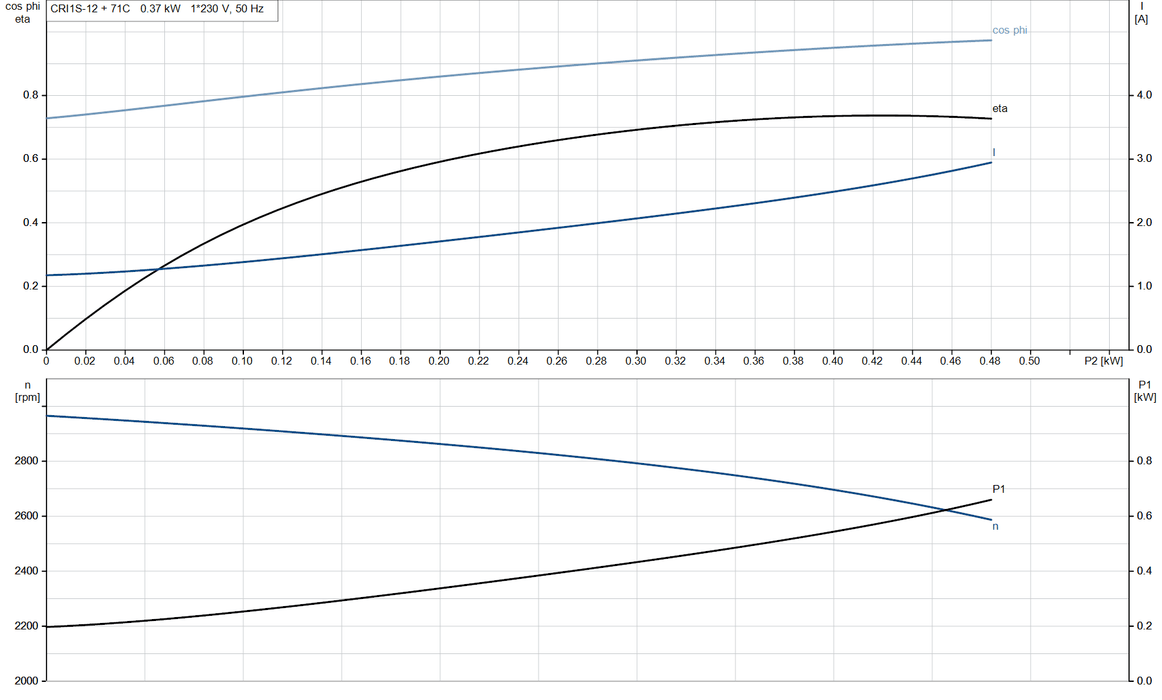

| Motor Power (P2) | 0.37 kW |
| Voltage | 1 × 220–230 V |
| Frequency | 50 Hz |
| Rated Current | 2.60–2.50 A |
| Motor Efficiency Class | IE2 |
| Motor Efficiency (Full Load) | 69.5 % |
| Enclosure Class | IP55 |
| Insulation Class | Class F |
| MEI | ≥ 0.54 |
| Net / Gross Weight | 27.2 kg / 29.8 kg |
| Shipping Volume | 0.094 m³ |
| Country of Origin | AU |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Technical Data Booklet (PDF) | Download |
