Grundfos CRI 1-8 A-CA-A-E-HQQE Vertical Multistage Centrifugal Pump – 92901087 (1 x 220-230V)
by Grundfos
SKU 92901087
Original price
$1,225.81
-
Original price
$1,225.81
Original price
$1,225.81
$1,225.81
-
$1,225.81
Current price
$1,225.81
📢 For orders over $100, FREE Shipping Australia-wide

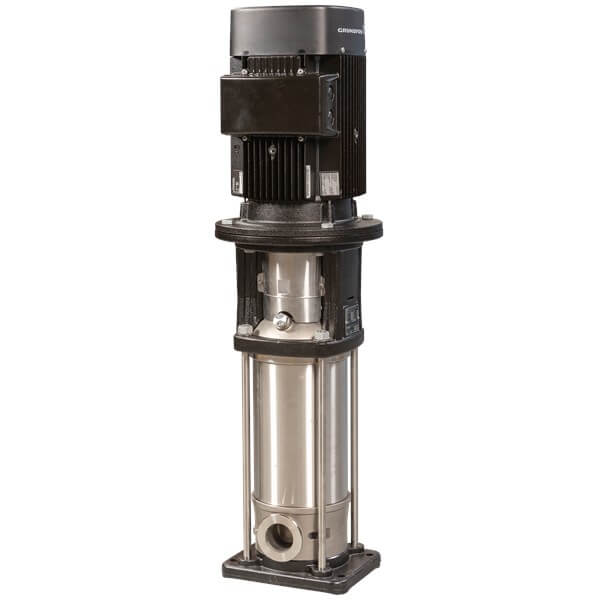

Grundfos CRI 1-8 A-CA-A-E-HQQE is a vertical multistage inline centrifugal pump with suction and discharge ports on the same level, ideal for clean water applications in commercial, industrial, irrigation, and solar water systems. All wetted components are stainless steel (EN 1.4301 / AISI 304 and EN 1.4408 / AISI 316) for corrosion resistance and long-term durability. It delivers a rated flow of 1.8 m³/h at a rated head of 36.9 m (maximum head 49.2 m) with 8 stages at 2750 rpm. The pump features a cartridge-type single HQQE shaft seal, DN 32 (1 1/4") PN 25 FlexiClamp (CA) connections, and a 0.55 kW single-phase IEC motor (220–230 V, 50 Hz, IE2, IP55).
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and district cooling
- Industrial water supply and wastewater
- Industrial process water treatment
- Desalination and reverse osmosis systems
- Drinking water treatment (WRAS, ACS approved)
- Water distribution and community water supply
- Irrigation (rotor, spray, pivot)
- Groundwater transfer and solar boosting
- Livestock watering and agricultural solar solutions
Key Specifications
| Product Name | CRI 1-8 A-CA-A-E-HQQE |
| Product Number | 92901087 |
| EAN | 5715121279062 |
| Pump Type | Vertical Multistage Centrifugal |
| Rated Flow | 1.8 m³/h |
| Rated Head | 36.9 m |
| Maximum Head | 49.2 m |
| Speed (Pump Data) | 2750 rpm |
| Stages / Impellers | 8 Stages / 8 Impellers |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | Single, HQQE (Cartridge) |
| Liquid Temperature Range | -20 °C to +120 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 32 (1 1/4") Inlet/Outlet, FlexiClamp (CA), PN 25 |
| Base / Head Material | Stainless Steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless Steel (EN 1.4301 / AISI 304) |
| Bearing | Silicon Carbide (SIC) |
| Motor Power (P2) | 0.55 kW |
| Voltage | 1 × 220–230 V |
| Frequency | 50 Hz |
| Rated Current | 3.70–3.75 A |
| Motor Efficiency Class | IE2 |
| Motor Efficiency (Full Load) | 74.1 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 22.5 kg / 25.2 kg |
| Shipping Volume | 0.063 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Data Booklet / Technical PDF | Download |
