Grundfos CRI 1-30 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 96527713 (3 x 220-240D/380-415Y V)
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRI 1-30 A-FGJ-A-E-HQQE is a vertical, non-self-priming multistage centrifugal pump engineered for high-pressure water supply, industrial processing, and water treatment systems. Hydraulic components including impellers, intermediate chambers, and the outer sleeve are manufactured from stainless steel (EN 1.4301), while the pump head and base are constructed from stainless steel (EN 1.4408 / AISI 316) for enhanced corrosion resistance. The pump delivers a rated flow of 1.8 m³/h with a rated head of 141.2 m and a maximum head of 186 m. It incorporates an HQQE single mechanical shaft seal compliant with EN 12756 and connects to pipework via DIN / ANSI / JIS flanges. The unit is driven by a high-efficiency IE3 three-phase IEC motor with IP55 protection and F-class insulation.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Groundwater transfer
- Pivot irrigation
- Solar boosting and water supply systems
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment, fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRI 1-30 A-FGJ-A-E-HQQE |
| Product Number | 96527713 |
| EAN | 5700397083796 |
| Pump Type | Vertical Multistage Centrifugal |

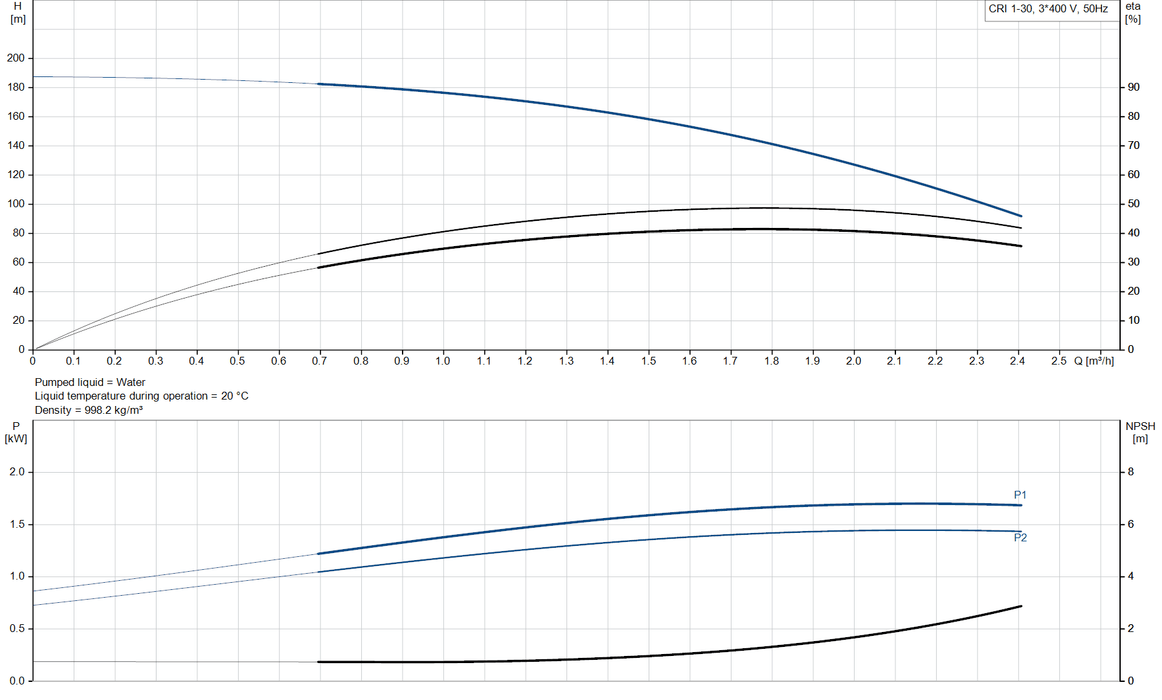

| Rated Flow | 1.8 m³/h |
| Rated Head | 141.2 m |
| Maximum Head | 186 m |
| Speed (Pump Data) | 2896 rpm |
| Stages / Impellers | 30 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQE (Single Mechanical Seal) |
| Liquid Temperature Range | -20 .. 120 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32 (1 1/4 inch), DIN / ANSI / JIS Flanges, PN25 / 300 lb |
| Base / Head Material | Stainless Steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless Steel (EN 1.4301 / AISI 304) |
| Bearing | SIC |

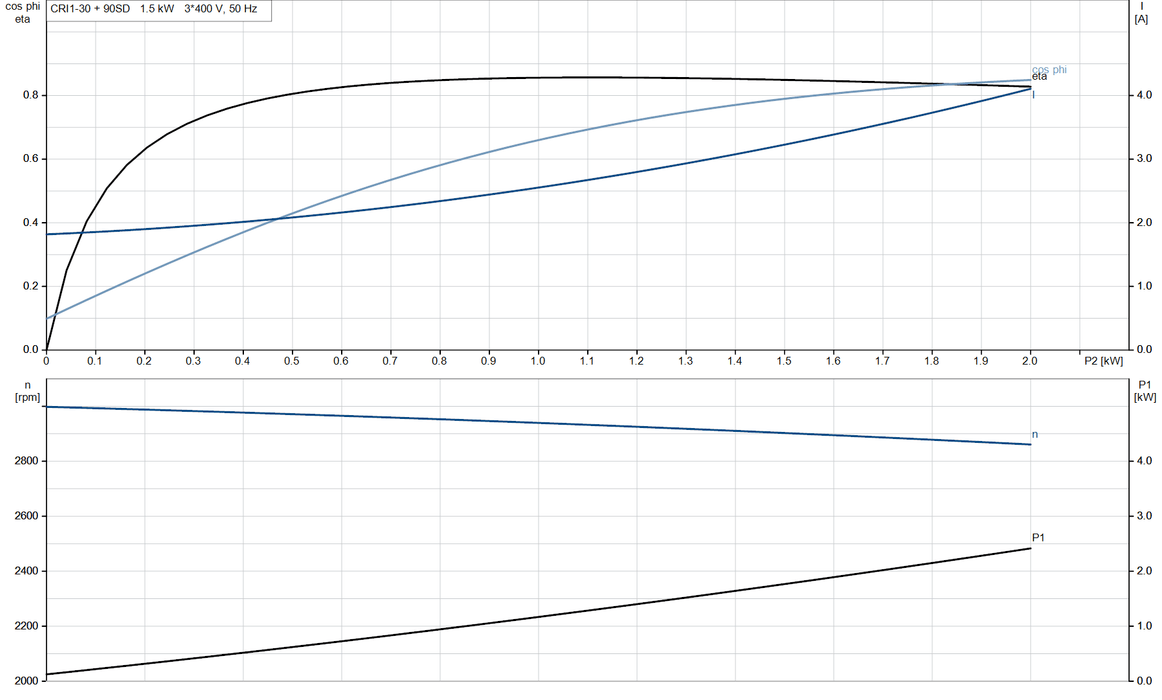

| Motor Power (P2) | 1.5 kW |
| Voltage | 3 x 220-240D / 380-415Y V |
| Frequency | 50 Hz |
| Rated Current | 5.70 / 3.30 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 84.2 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 42.8 kg / 48.2 kg |
| Shipping Volume | 0.133 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Grundfos CRI 1-30 A-FGJ-A-E-HQQE Product Data Sheet | Download |
