Grundfos CRI 1-2 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 96527716 (3 x 220-240D/380-415Y V)
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRI 1-2 A-FGJ-A-E-HQQE is a vertical, non-self-priming multistage centrifugal in-line pump designed for installation in pipe systems or mounting on a foundation. The pump features stainless steel wetted components including impellers, intermediate chambers, and outer sleeve in EN 1.4301 (AISI 304), while the pump head and base are manufactured from EN 1.4408 (AISI 316) stainless steel for enhanced corrosion resistance. It is equipped with a HQQE single mechanical shaft seal in accordance with EN 12756 and uses DIN / ANSI / JIS flange connections. The pump is driven by a high-efficiency 0.37 kW IE3 three-phase motor, delivering reliable performance for water supply, pressure boosting, and industrial liquid transfer applications.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment, fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRI 1-2 A-FGJ-A-E-HQQE |
| Product Number | 96527716 |
| EAN | 5700397083888 |
| Pump Type | Vertical Multistage Centrifugal |

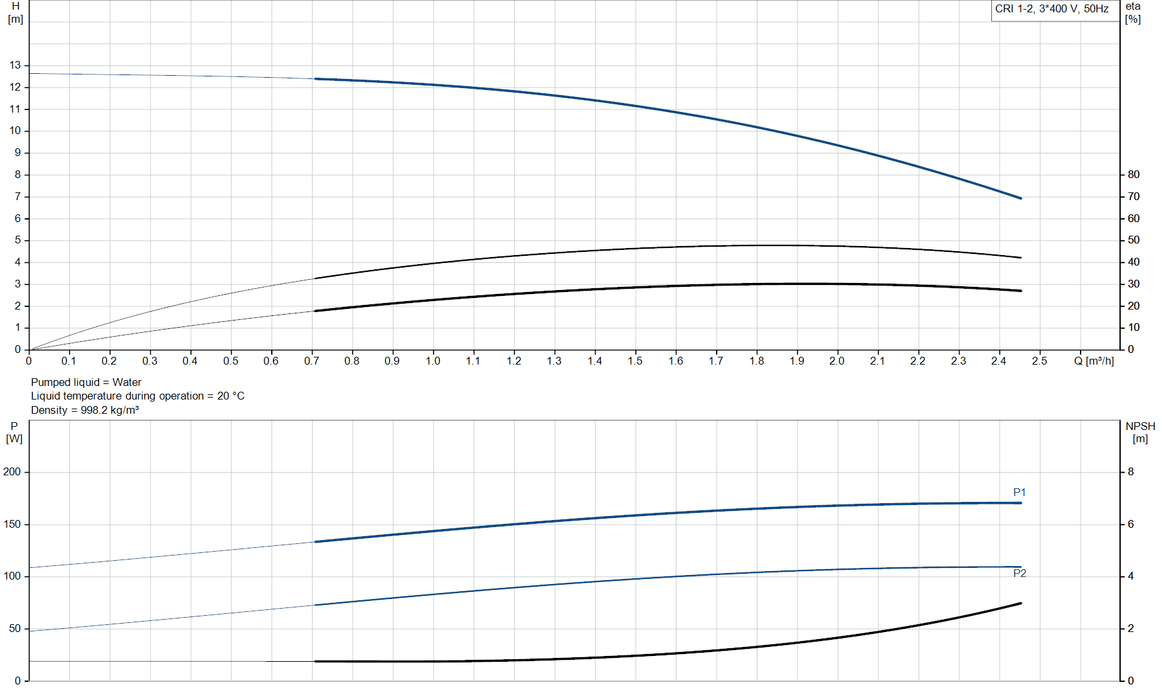

| Rated Flow | 1.8 m³/h |
| Rated Head | 9.8 m |
| Maximum Head | 12.1 m |
| Speed (Pump Data) | 2873 rpm |
| Stages / Impellers | 3 / 2 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQE (Single Mechanical Seal) |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32 (1 1/4") DIN / ANSI / JIS, PN25, 300 lb |
| Base / Head Material | Stainless Steel EN 1.4408 (AISI 316) |
| Impeller Material | Stainless Steel EN 1.4301 (AISI 304) |
| Bearing | SIC |

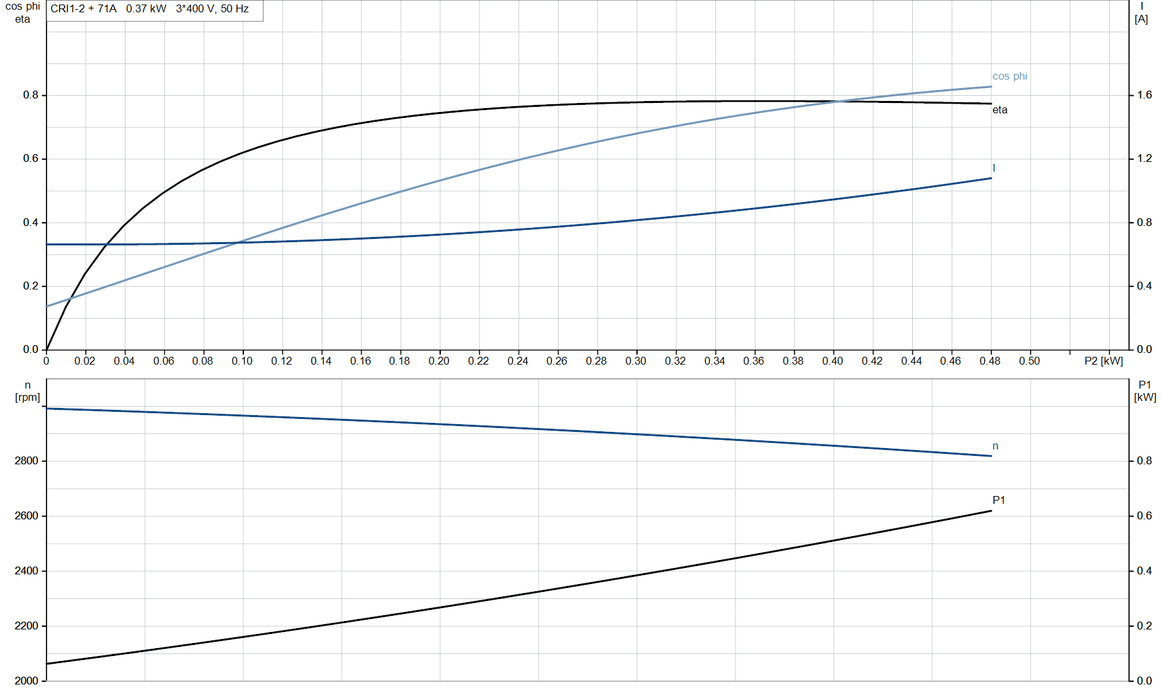

| Motor Power (P2) | 0.37 kW |
| Voltage | 3 x 220-240D / 380-415Y V |
| Frequency | 50 Hz |
| Rated Current | 1.74 / 1.00 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 73.8 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 20.6 / 23.2 kg |
| Shipping Volume | 0.054 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Grundfos CRI 1-2 Product Data Sheet | Download |
