Grundfos CRI 1-2 A-CA-A-E-HQQE Vertical Multistage Centrifugal Pump – 92901079 (1 x 220-230V)
by Grundfos
SKU 92901079
Original price
$1,029.88
-
Original price
$1,029.88
Original price
$1,029.88
$1,029.88
-
$1,029.88
Current price
$1,029.88
📢 For orders over $100, FREE Shipping Australia-wide

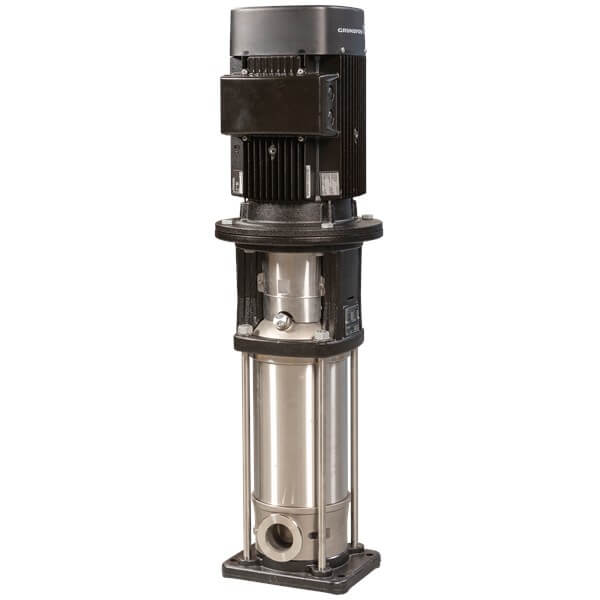

Grundfos CRI 1-2 A-CA-A-E-HQQE is a vertical multistage centrifugal pump with inline (same-level) suction and discharge ports, designed for clean water applications in commercial, industrial, and solar systems. Wetted parts are manufactured in stainless steel (EN 1.4301 / AISI 304 and EN 1.4408 / AISI 316) for corrosion resistance and long service life. The pump delivers a rated flow of 1.8 m³/h with a rated head of 9.8 m (maximum head 12.1 m) at 2757 rpm. It features a cartridge-type HQQE single shaft seal, PN 25 FlexiClamp (CA) connections DN 32 (1 1/4"), and is driven by a 0.37 kW single-phase IEC motor (220–230 V, 50 Hz, IE2, IP55).
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and district cooling
- Industrial water supply and wastewater
- Industrial process water treatment
- Desalination and reverse osmosis systems
- Drinking water treatment (WRAS, ACS approved)
- Water distribution and community water supply
- Irrigation (rotor, spray, pivot)
- Groundwater transfer and solar boosting
- Livestock watering and agricultural solar solutions
Key Specifications
| Product Name | CRI 1-2 A-CA-A-E-HQQE |
| Product Number | 92901079 |
| EAN | 5715121278928 |
| Pump Type | Vertical Multistage Centrifugal |
| Rated Flow | 1.8 m³/h |
| Rated Head | 9.8 m |
| Maximum Head | 12.1 m |
| Speed (Pump Data) | 2757 rpm |
| Stages / Impellers | 3 Stages / 2 Impellers |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | Single, HQQE (Cartridge) |
| Liquid Temperature Range | -20 °C to +120 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 32 (1 1/4") Inlet/Outlet, FlexiClamp (CA), PN 25 |
| Base / Head Material | Stainless Steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless Steel (EN 1.4301 / AISI 304) |
| Bearing | Silicon Carbide (SIC) |
| Motor Power (P2) | 0.37 kW |
| Voltage | 1 × 220–230 V |
| Frequency | 50 Hz |
| Rated Current | 2.60–2.50 A |
| Motor Efficiency Class | IE2 |
| Motor Efficiency (Full Load) | 69.5 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 19.3 kg / 22 kg |
| Shipping Volume | 0.054 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Data Booklet / Technical PDF | Download |
