Grundfos CR 95-3 A-F-A-E-HQQE Vertical Multistage Centrifugal Pump – 99141740 (3 x 380-415D/660-690YV)
by Grundfos
SKU 99141740
Original price
$11,887.56
-
Original price
$11,887.56
Original price
$11,887.56
$11,887.56
-
$11,887.56
Current price
$11,887.56
📢 For orders over $100, FREE Shipping Australia-wide
The CR 95-3 A-F-A-E-HQQE is a vertical multistage inline centrifugal pump engineered for high-capacity water transfer, pressure boosting, and industrial applications. Featuring suction and discharge ports on the same level, it enables compact in-line installation within piping systems. The pump head and base are manufactured from ductile cast iron, while all wetted components are stainless steel (EN 1.4301 / AISI 304) for corrosion resistance and long service life. It incorporates a reliable HQQE cartridge shaft seal, rigid split coupling for efficient power transmission, DIN flange connections, and a high-efficiency IE3 three-phase motor designed for continuous duty operation.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and cooling systems
- Industrial water supply and wastewater handling
- Industrial process water treatment
- Desalination and reverse osmosis systems
- Drinking water treatment and distribution
- Surface water intake
- Process liquids transfer
- Machining, wash and cleaning systems
- Irrigation and agriculture systems
- Community water supply
- Groundwater transfer
- Rotor, spray, and pivot irrigation
- Solar water supply and boosting solutions
- Livestock watering and agricultural solar applications
Key Specifications
| Product Name | CR 95-3 A-F-A-E-HQQE |
| Product Number | 99141740 |
| EAN | 5712607527235 |
| Pump Type | Vertical multistage centrifugal (inline) |

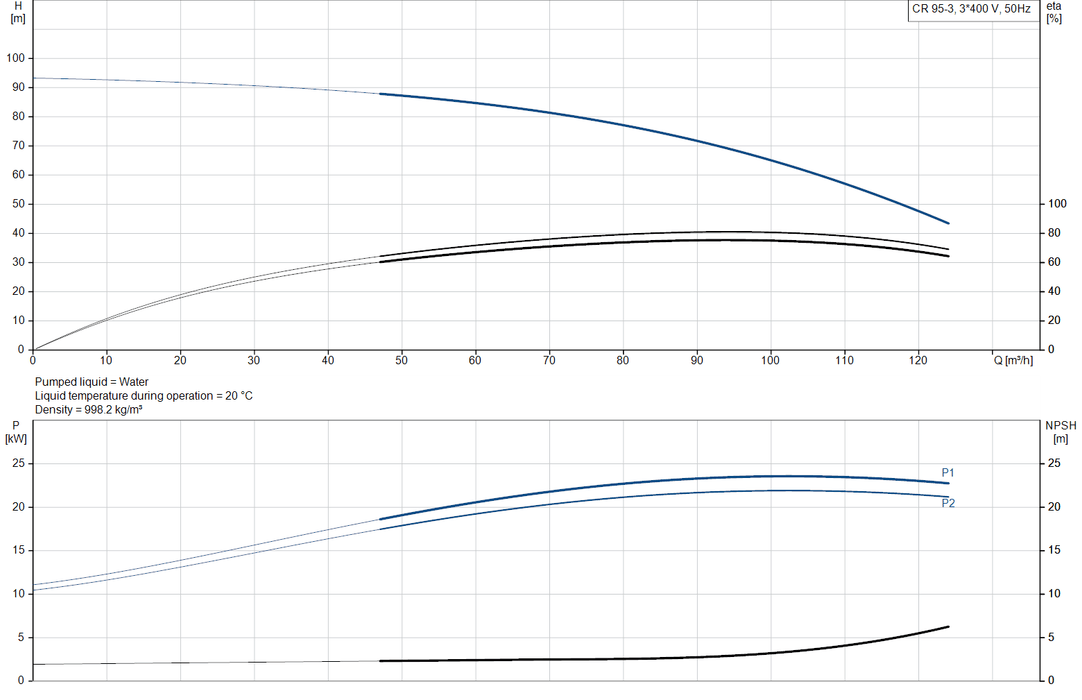

| Rated Flow | 95 m³/h |
| Rated Head | 69.3 m |
| Maximum Head | 93.4 m |
| Speed (Pump Data) | 2960 rpm |
| Stages / Impellers | 3 / 3 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | Single cartridge seal (HQQE) |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 16 bar |

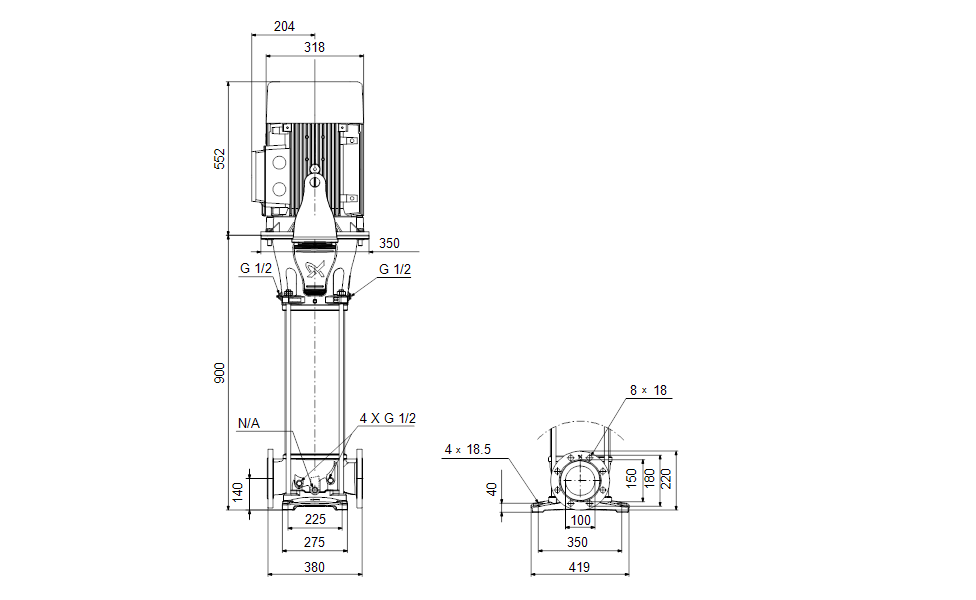

| Connections | DN 100 / DN 100, DIN flanges, PN 16 |
| Base / Head Material | Ductile cast iron EN-GJS-500-7 |
| Impeller Material | Stainless steel EN 1.4301 (AISI 304) |
| Bearing | WC/WC with Graflon support bearing |

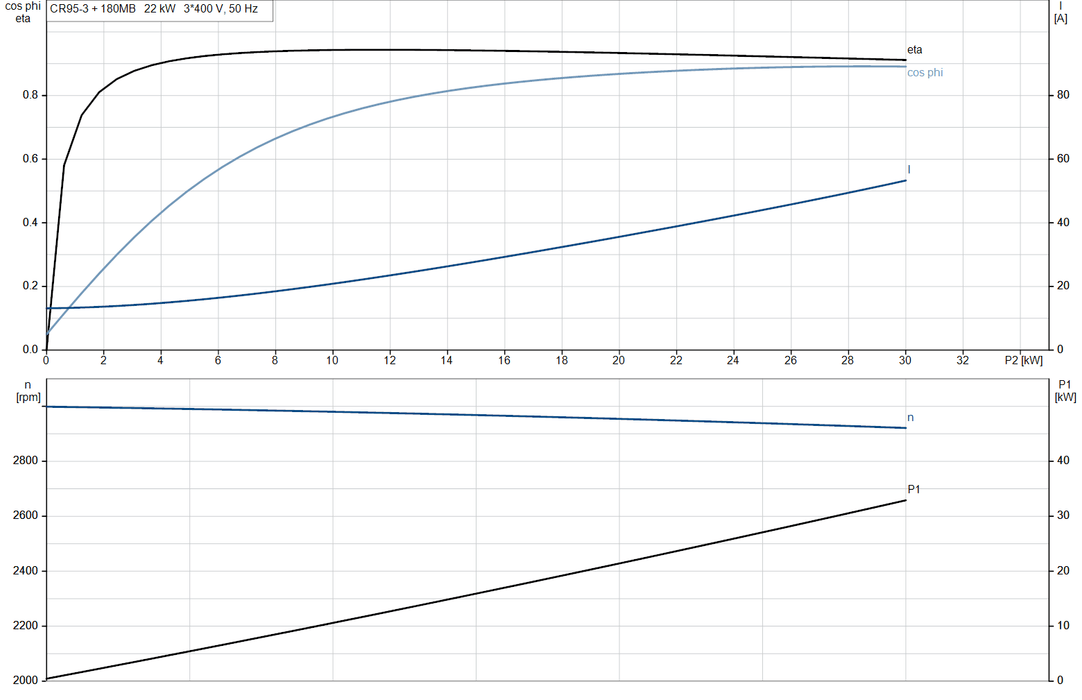

| Motor Power (P2) | 22 kW |
| Voltage | 3 × 380–415D / 660–690Y V |
| Frequency | 50 Hz |
| Rated Current | 39.5 / 22.8 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 92.7 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 233 / 296 kg |
| Shipping Volume | 1.14 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, ACS |
Documentation & Downloads
| Product Datasheet — CR 95-3 A-F-A-E-HQQE | Download |
