Grundfos CR 95-2-2 A-F-A-E-HQQE Vertical Multistage Centrifugal Pump – 99141737 (3 x 380-415D/660-690YV)
📢 For orders over $100, FREE Shipping Australia-wide

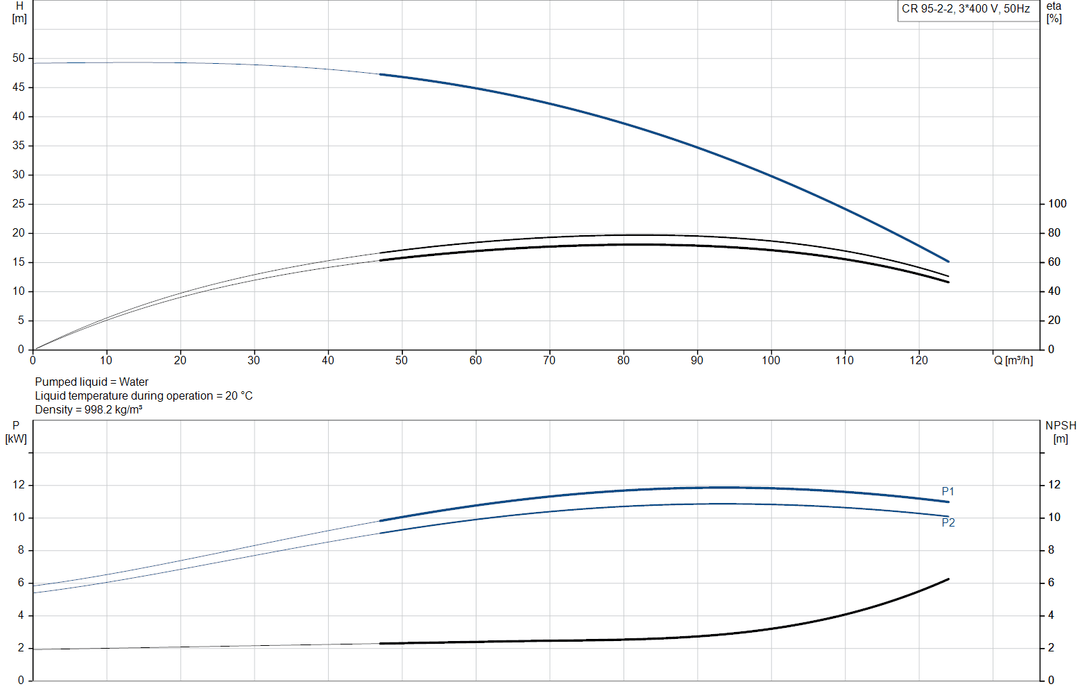

Vertical, multistage centrifugal inline pump (CR 95-2-2 A-F-A-E-HQQE) with suction and discharge ports on the same level, engineered for high-flow, high-head water transfer and pressure boosting applications. The pump head and base are made of ductile cast iron, while all wetted parts are stainless steel (EN 1.4301 / AISI 304) for durability and corrosion resistance. It delivers a rated flow of 95 m³/h with a rated head of 32.6 m (maximum 49.3 m) at approximately 2950 rpm. The HQQE single cartridge shaft seal provides reliable, low-maintenance operation. Pipe connections are DN 100 DIN PN16 flanges, and the pump is driven by an 11 kW, 3-phase IEC IE3 fan-cooled asynchronous motor (380–415 V Δ / 660–690 V Y, 50 Hz, IP55, Class F).
Suitable Applications
- Commercial heating and air conditioning systems
- Commercial water pressure boosting
- District heating and cooling
- Industrial water supply and wastewater handling
- Industrial process water treatment and transfer
- Desalination and reverse osmosis systems
- Drinking water treatment and distribution
- Surface water intake and groundwater transfer
- Irrigation and agriculture systems
- Solar water supply and boosting solutions
- Community water supply
- Rotor, spray, and pivot irrigation
- Machining wash and clean processes
- Livestock watering with solar solutions
Key Specifications
| Product Name | CR 95-2-2 A-F-A-E-HQQE |
| Product Number | 99141737 |
| EAN | 5712607527174 |
| Pump Type | Vertical Multistage Centrifugal |
| Rated Flow | 95 m³/h |
| Rated Head | 32.6 m |
| Maximum Head | 49.3 m |
| Speed (Pump Data) | 2950 rpm |
| Stages / Impellers | 2 / 2 |
| Reduced-Diameter Impellers | 2 |
| Shaft Seal | HQQE (Single cartridge) |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 16 bar |

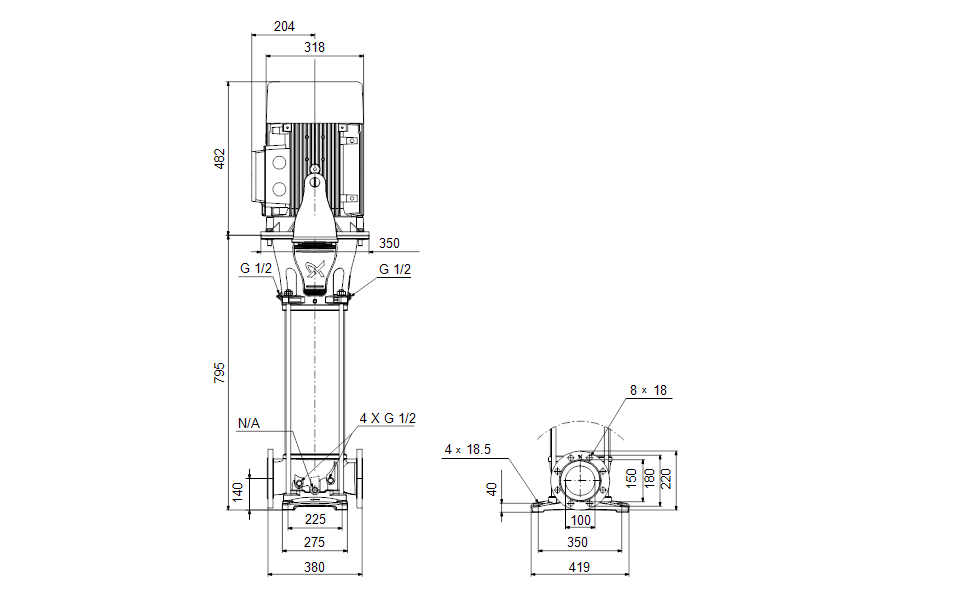

| Connections | DN 100 / DN 100, DIN PN16 flanges |
| Base / Head Material | Ductile cast iron (EN-GJS-500-7) |
| Impeller Material | Stainless steel (EN 1.4301 / AISI 304) |
| Bearing | WC/WC with Graflon support bearing |

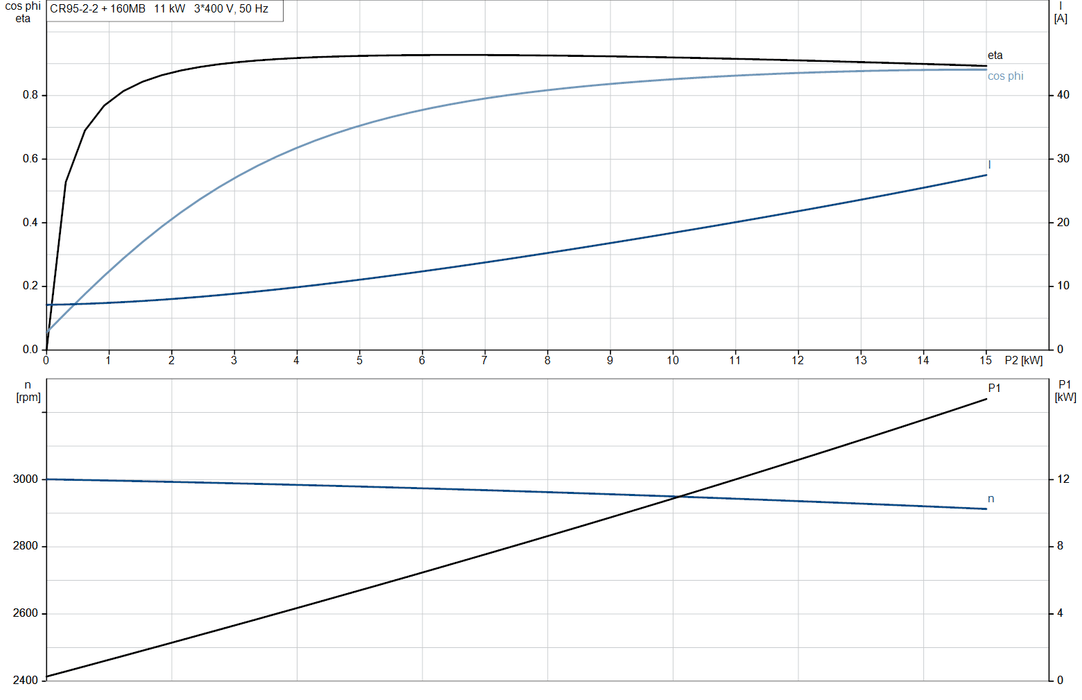

| Motor Power (P2) | 11 kW |
| Voltage | 3 × 380–415 V (Δ) / 660–690 V (Y) |
| Frequency | 50 Hz |
| Rated Current | 20.8–19.8 A / 12.0–11.8 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 91.2 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 187 / 230 kg |
| Shipping Volume | 0.611 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, ACS |
Documentation & Downloads
| Product Data Sheet – CR 95-2-2 A-F-A-E-HQQE | Download |
