Grundfos CR 5-2 A-A-A-E-HQQE Vertical Multistage Centrifugal Pump – 96516975 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516975
Original price
$1,005.13
-
Original price
$1,005.13
Original price
$1,005.13
$1,005.13
-
$1,005.13
Current price
$1,005.13
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 5-2 A-A-A-E-HQQE is a vertical, non-self-priming, multistage, in-line centrifugal pump designed for installation in pipe systems and mounting on a foundation. The pump head and base are made of cast iron, while impellers and intermediate chambers are manufactured from stainless steel (EN 1.4301). Power transmission is via a cast iron split coupling, and pipework connection is via oval / Rp flanges. The pump is fitted with a 3-phase AC motor.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating and cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Groundwater transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Number | 96516975 |
| EAN Number | 5700396753805 |
| Pump Type | Vertical multistage centrifugal (inline) |

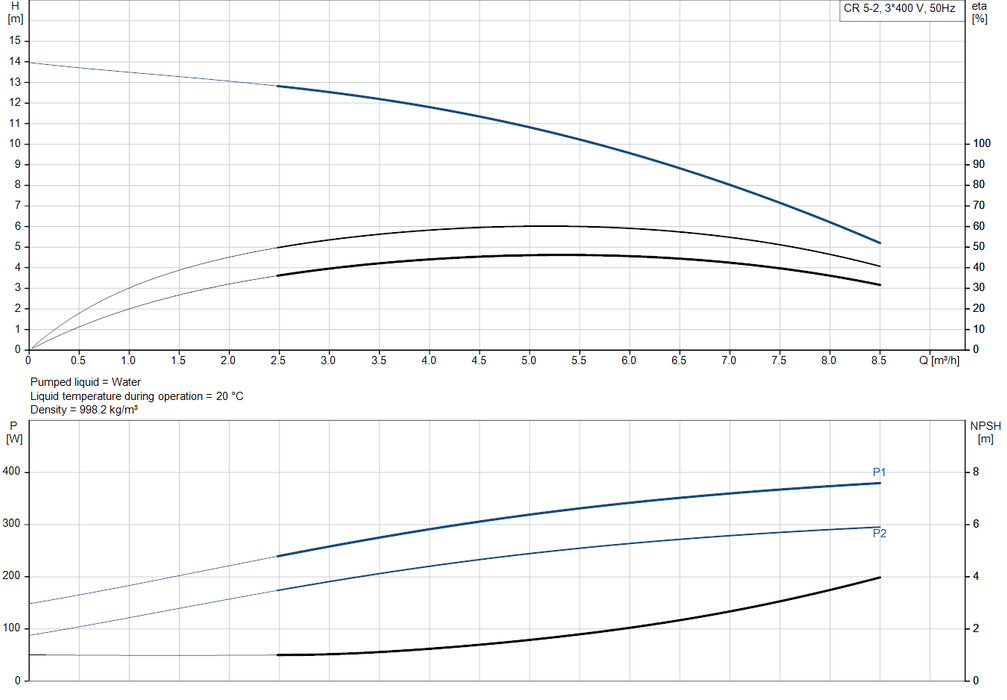

| Rated Flow | 5.8 m³/h |
| Rated Head | 9 m |
| Maximum Head | 14.3 m |
| Stages / Impellers | 2 / 2 |
| Pump Speed (Data Basis) | 2873 rpm |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 16 bar |
| Shaft Seal | HQQE (Single) |
| Base Material | Cast iron (EN-GJL-200) |
| Impeller Material | Stainless steel (EN 1.4301 / AISI 304) |

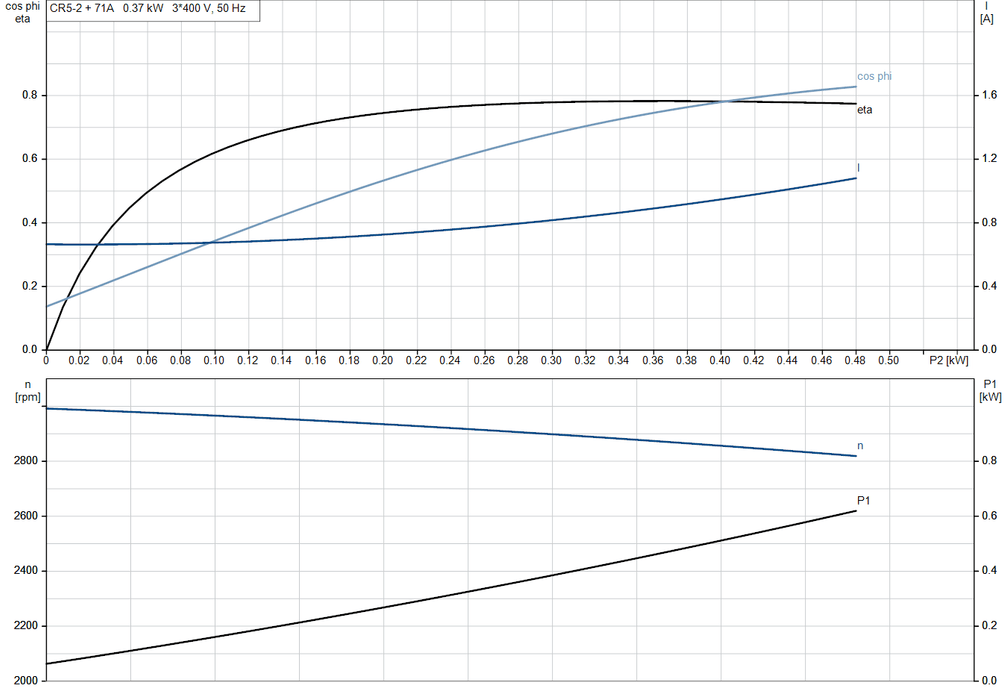

| Motor Power (P2) | 0.37 kW |
| Rated Voltage | 3 × 220–240D / 380–415Y V, 50 Hz |
| Motor Efficiency Class | IE3 |
| Connection Type | Oval / Rp |
| Connection Size | 1 1/4 inch inlet / outlet |
| Connection Pressure Rating | PN 16 |
| Motor Flange Size | FT85 |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Drinking Water Approvals | WRAS, ACS |
| Net Weight | 18.4 kg |
| Gross Weight | 21 kg |
| Shipping Volume | 0.054 m³ |
| Country of Origin | TW |
| Price | AUD 1462 |
Documentation & Downloads
| Product Data Sheet (PDF) | Download |
